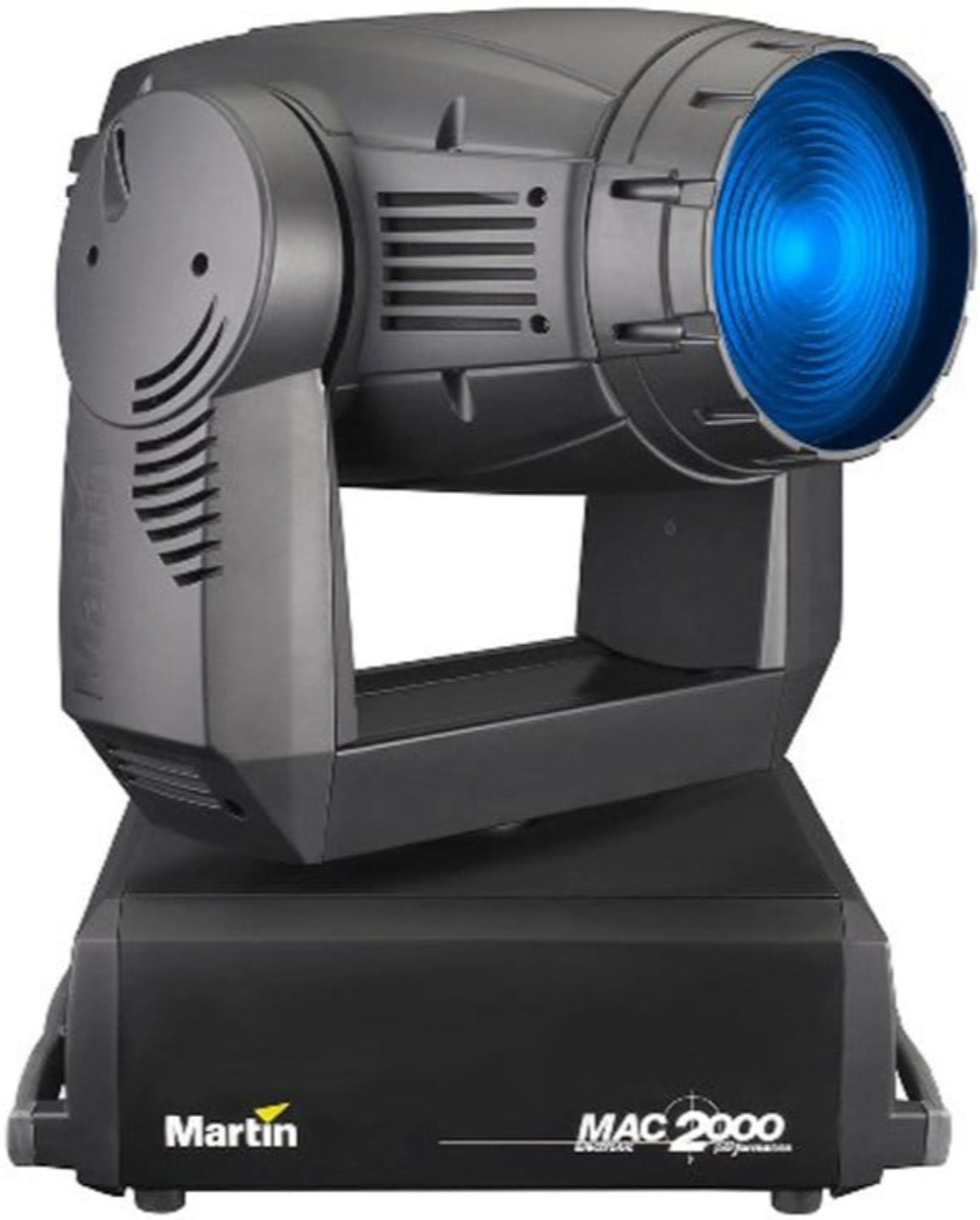

Martin MAC 2000 Wash Moving Light Wash

Martin MAC 2000 Wash Moving Light Wash

The MAC 2000 Wash is the industry´s wash light of choice. It is exceptionally powerful with a clean, even, soft-edged beam, a motorized zoom and rich CMY color mixing supplemented with two color wheels.

Features:

• 1200 W short arc discharge lamp
• CMY color mixing system
• 2 x 4 position color wheels plus open
• Variable CTC
• Strobe effect up to 10 Hz, pulse effects, instant open and blackout
• Motorized zoom
• Lens Options: PC, Fresnel and super-wide (all included) and micro-Fresnel
• Mechanical dimming
• 12.5-95° beam angle
• Pan and tilt range of 540°/267°
• Modular design for easy maintenance and servicing
• Electronic ballast with hot lamp restrike and flicker free light
• Variable fan control for quieter operation

Specifications:

• Physical
  • Length: 408 mm
  • Width: 490 mm
  • Height: 750 mm, head straight up
  • Weight: 34 kg
• Dynamic Effects
  • Color mixing: CMY, independently variable 0 - 100%
  • Color correction: 0 - 178 mireds, continuously variable
  • Color wheel: 2 wheels, each with 4 interchangeable filters + open position
  • Mechanical dimmer: 0 - 100%
  • Shutter: Strobe effect up to 10 Hz, pulse effects, instant open and blackout
  • Zoom: Motorized
  • Hyper mode: Narrow beam with diffuser removed
  • Pan: 540°
  • Tilt: 267°
• Control and Programming
  • DMX channels: 19/21
  • Setting and addressing: Control panel with LED display
  • 16-bit control: Pan & tilt
  • Movement control options: Tracking and vector
  • Protocol: USITT DMX512/1990
  • Receiver: Opto-isolated RS-485
  • Firmware update: Serial upload via DMX link
• Lamp
  • Type: 1200 W short-arc discharge
  • Fitted as standard: Philips MSR 1200 SA/DE Gold
  • Color temperature: 6000 K
  • CRI (Color rendering index): >85
  • Average lifetime: 750 hours
  • Hot restrike: Yes
  • Socket: Double-ended SFc 10-4 with key
  • Ballast: Electronic
  • Approved alternative lamp(s): Osram HTI 1200 D7/60 SharXS
• Optics
  • Beam angle: PC lens 12.5° - 37°, Fresnel lens 13° - 40°, multi-array super-wide lens 80° - 95°, 1/10 peak angles, with 50 mm (2.0 in.) aperture
• Construction
  • Color(s): Black
  • Housing: UV-resistant fiber-reinforced composite
  • Reflector: Glass, cold light
  • Protection rating: IP20
• Installation
  • Mounting points: 4 pairs of 1/4-turn locks, 45° orientation possible
  • Orientation: Any
• Connections
  • AC power input: 3 m integral cable without power plug
  • DMX data in/out: 3-pin and 5-pin locking XLR
• Electrical
  • AC power: 100-120/208-240 V nominal, 50/60 Hz
  • Power supply unit: Auto-ranging electronic switch-mode
  • Main fuse: 15 AT (x 2, for use with 208-240 V power)
  • Main fuse: 20 AT (x 2, for use with 100-120 V power)
• Typical Power and Current
  • 100 V, 60 Hz: 1580 W, 19.8 A, PF 0.815
  • 120 V, 60 Hz: 1520 W, 17.7 A
  • 208 V, 60 Hz: 1450 W, 10.2 A
  • 220 V, 50 Hz: 1445 W, 9.1 A, PF 0.699
  • 230 V, 60 Hz: 1460 W, 9.4 A
  • 250 V, 50 Hz: 1450 W, 8.8 A
  • Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
• Thermal
  • Cooling: Filtered forced air (temperature-regulated)
  • Maximum ambient temperature (Ta max.): 40° C
  • Maximum surface temperature, steady state, Ta=40° C: 140° C
  • Total heat dissipation (calculated, +/- 10% at 110 V, 60 Hz / 230 V, 50 Hz): 5290 / 5050 BTU/hr.
• Approvals
  • EU safety: EN 60598-2-17
  • EU EMC: EN 55 015, EN 55 103-1, EN 61 547
  • US safety: UL 1573
  • Canadian safety: CAN/CSA E60598-1, CAN/CSA E598-2-17
• Included Items
  • Philips MSR 1200 SA/DE Gold lamp (installed): 97010310
  • Front module with Fresnel lens (installed): 55203003
  • Front module with PC lens: 55203006
  • Front module with super wide-angle lens: 55203012
  • 30 mm aperture ring: 23807480
  • 40 mm aperture ring: 23807460
  • 45 mm aperture ring: 23807470
  • Two Omega clamp attachment brackets with 1/4-turn fasteners: 91602001
  • User manual: 35000114
• Accessories
  • MAC 2000 Wash XB Upgrade Kit: 91310980
  • MAC 2000 Wash + XB Beam Kit: 91610103
  • MAC 2000 Wash Dimmer Wheel: 62324018
  • Micro-Fresnel lens (very narrow beam angle): 91610092
  • T-shaped omega bracket with quarter-turn fasteners: 91602008
  • G-clamp: 91602003 Half-coupler clamp: 91602005
  • Quick trigger clamp: 91602007
  • Super Truss 20.5" mounting plate with half-couplers: 91602014
  • Swing-wing truss mounting plate with half-couplers: 91602010
  • Double flightcase (SIP) for MAC 2000 Series: 91510170
• Spare Parts
  • Philips MSR 1200 SA/DE Gold lamp: 97010310
  • 15 AT main fuse: 05020039
  • 20 AT main fuse: 05020040
• Ordering Information
  • MAC 2000 Wash in single flightcase: 90203010
  • MAC 2000 Wash in cardboard box: 90203015
  • P/N 90203000 (MAC 2000 Wash in 2-unit flightcase) is replaced by P/N 90204000 (MAC 2000 Wash XB in 2-unit flightcase):
