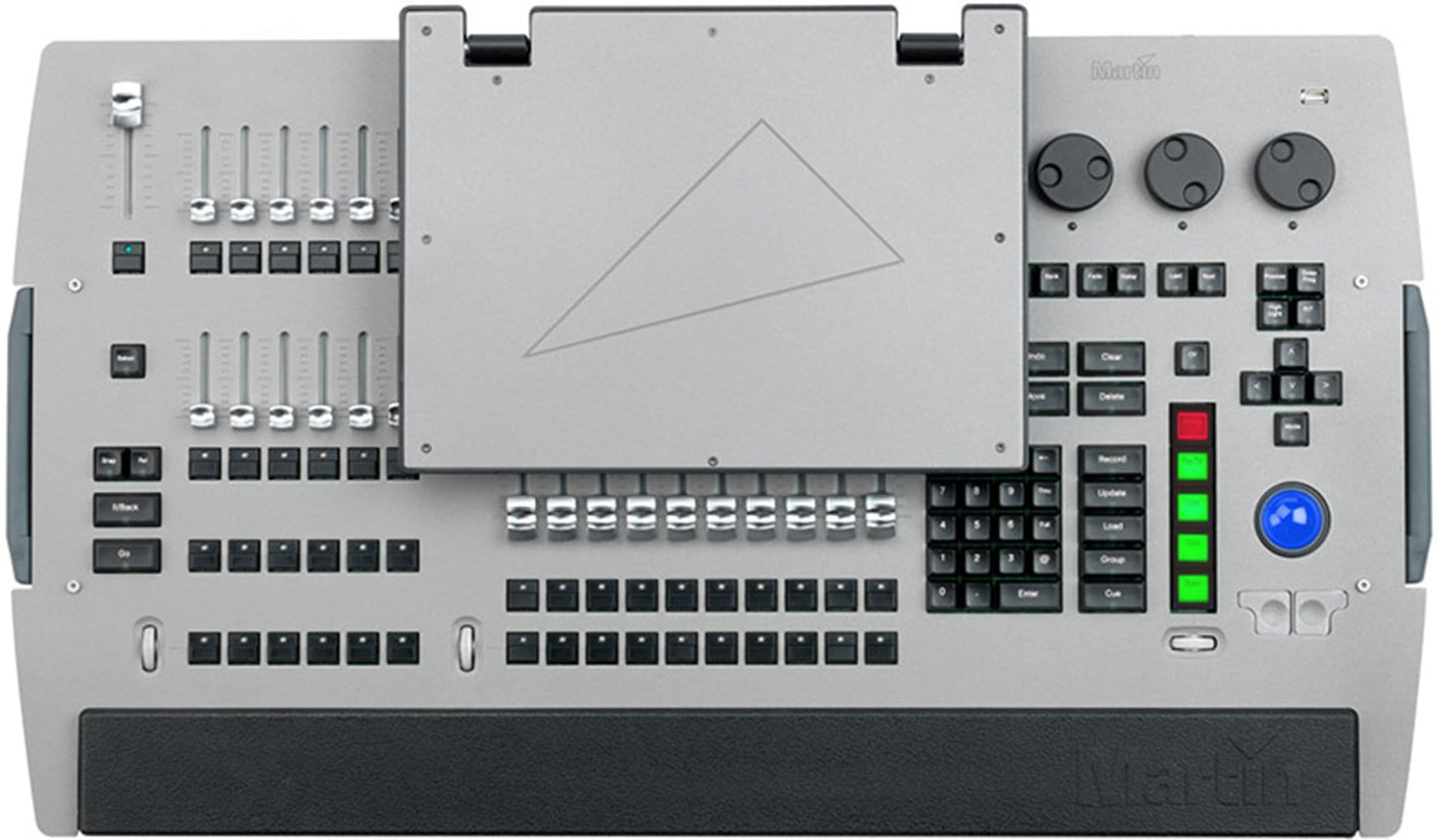

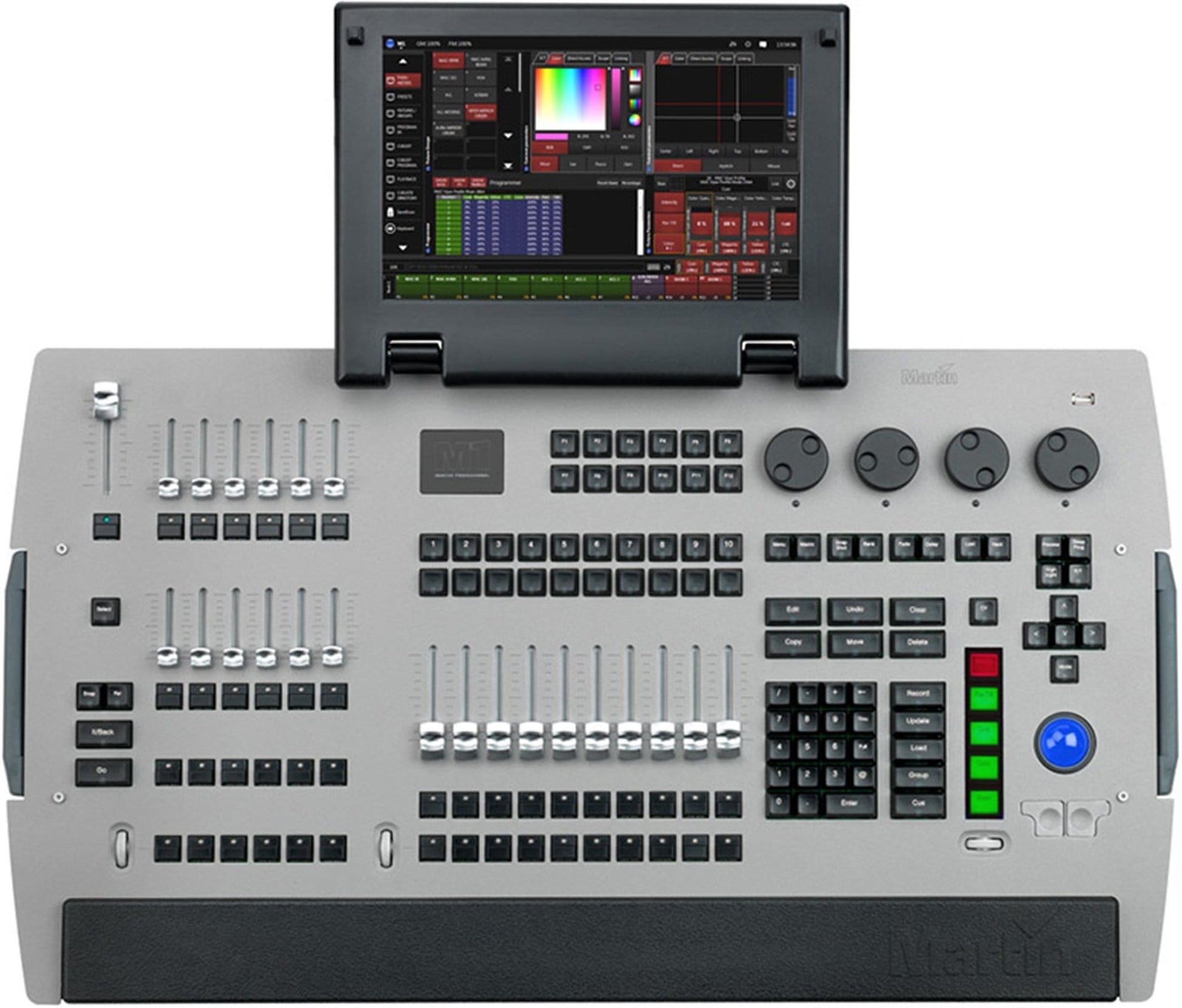

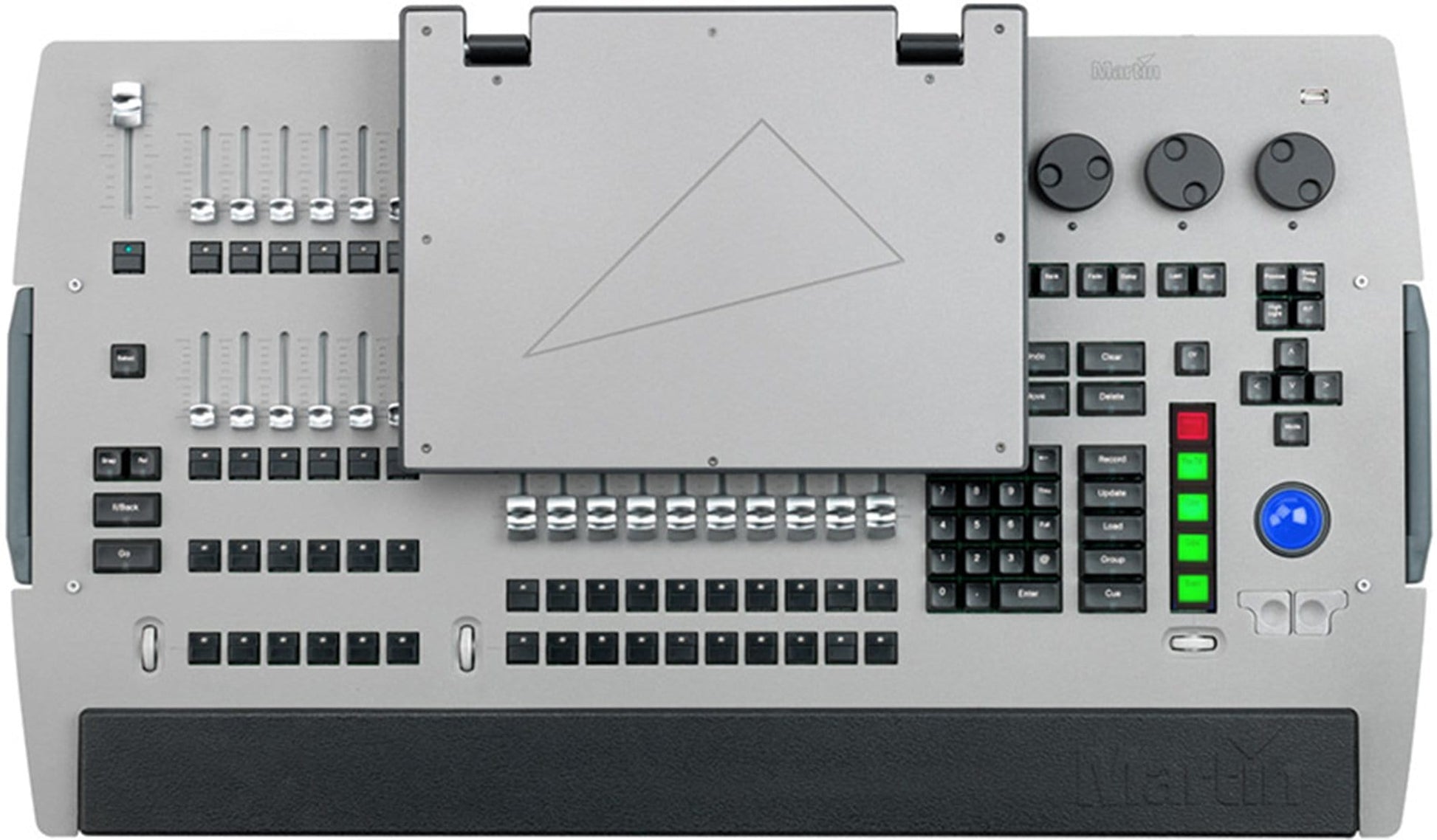

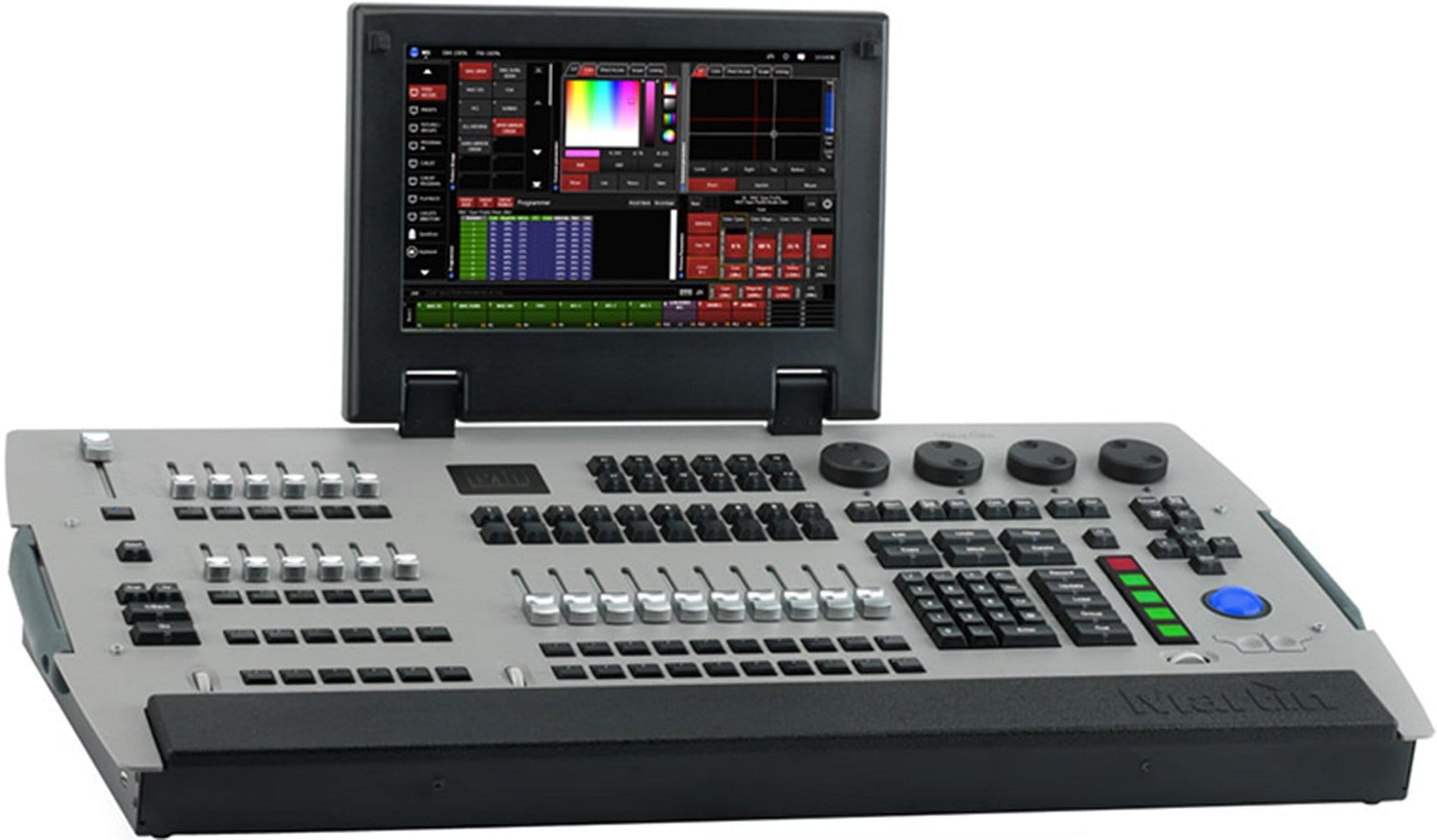

Martin M1 Lighting Console
M1 is the previous generation lighting controller from Martin Professional. With the full power of a larger desk and the agility of a smaller one, it is a state-of-the-art all-in-one lighting desk.
Features:
- High resolution folding touchscreen
- Digital LCD buttons for fast and direct parameter access
- Multiple wing attachment (M-Series Modules)
- 4x DMX Universes direct from the console; up to 32 Universes with Art-Net /sACN
- M-Series Manager Software for programming and triggering via time and calendar schedules
- Customizable Graphical User Interface with context sensitive toolbars and integrated help menu
- Powerful effects engine
- Controls up to 16.536 parameters
- 1000 cuelists with fader control
- 1000 cuelists with playback control buttons
- Two separate playback sections
- Parallel execution of multiple cuelists
- Submaster, inhibitives and override functionality
- Parameter and time-fanning functionality
- Auto update for presets and cues
- On-the-fly global timing adjustments
Specifications:
- Physical
- Length: 823 mm (32.4 in.)
- Width: 464 mm (18.3 in.)
- Height: 178 mm (7.0 in.) closed; 395 mm (15.6 in.) open
- Weight: 14.4 kg (31.8 lbs.)
- Shipping weight (in cardboard box): 19.9 kg (43.9 lbs.)
- Shipping weight (in flightcase): 32.7 kg (72.1 lbs.)
- Control and Programming
- Protocol: DMX512A (RDM), Art-Net2, sACN
- 32 DMX universes
- 8192 parameters
- No limit to number of DMX channels per fixture
- Extensive fixture library for all known manufacturers
- 65000 presets for each group of functions (P/T, color, gobo, etc.)
- Effect generator for automated programming of complex effects
- Relative or absolute programming
- Fan function for all channels (including timing parameters)
- On-the-fly global timing changes
- Virtual cuelists
- Macros
- Wait, follow and link cues
- HTP, LTP, chase, timecode, submaster and group master playback
- functionality
- Individual parameter timings
- Intuitive patch feature
- Fixture type cloning
- All channels with 16-bit resolution
- Control/User Interface
- Main playback:
- 10 x 60 mm playback faders, each with four function-assignable buttons
- Sub playback:
- 24 x playbacks
- 12 x 40 mm playback faders with one assignable button
- 12 x single assignable buttons
- Other controls:
- 2 x scrollwheels for bank changes
- 12 x customizable multi-function keys
- Playback Select button
- Master Go section with Go, Pause, Snap and Release
- Four digital rotary encoders with push function and status LED for fixture parameter control
- 5 x dynamically labeled digital LCD buttons for parameter groups, effect parameters, fanning and global timings
- Grand master fader and button
- Blind/preview button
- Customizable highlight/lowlight function
- Customizable parameter defaults
- Next/last fixtures/groups
- Trackball with pan/tilt control switch
- Left/right mouse button
- Large command keys

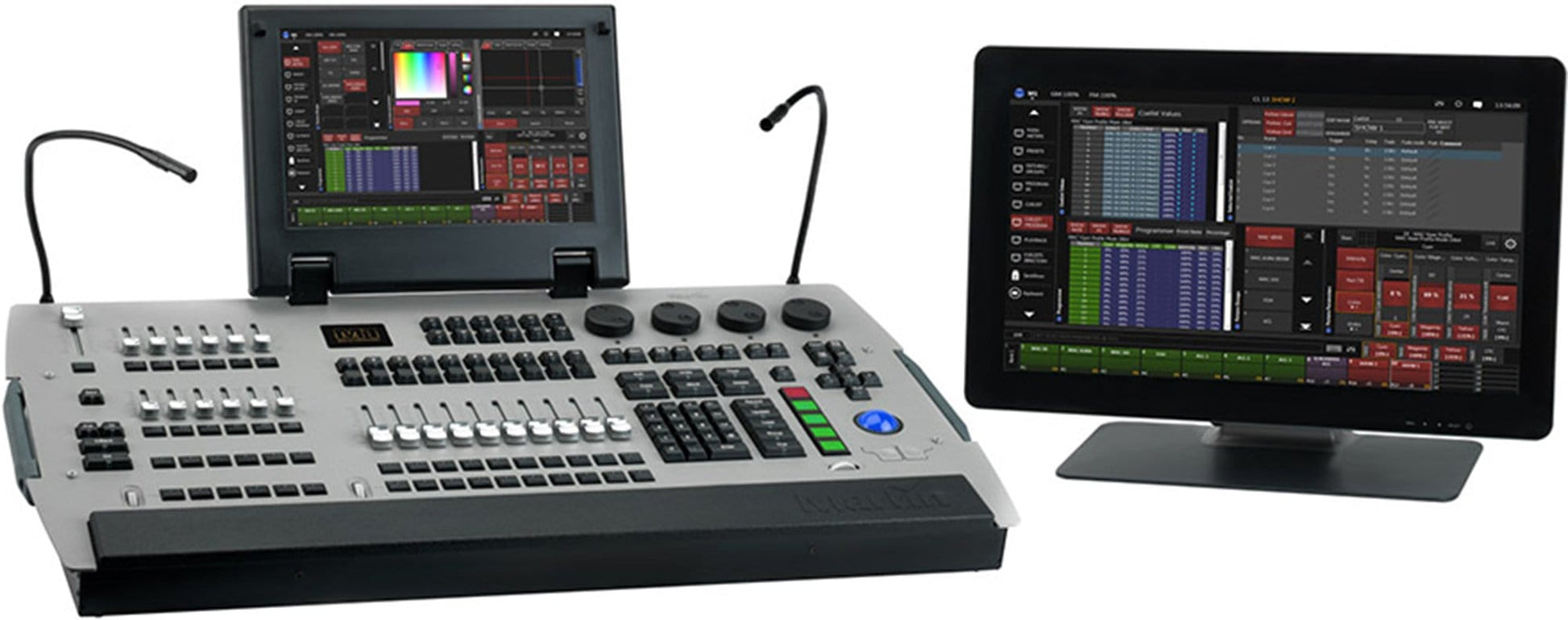

- Optional external monitor screen: Resolution up to 1920x1200
- Playback
- Assign a cue, cuelist or effect to any playback fader
- 100 x playback banks, each containing 10 x playbacks
- 100 x sub playback banks, each containing 24 x playbacks
- 100 x sub playback banks, each containing 24 x playbacks
- No limit to cues per cuelist
- Full 16-bit fading for high-resolution fixtures
- Individual fade in/fade out times for all playbacks
- Manual override available at all times
- Live 0-1000% override of global cue timings
- Live programmer timing (“Sneak”)
- Cuelists can be executed in tracking or non-tracking mode
- Hardware
- Industrial 13.1-inch TFT 16:9 touchscreen (1280 x 800 pixels)
- Internal SATA 2.5” hard disk drive
- Modular construction
- Industrial motherboard with Intel processor
- 2 GB RAM
- Integrated graphics
- 2 x dimmable XLR desk lamp connections
- Connections
- Industrial embedded OS
- OS installation by USB storage device
- Show backup on hard disk or USB storage device (not included)
- Support for ELO USB touchscreens

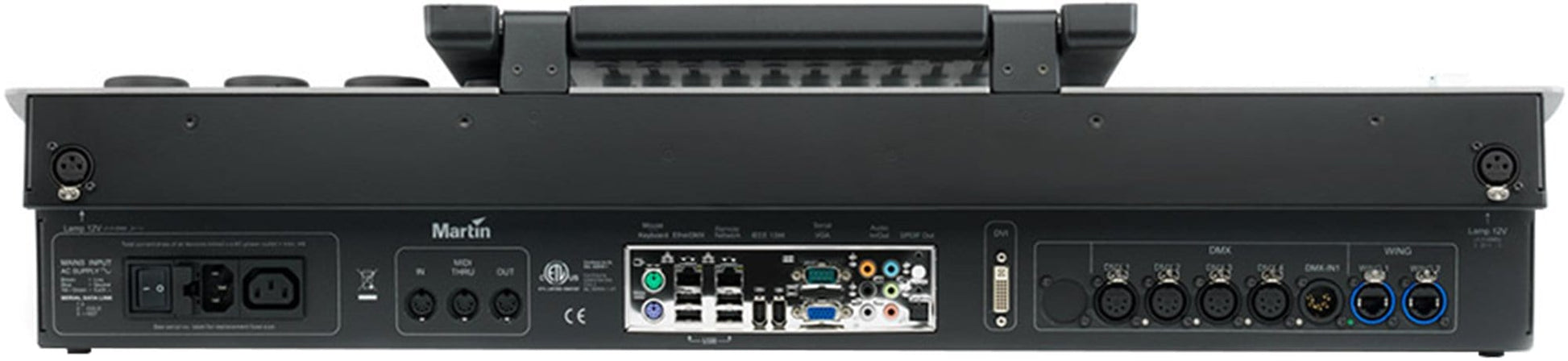

- Connections
- 4 x DMX universe outputs: 5-pin locking XLR
- External monitor screen: VGA or DVI
- Art-Net / sACN for up to 32 DMX universes in total: RJ-45
- MaxNet controller link: RJ-45
- 2 x M-Series Module interfaces: RJ45 Ethercon
- MIDI in/out/thru (MIDI show control, MIDI notes, MIDI timecode):
- Optional
- 2 x desk lamps: XLR
- AC power input: 3-pin IEC
- AC power throughput: 3-pin IEC (6 A max.)
- USB (storage media/hardware peripherals)
- Back of mainboard: 4 x USB 3.0
- Side of console: 2 x USB 2.0
- Front of console: 1 x USB 2.0
- Electrical
- AC power: 100-240 V nominal, 50/60 Hz
- Typical Power and Current
- 0.75 A, 80 W
- Included Items
- 1.5 m power cable, EU (Schuko), 3-pin IEC: P/N 11501012
- 1.5 m power cable, US, 3-pin IEC: P/N 11501502
- Martin ShowDesigner 6™ Lite 3D Visualizer 180-day trial
- User documentation CD
- Accessories
- Martin M-Sync™ SMPTE USB Interface Box: P/N 90703020
- USB-MIDI Port Internal Module: P/N 91613038
- LED desklight, angular XLR, 18.5": P/N 91613037
- Dust cover for M1: P/N 91613070
- Flightcase for M1: P/N 91535070
- Martin™ M-PC 2U with Martin™ M-DMX: P/N 90737070
- Related Items
- M-Series Submaster Module: P/N 90732170
- M-Series Playback II Module: P/N 90732190
- Martin™ M-Touch: P/N 90737040
- Martin™ M-Play: P/N 90737030
- Ordering Information
- Martin M1 ts™ Console: P/N 90732040
