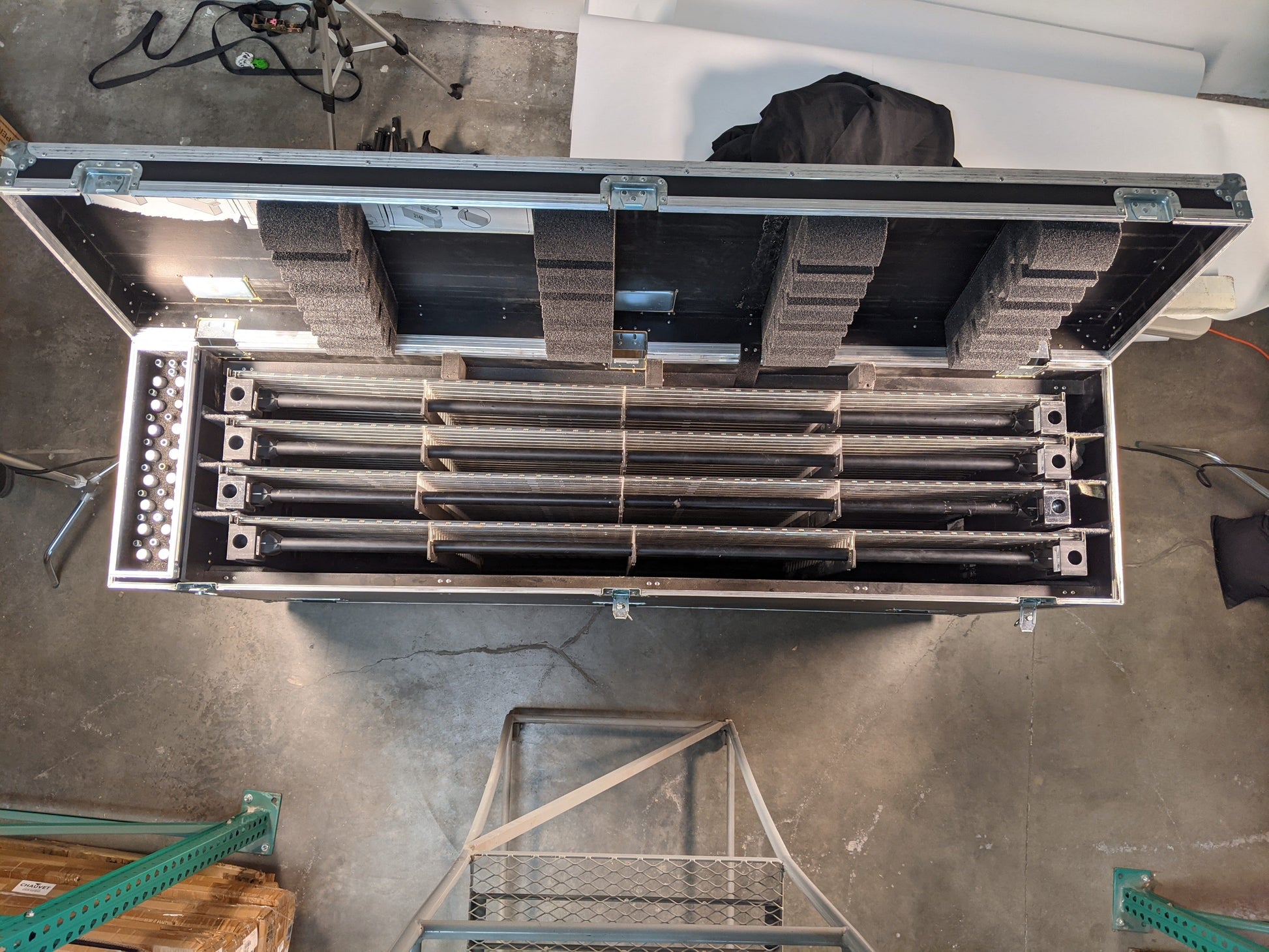

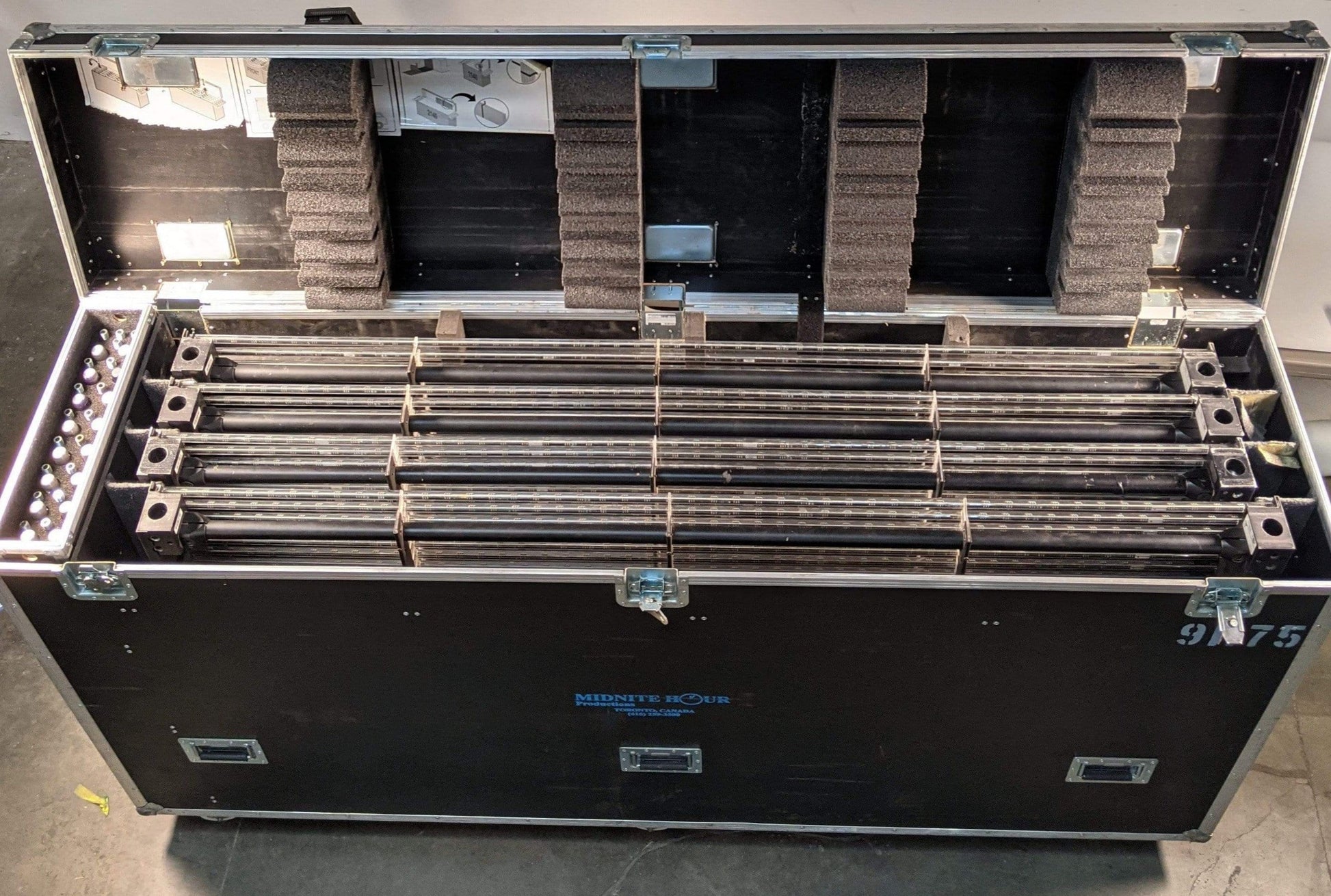

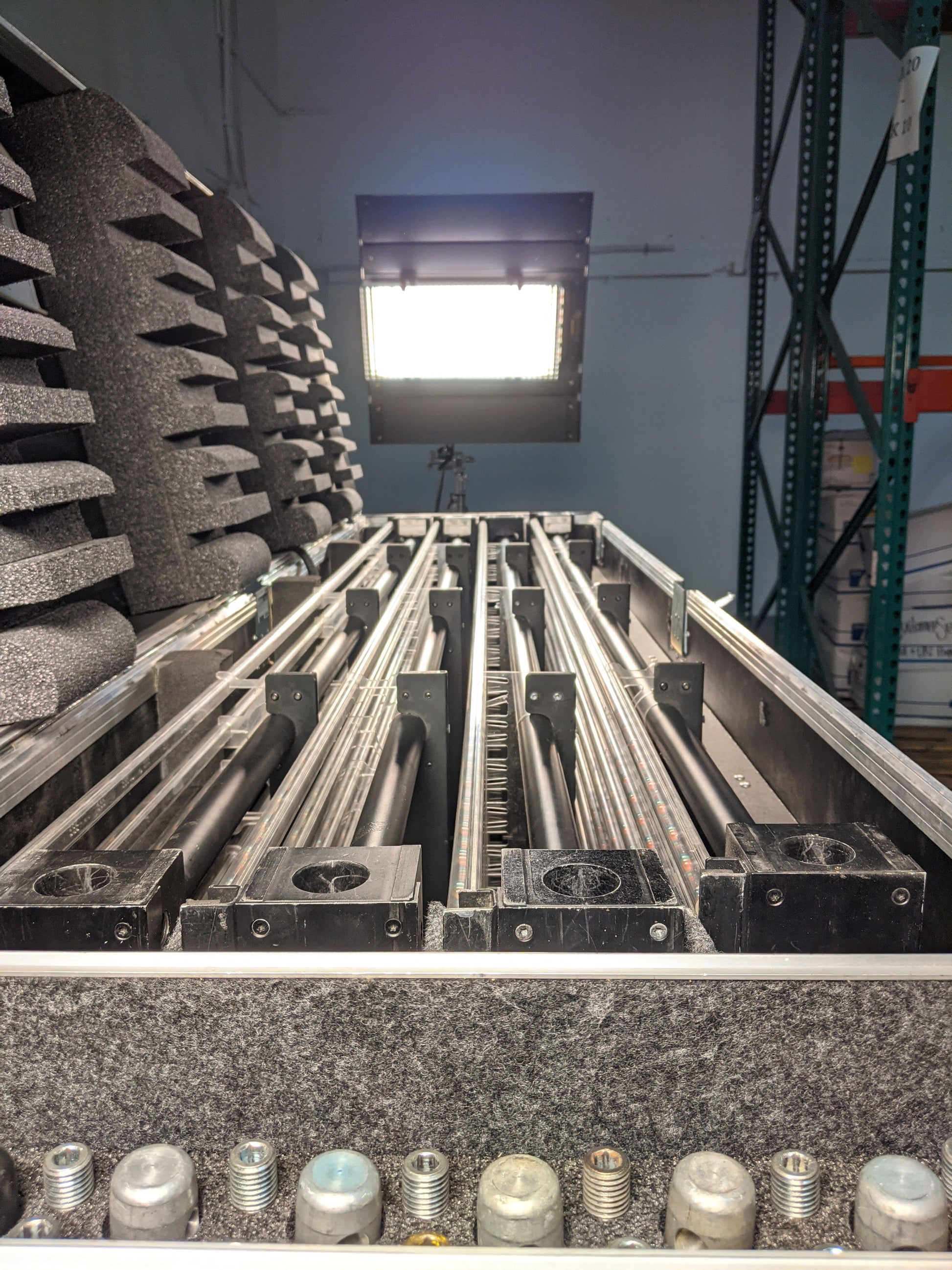

Martin LC1140 LED Panel 4-Pack with Road Case

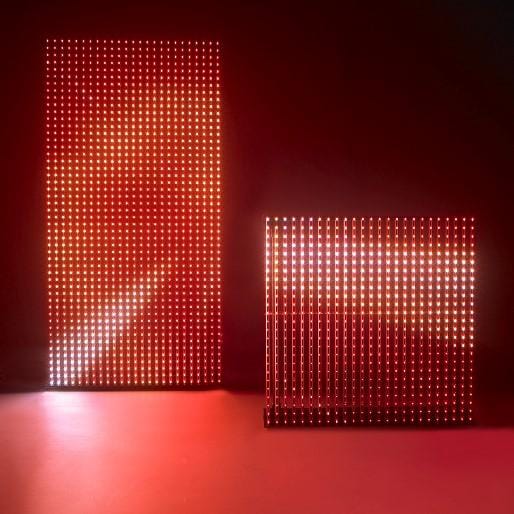

The LC Series is a semi-transparent, modular system of LED panels, perfect for displaying video and images. Designed for stage shows, TV studios and other commercial applications, the LC closely integrates light, video, and set design, offering entirely new possibilities for staging.
Features
- Extremely bright, 1800 NITs (cd/m2)
- Unique semi-transparent design
- Genlock feature for preventing light-flicker in TV applications
- Daisy-chain set-up with DVI-D connection (up to 6 modules per link)
- Simple, familiar assembly in truss mount format
- Units can be evenly joined for a seamless image
- All-in-one solution, with no external power supplies or drivers
- Light weight modules, easy to handle, cutting cost and time
- 40 mm pixel pitch (seamless image at about 30m)
Specifications
Physical Dimensions
Length: 1000 mm
Width: 105 mm
Height: 1004 mm
Weight: 14.3 kg
Control and Programming
Setting and addressing: DIP switch, LC Software
Photometric Data
Light source: 5 mm oval LED
Total output (max.): 1800 Cd/m2 (1800 nits) measured outside LED tubes, Ta 25° C
Resolution, one fixture: 25 x 25 pixels (LC 1140), 25 x 50 pixels (LC 2140)
Pitch (pixel center-to-center): 40 mm Pixels per m2: 625Red dominant wavelength: 627.5 nm ± 2.5 nm Green dominant wavelength: 522.5 nm ± 2.5 nm Blue dominant wavelength: 472.5 nm ± 2.5 nm
Color resolution: 14 bits per color Viewing angle: >100° horizontal, >40° vertical at 50% intensity
Video Processing
Video signal processor: Integrated Video signal: XGA 1024 x 768 DVI-D (digital single link), 25x25 (LC 1140) or 25x50 (LC 2140) pixels displayed
Video signal frequency: 50 or 60 Hz
Genlock: Yes (via Martin DVI buffer box)
Construction
Panel frames: Steel and aluminum
LED tubes: Acrylic LED tubes per panel: 25Transparency through panel (unmasked area): >60%
Color: Black panel frames Protection rating: IP20
Installation
Orientation: Any

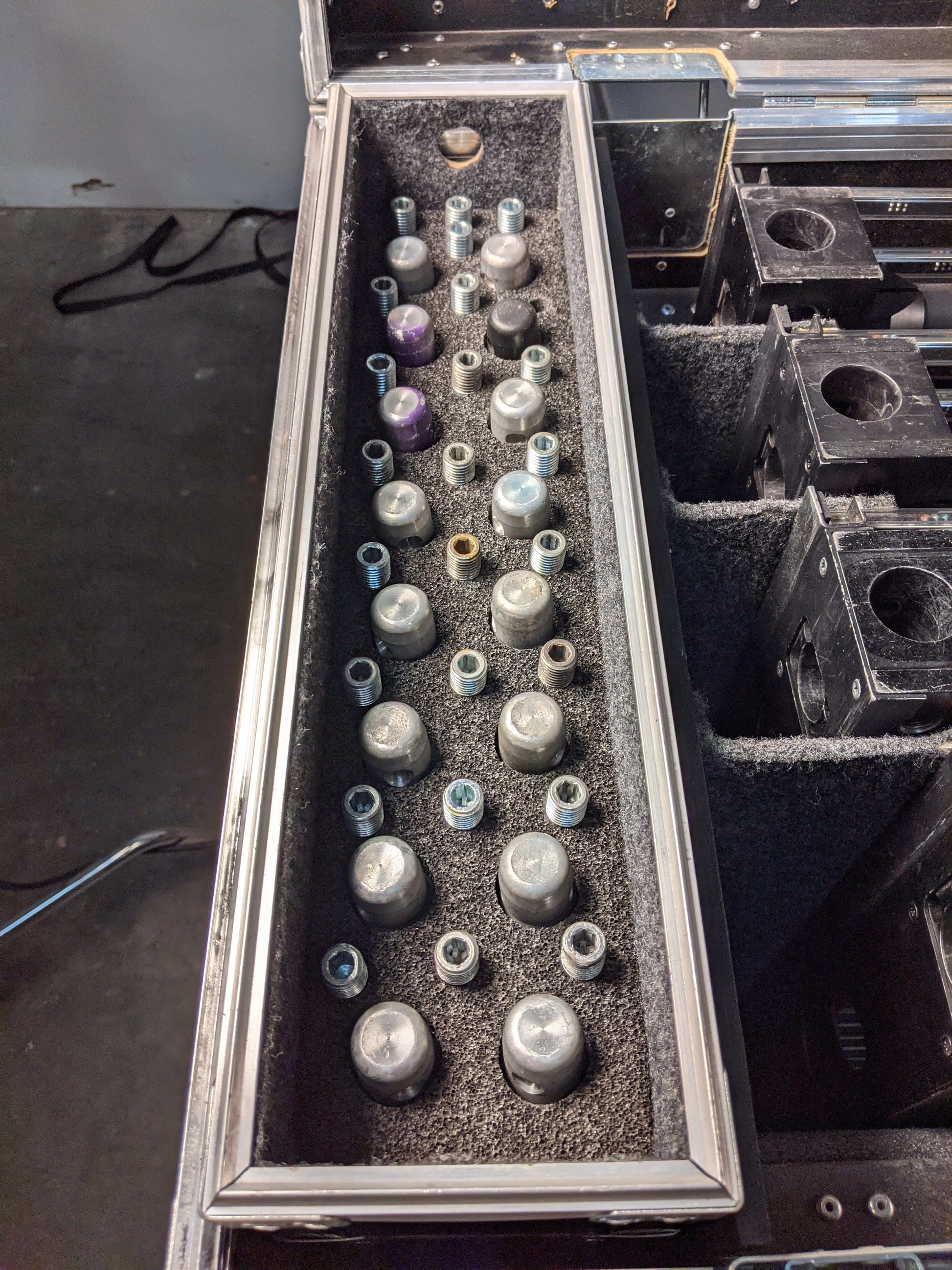

Panel interlocking: Prolyte CCS6 conical coupler system
Connections
Power in/out: Neutrik PowerCon Video in/out: DVI-D single link (DVI-I dual link connectors provided)
