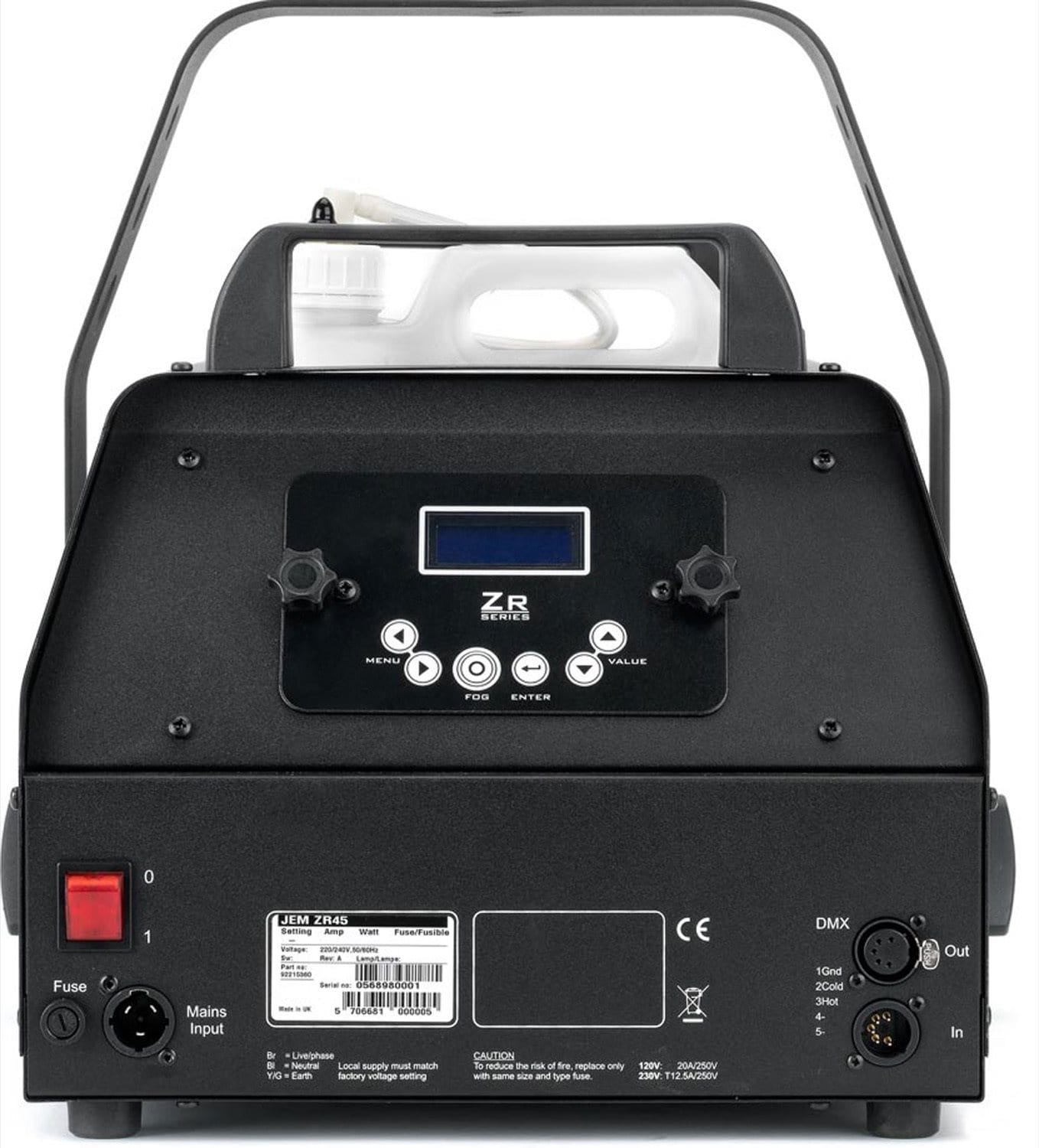

Martin JEM ZR45 High Endurance Fog Machine
The JEM™ ZR45 is a high-end fog machine designed to deliver superior and uninterrupted performance in demanding professional applications. Via its enhanced and powerful 2,000 W heat exchanger, the JEM ZR45 produces an exceptional peak output ideal for major venues and stages in both install and rental markets.
The rugged yet weight-optimized JEM ZR45 also features variable output control for more subtle effects and is fully up-to-date with digital remote, DMX and RDM.
The entire JEM ZR range is compatible with a wide range of JEM Pro fog fluids. As machines designed and built to last, the JEM ZRs will continue to perform with great output and low consumption.
Features:
- 2,000 W (EU model) / 1,800 W (US model) heat exchanger
- 80 ml in 30 seconds peak performance
- 1300 m³/min fog output
- Variable output control for subtle effects
- 9-10 minute warm-up time
- Digital remote, DMX and RDM
- Compatible with a wide range of JEM Pro fog fluids
- Floor standing or truss mounting (bracket included)
- PowerCON TRUE1
- 5-liter bottle
Specifications:
- Length: 602 mm (23.1 in.)
- Width: 395 mm (15.6 in.)
- Height: 306 mm (12.1 in.)
- Height including hanging bracket: 393 mm (15.5 in.)
- Weight, dry: 17.7 kg (39.1 lb.)
- Weight, filled: 22.7 kg (50 lbs.)
- Control options: Integrated digital remote control, DMX, master/slave link mode, optional PLC interface Control parameters:
- Continuous or timer-controlled output
- Fog: Variable output control, 0-100%
- DMX channels: 1
- DMX compliance: ANSI E1.11 - USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20 RDM
- Housing: Steel and aluminum
- Hanging bracket: Integrated yoke w/safety attachment point
- Color: Black
- Heat exchanger (US model): 1800 W, thermally protected
- Heat exchanger (EU model): 2000 W, thermally protected
- Fluid pump: Dual oscillating piston, high pressure
- Fluid management: Fluid out sensing, sealed for transportation
- Fluid reservoir: 5 l drop-in reservoir with quick-connect fitting
- External fluid control: Fluid sensing
- Remote control: Integrated Digital Remote with 3 m cable, 3-pin XLR
- Maximum ambient temperature (Ta max.): 40° C (104° F)
- Exterior surface temperature, steady state: 30° C (86° F)
- Max. nozzle temperature: 290° C (554° F)
- Minimum ambient temperature (Ta min.): 5° C (41° F)
- Length: 602 mm (23.1 in.)
- Width: 395 mm (15.6 in.)
- Height: 306 mm (12.1 in.)
- Height including hanging bracket: 393 mm (15.5 in.)
- Weight, dry: 17.7 kg (39.1 lb.)
- Weight, filled: 22.7 kg (50 lbs.)
- Control options: Integrated digital remote control, DMX, master/slave link mode, optional PLC interface Control parameters:
- Continuous or timer-controlled output
- Fog: Variable output control, 0-100%
- DMX channels: 1
- DMX compliance: ANSI E1.11 - USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20 RDM
- Housing: Steel and aluminum
- Hanging bracket: Integrated yoke w/safety attachment point
- Color: Black
- Heat exchanger (US model): 1800 W, thermally protected
- Heat exchanger (EU model): 2000 W, thermally protected
- Fluid pump: Dual oscillating piston, high pressure
- Fluid management: Fluid out sensing, sealed for transportation
- Fluid reservoir: 5 l drop-in reservoir with quick-connect fitting
- External fluid control: Fluid sensing
- Remote control: Integrated Digital Remote with 3 m cable, 3-pin XLR
- Maximum ambient temperature (Ta max.): 40° C (104° F)
- Exterior surface temperature, steady state: 30° C (86° F)
- Max. nozzle temperature: 290° C (554° F)
- Minimum ambient temperature (Ta min.): 5° C (41° F)
