Martin JEM ZR45 Fog Machine 230 Volt / 50-60 Hertz - EU / European Version

Martin JEM ZR45 Fog Machine 230 Volt / 50-60 Hertz - EU / European Version

The JEM ZR45 is a high-end fog machine designed to deliver superior and uninterrupted performance in demanding professional applications. Via its enhanced and powerful 2,000 W heat exchanger, the JEM ZR45 produces an exceptional peak output ideal for major venues and stages in both install and rental markets. The rugged yet weight-optimized JEM ZR45 also features variable output control for more subtle effects and is fully up-to-date with integrated digital remote control, DMX and RDM. The entire JEM ZR range is compatible with a wide range of JEM Pro-Fog fluids. As machines designed and built to last, the JEM ZRs will continue to perform with great output and low consumption.

Features:

• Robust roadworthy design
• Integrated Digital Remote Control
• DMX with RDM
• Floor standing or truss mounting (hanging bracket included)
• 2000 W (EU model) / 1800 W (US model) heat exchanger
• 1300 m³ (45,909 ft.³) per minute fog output
• Variable output control for subtle effects
• Continuous effect output
• Compatible with a wide range of JEM Pro-Fog fluids
• 5 l Fluid reservoir with quick-connect fitting
• Easy external fluid connection
• Optional Ducting Kit

Specifications:

• Physical:
  • Length: 602 mm (23.1 in.)
  • Width: 395 mm (15.6 in.)
  • Height: 306 mm (12.1 in.)
  • Height with hanging bracket: 393 mm (15.5 in.)
  • Weight, dry: 17.7 kg (39.1 lbs.)
  • Weight, filled: 22.7 kg (50 lbs.)
• Performance:
  • Coverage volume: 1300 m3 (45,909 ft3) per minute
  • Fluid consumption (max.): 210 ml per minute
  • Maximum operating time, maximum output, 5 l of fluid: 1.18 hours
  • Ready time: 10-minutes
  • Continuous effect output
• Control and Programming:
  • Control options: Integrated digital remote control, DMX, master/client link mode
  • Control parameters: Continuous or timer-controlled output
  • Fog: Variable output control, 0-100%
  • DMX channels: 1
  • External fluid control: Fluid sensing
  • DMX compliance: ANSI E1.11 - USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20 RDM
• Construction:
  • Housing: Steel and aluminum
  • Color: Black
  • Heat exchanger:
    • 1800 W, thermally protected (US Model)
    • 2000 W, thermally protected (EU Model)
  • Fluid pump: Dual oscillating piston, high pressure
  • Fluid management: Fluid out sensing, sealed for transportation
  • Fluid reservoir: 5 l drop-in reservoir with quick-connect fitting
  • Remote Control: Integrated Digital Remote with 3 m (9.84 ft.) cable, 3-pin XLR
  • External Fluid Control: Fluid sensing
  • Hanging bracket: Integrated yoke with safety attachment point
• Installation:
  • Mounting: Standing or hanging
  • Orientation: Up to +/-40° from horizontal
  • Clearance around machine: 100 mm (4 in.)
• Connections:
  • AC Power: Neutrik PowerCON TRUE1

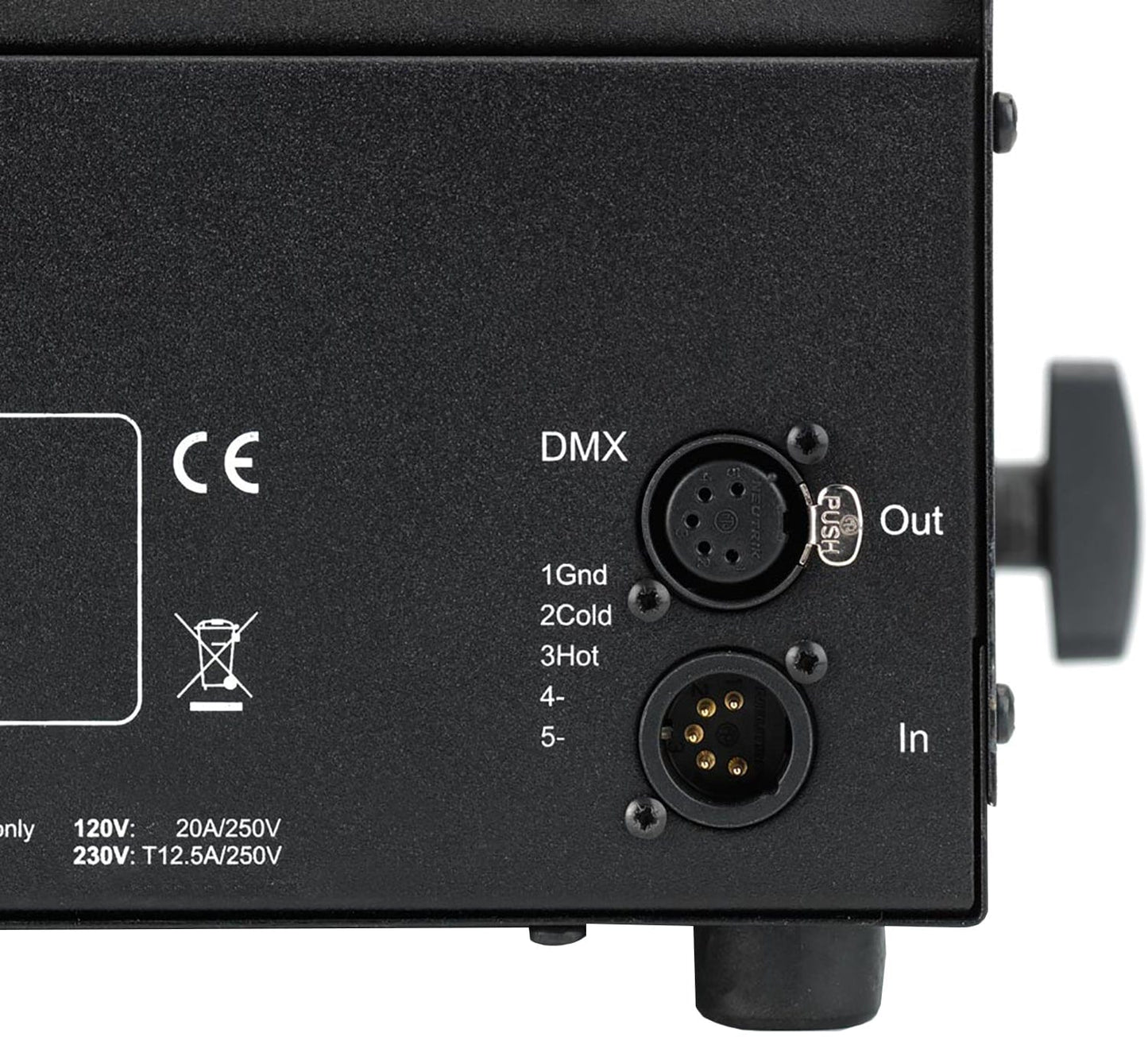

  • DMX, link mode in/out: 5-pin locking XLR
  • Remote control: 3-pin locking XLR
  • Firmware: AVR socket
• Electrical:
  • EU Model:
    • AC power: 220-240 V AC nominal, 50/60 Hz
    • Typical current draw: 9.2 A @ 230 V
    • Power Consumption: Typical (2100 W)
• Thermal:
  • Maximum nozzle temperature: 290° C (554° F)
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): 5° C (41° F)
  • Exterior surface temperature, steady state: 30° C (86° F)
