Martin Exterior Wash 220 RGBW Color Mixing Wash Light - 7 Degree - US Version - Aluminum

Martin Exterior Wash 220 RGBW Color Mixing Wash Light - 7 Degree - US Version - Aluminum

Exterior™ Wash 220 is a powerful, compact and energy-efficient LED lighting fixture designed to illuminate mid-sized structures and building facades. A discreet, optional snoot integrates seamlessly with the slick design of the fixtures. It has built-in display for ease-of-use, a wide selection of beam angles and is fully IP-rated for permanent outdoor use.

The Exterior Wash 220 is designed for variable color temperature (2700K-6500K) applications and is based on separate 2700K and 6500K LEDs.

Features:

• Powerful LEDs (2700K, 6500K)
• Up to 9300 lumens at full white
• Six different beam angle options
• Internal power and control (DMX, RDM and OLED display)
• Rugged IP66 housing
• 0–100% intensity control

Specifications:

• Physical:
  • Length: 270 mm (10.7 in.)
  • Width: 334 mm (13.2 in.)
  • Height: 382 mm (15.1 in.)
  • Weight: 13.0 kg (28.7 lbs.)
• Dynamic Effects:
  • Intensity: 0 - 100%
  • Color temperature control: 2700 K - 6500 K
• Control and Programming:
  • Control systems: DMX, RDM
  • Stand-alone control: Up to 20 scenes with global fade/hold times
  • Setting, addressing, standalone programming: Control panel with OLED display
  • DMX channels: 3
  • Receiver: RS-485
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • Firmware update: Serial upload via DMX link
• Optics:
  • Light source: 2700 K and 6500 K LEDs
  • Minimum LED lifetime: 50,000 hours (to >70% luminous output)
  • LED manufacturer: Cree

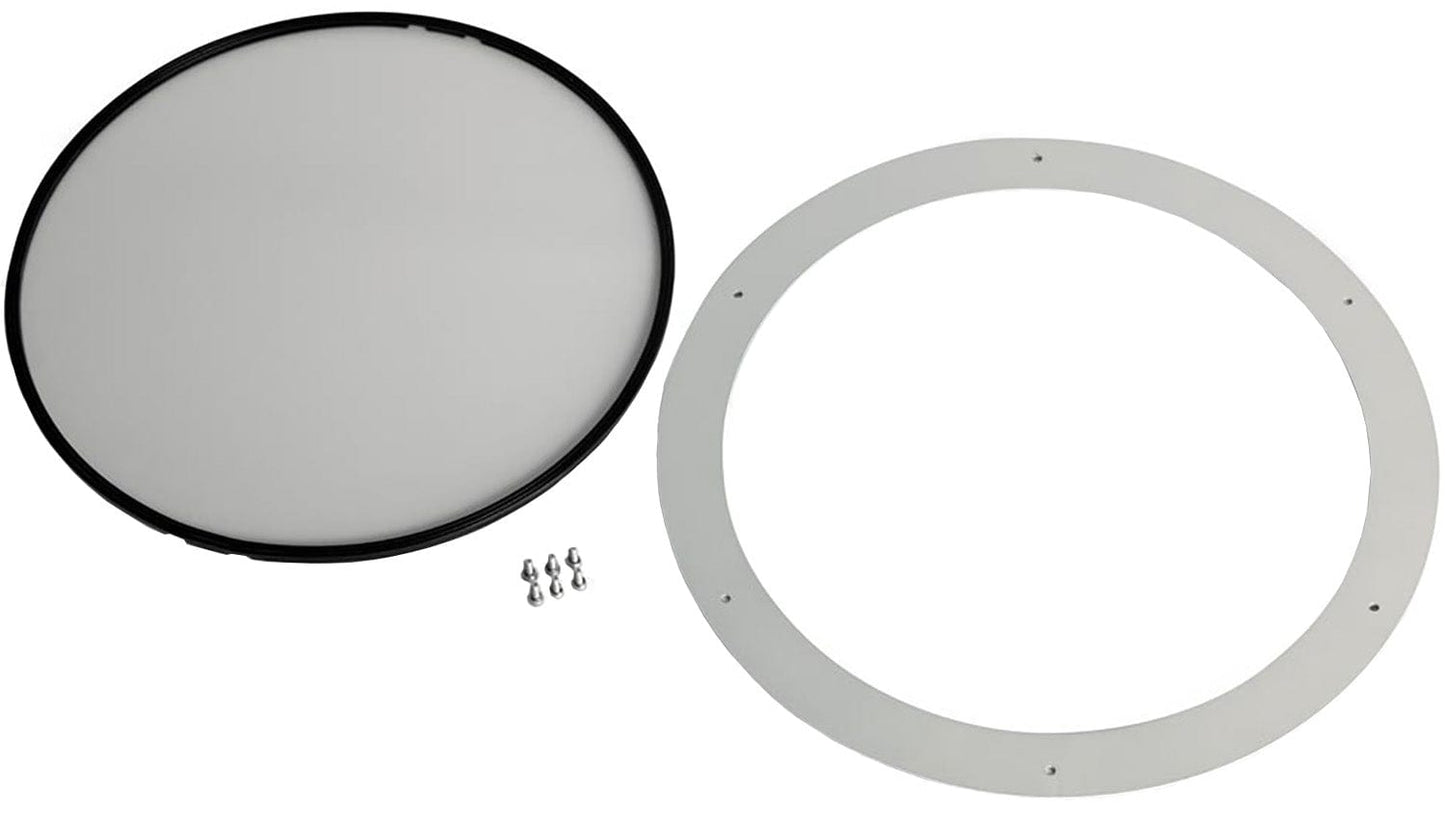

  • Beam Angle Options:
  • No diffuser: 7.5°
  • Narrow diffuser: 11.5°
  • Medium diffuser: 25°
  • Wide diffuser: 36°
  • Very wide diffuser: 60°
  • Asymmetric diffuser: 59° x 14.5°
  • Binning: Tight color and flux binning
  • Calibration: Full Gamut Color Calibration
• Photometric Data:
  • CRI (Color Rendering Index) : > 70
  • CCT: 6500 K (White LED)
  • Total luminous output: 9300 lumens
• Construction:
  • Housing: Cast aluminum
  • Color: Light grey
  • Ingress protection rating: IP66
  • Surface treatment: Anodized and electrostatic powder-coated
  • Effective Projected Area (EPA): 0.1 m² including snoot
  • Impact resistance: IK08 (with control panel display cover plate installed)
  • Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944)
  • Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6), 0,7g RMS Random (IEC 60068-2-64)
• Installation:
  • Mounting: Adjustable yoke
  • Orientation: Any
  • Minimum distance to illuminated surfaces: 0.2 m (0.6 ft.)
• Connections:
  • Power connection: 1.8 m (5.9 ft.) cable tail without connector
  • Power input cable type, EU models: H05RN-F 300/500V, 3 x 0.75 mm2, Ø 7 mm
  • Power input cable type, US models: SJOW 18AWG, 300V, WL F1, Ø 8 mm
  • Data connection: 1.8 m (5.9 ft.) open ended 5-conductor combined input + output cable tail
  • All cable entries: IP68 cable gland
• Electrical:
  • AC power: 100 - 240 / 277 V nominal, 50/60 Hz
  • Power supply unit: Integrated, auto-sensing multi-voltage
  • Power Consumption: 4 W (steady state, all LEDs at zero intensity)
  • Typical half-cycle RMS inrush current: 10.3 A
  • Maximum total power consumption: 185 W
  • Surge protection: 4 KV
  • Max earth leakage: 0.50 mA
• Typical Power and Current:
  • 100 V, 60 Hz: 1.6 A, 162 W, PF 0.99
  • 120 V, 60 Hz: 1.35 A, 160 W, PF 0.99
  • 230 V, 50 Hz: 0.75 A, 160 W, PF 0.94
  • 277 V, 60 Hz: 0.65 A, 160 W, PF 0.93
• Thermal:
  • Cooling: Convection
  • Maximum ambient temperature (Ta max.): 45° C (113° F)
  • Minimum ambient temperature (Ta min.): -30° C (-22° F)
  • Maximum surface temperature, steady state, at 40° C ambient: 55° C (131° F)
  • Total heat dissipation (calculated, +/- 10%): 485 BTU/hr
