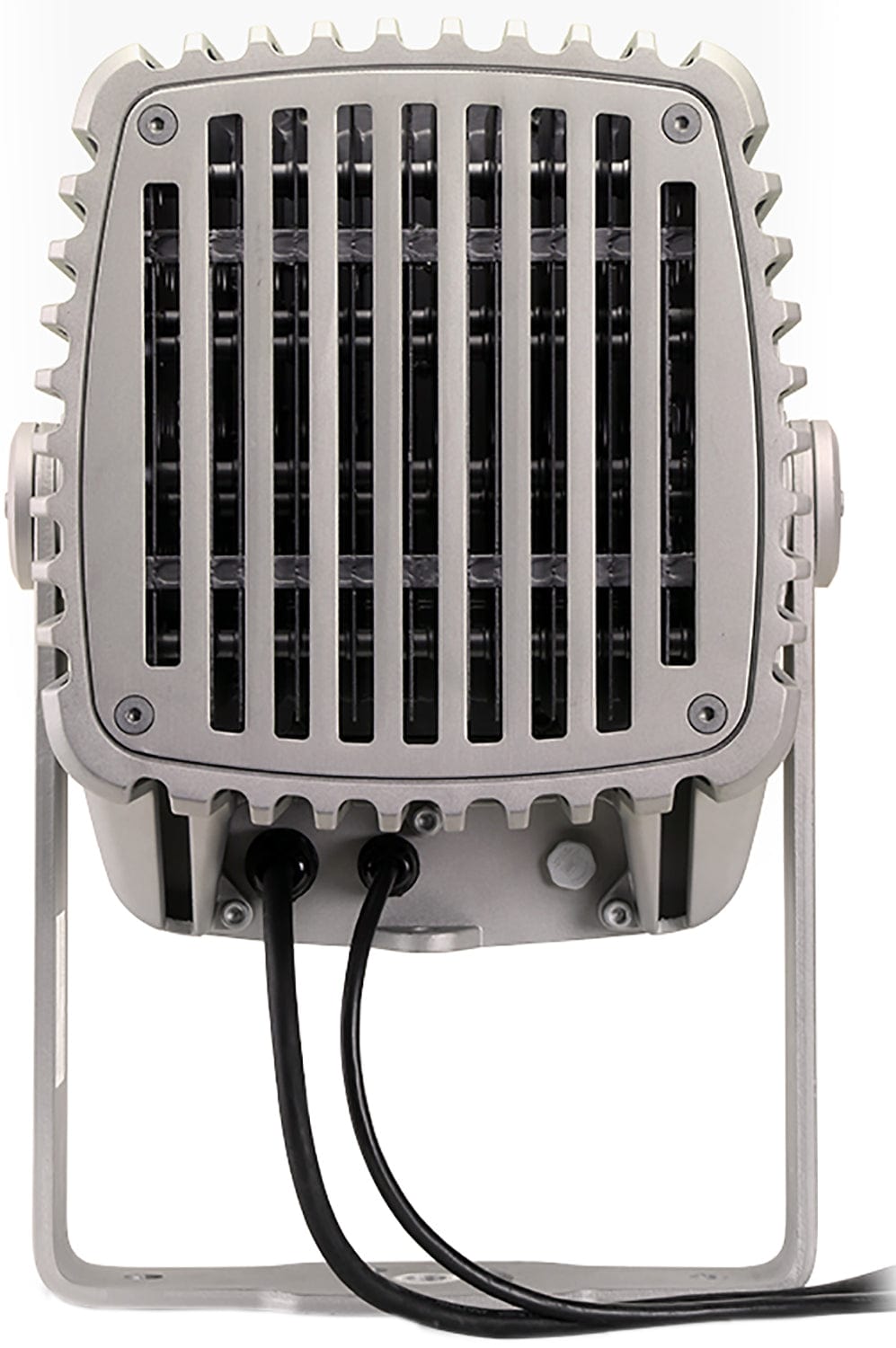

Martin Exterior Projection 500 MG Very Wide Image Projector - US Version
The Exterior™ Projection 500 is a powerful fixture for integrating textures, patterns and graphics in outdoor lighting designs. The fixture can be used for bright and dynamic logo projection as well as precision framing.
Using advanced LED technology, it offers outstanding energy efficiency, compact size and unlimited creative possibilities.
Features:
- Up to 6100 lumens output with 4 beam angles variants from narrow to wide
- Powerful close-range and long-range projection
- Flat-field, high-contrast image projection based on high-power LED engine
- 4 layers of versatile dynamic effects (colors, gobo projection, gobo animation, prisms/frost)
- Crisp image projection
- Rugged IP66-rated housing
- Minimal maintenance – low total cost of ownership
Specifications:
- Physical:
- Length: 415 mm (16.4 in.)
- Width: 293 mm (11.6 in.)
- Height: 444 mm (17.5 in.)
- Weight: 17.5 kg (38.6 lbs.)
- Dynamic Effects:
- Color wheel: 8 interchangeable colors + open
- Gobo wheel: 6 rotating gobos plus open, indexing, variable rotation
- Gobo animation: Variable speed linear animation effect
- Prism: Prism wheel with 2 interchangeable prisms, prism rotation and indexing
- Frost (wash effect): Motorized variable
- Dimming: Electronic, constantly variable 0-100%, 16-bit control
- Shutter: Strobe and pulse effects, instant open and blackout
- Focus: Motorized, variable 3 m (9.8 ft.) to infinity
- Control and Programming:
- Stand-alone control: Up to 20 scenes with global fade/hold times
- Control options: DMX, RDM, standalone
- Configuration, addressing and status: Onboard control panel with OLED display
- 8-bit control: color/gobo selection, prism, frost, animation
- 16-bit control: Gobo indexing and rotation, focus and intensity
- DMX channels: 13
- DMX compliance: USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20
- Optics:
- Light source: 230 W white light LED engine
- CRI (Color Rendering Index): 72
- Color temperature: 8300 K
- LED lifetime: 20,000 hours (to >70% luminous output)
- LED manufacturer: Prolight Opto
- Binning: Tight color and flux binning
- Photometric Data:
- Cut-off angle: 50°
- Total output: 3400 lumens
- Center peak: 11,000 cd
- Construction:
- Housing: Cast aluminum
- Finish: Hard anodized, metallic grey lacquered
- Front glass: 5 mm (0.2 in.) anti-reflection coated tempered glass
- Ingress protection: IP66
- Impact resistance: IK08 (with control panel display cover plate installed)
- Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944)
- Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6)
- 0,7g RMS Random (IEC 60068-2-64)
- EPA (Effective Projected Area): 0.15 m2
- RoHS compliant
- Gobos:
- Suitable material: Borosilicate glass, coatings heat-resistant to 450°C (842° F)
- Alternative material: Aluminum 1060, paint on front lens side, 450° C (842° F)
- Gobo diameter: 30.0 mm +0/-0.3 mm (1.2 in. +0/-0.02 in.)
- Maximum image diameter: 23 mm (0.91 in.)
- Glass gobo thickness, minimum: 1.1 mm ±0.1 mm (0.045 ±0.004 in.)
- Glass gobo thickness, maximum: 3.0 mm ±0.3 mm (0.12in. ± 0.012 in.)
- Aluminum gobo thickness: 0.5 mm ± 0.02 mm (0.020 in. ± 001 in.)
- HT paint
- Installation:
- Mounting: Adjustable yoke
- Location: Suitable for wet locations. Do not immerse in water.
- Orientation: Any (sides must be kept vertical)
- Minimum distance to illuminated surfaces: 0.5 m (20 in.)
- Connections:
- Power cable entry: IP68 cable gland
- Power connection: 1.8 m (5.9 ft.) cable tail with bare ends
- Data cable entry: IP68 cable gland
- Data connection: 1.8 m (5.9 ft.) combined input + output cable tail with bare ends
- Electrical:
- AC power: 100-240/277 V nominal, 50/60 Hz
- Power Supply: Auto-ranging electronic switch-mode
- Typical half-cycle RMS inrush current: 8.4 A
- Idle power (zero intensity, no effects applied): 32 W, 0.3 A
- Surge protection: 4 KV
- Typical Power and Current:
- 110 V, 60 Hz: 320 W, 2.9 A, PF 0.977
- 230 V, 50 Hz: 310 W, 1.4 A, PF 0.971
- 277 V, 60 Hz: 305 W, 1.2 A, PF 0.950
- Thermal:
- Cooling: Convection, internal forced air
- Total heat dissipation (calculated): 1100 BTU/hr.
- Maximum surface temperature: 85° C (185° F)
- Maximum ambient temperature (Ta max.): 45° C (113° F)
- Minimum ambient temperature (Ta min.): -30° C (-22° F)
- Physical:
- Length: 415 mm (16.4 in.)
- Width: 293 mm (11.6 in.)
- Height: 444 mm (17.5 in.)
- Weight: 17.5 kg (38.6 lbs.)
- Dynamic Effects:
- Color wheel: 8 interchangeable colors + open
- Gobo wheel: 6 rotating gobos plus open, indexing, variable rotation
- Gobo animation: Variable speed linear animation effect
- Prism: Prism wheel with 2 interchangeable prisms, prism rotation and indexing
- Frost (wash effect): Motorized variable
- Dimming: Electronic, constantly variable 0-100%, 16-bit control
- Shutter: Strobe and pulse effects, instant open and blackout
- Focus: Motorized, variable 3 m (9.8 ft.) to infinity
- Control and Programming:
- Stand-alone control: Up to 20 scenes with global fade/hold times
- Control options: DMX, RDM, standalone
- Configuration, addressing and status: Onboard control panel with OLED display
- 8-bit control: color/gobo selection, prism, frost, animation
- 16-bit control: Gobo indexing and rotation, focus and intensity
- DMX channels: 13
- DMX compliance: USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20
- Optics:
- Light source: 230 W white light LED engine
- CRI (Color Rendering Index): 72
- Color temperature: 8300 K
- LED lifetime: 20,000 hours (to >70% luminous output)
- LED manufacturer: Prolight Opto
- Binning: Tight color and flux binning
- Photometric Data:
- Cut-off angle: 50°
- Total output: 3400 lumens
- Center peak: 11,000 cd
- Construction:
- Housing: Cast aluminum
- Finish: Hard anodized, metallic grey lacquered
- Front glass: 5 mm (0.2 in.) anti-reflection coated tempered glass
- Ingress protection: IP66
- Impact resistance: IK08 (with control panel display cover plate installed)
- Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944)
- Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6)
- 0,7g RMS Random (IEC 60068-2-64)
- EPA (Effective Projected Area): 0.15 m2
- RoHS compliant
- Gobos:
- Suitable material: Borosilicate glass, coatings heat-resistant to 450°C (842° F)
- Alternative material: Aluminum 1060, paint on front lens side, 450° C (842° F)
- Gobo diameter: 30.0 mm +0/-0.3 mm (1.2 in. +0/-0.02 in.)
- Maximum image diameter: 23 mm (0.91 in.)
- Glass gobo thickness, minimum: 1.1 mm ±0.1 mm (0.045 ±0.004 in.)
- Glass gobo thickness, maximum: 3.0 mm ±0.3 mm (0.12in. ± 0.012 in.)
- Aluminum gobo thickness: 0.5 mm ± 0.02 mm (0.020 in. ± 001 in.)
- HT paint
- Installation:
- Mounting: Adjustable yoke
- Location: Suitable for wet locations. Do not immerse in water.
- Orientation: Any (sides must be kept vertical)
- Minimum distance to illuminated surfaces: 0.5 m (20 in.)
- Connections:
- Power cable entry: IP68 cable gland
- Power connection: 1.8 m (5.9 ft.) cable tail with bare ends
- Data cable entry: IP68 cable gland
- Data connection: 1.8 m (5.9 ft.) combined input + output cable tail with bare ends
- Electrical:
- AC power: 100-240/277 V nominal, 50/60 Hz
- Power Supply: Auto-ranging electronic switch-mode
- Typical half-cycle RMS inrush current: 8.4 A
- Idle power (zero intensity, no effects applied): 32 W, 0.3 A
- Surge protection: 4 KV
- Typical Power and Current:
- 110 V, 60 Hz: 320 W, 2.9 A, PF 0.977
- 230 V, 50 Hz: 310 W, 1.4 A, PF 0.971
- 277 V, 60 Hz: 305 W, 1.2 A, PF 0.950
- Thermal:
- Cooling: Convection, internal forced air
- Total heat dissipation (calculated): 1100 BTU/hr.
- Maximum surface temperature: 85° C (185° F)
- Maximum ambient temperature (Ta max.): 45° C (113° F)
- Minimum ambient temperature (Ta min.): -30° C (-22° F)
