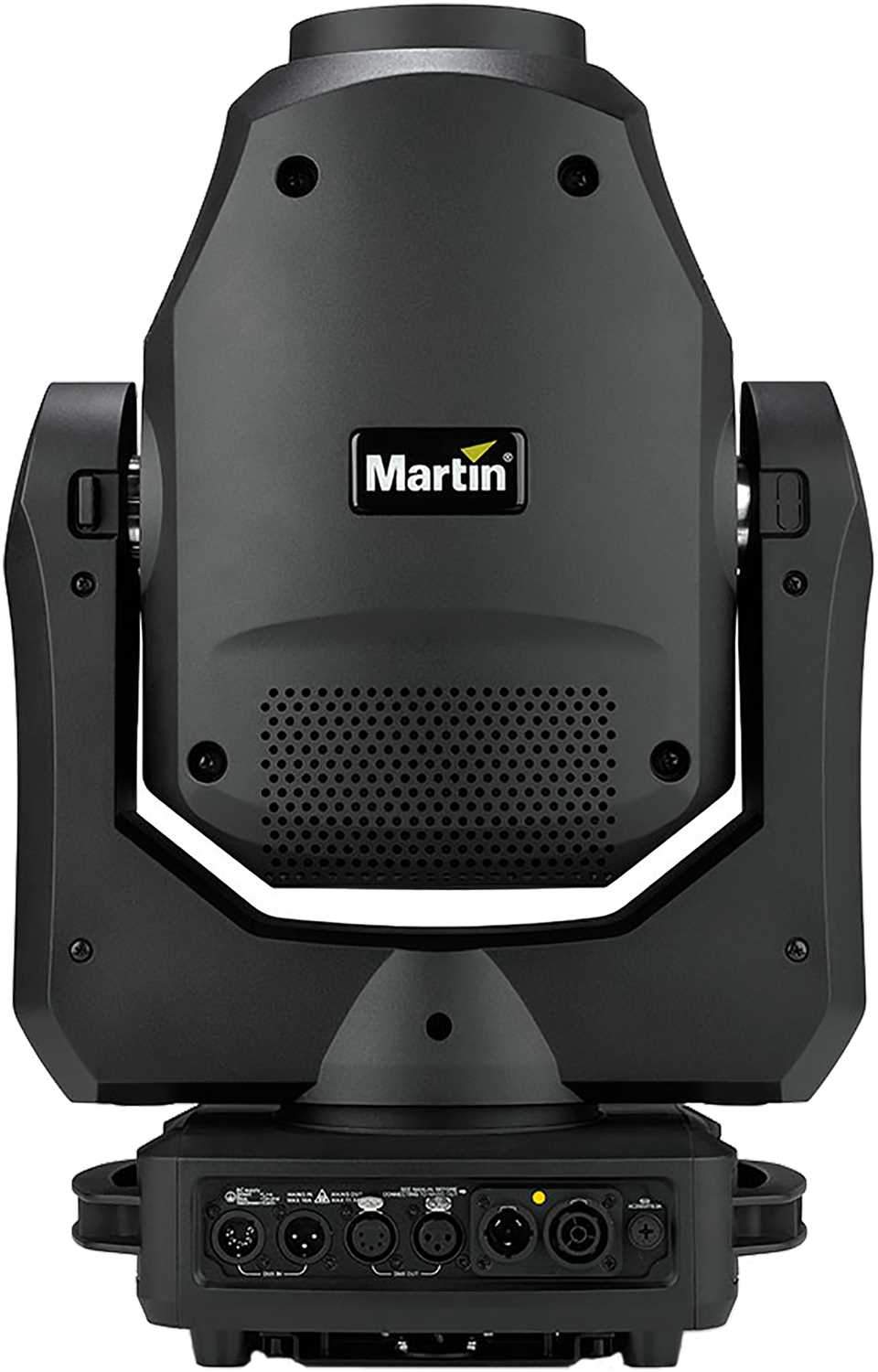

Martin Era 300 Profile 260W LED Zoom Moving Head
The Martin Era 300 Profile is a very compact profile fixture with an extremely efficient 260W white LED engine that produces a sharp gobo projection with a flat field and more output than typically associated with similar-sized and featured fixtures. This modern, everyday workhorse is designed to fit anywhere, is easy to handle and rig, takes up less truck space, and boasts professional features, including CMY color mixing and 1:2 zoom and 9,500 lumens of output. Additional features include electronic dimming and strobe; color wheel; two layers of gobos, including rotating gobos; iris; rotating prism and pan/tilt.
The electronic dimming feature ensures extremely fast strobing, instant intensity control and the ability to maintain a consistent flat field down to zero percent. Onboard CMY color mixing offers wide-ranging versatility from subtle pastels to deep, vibrant colors, as well as fast transitions and smooth fades. And, with 13 to 28 degrees of zoom, the Era 300 Profile is perfect for various trim heights and is wide enough to ensure great coverage on smaller stages.
The Martin Era 300 Profile also delivers increased ROI with minimal maintenance. The steady, stable LED source eliminates worries of lamp aging, loss of output, shifts in color temperature, and fans sucking dirt through the optical path. And, the modular design makes maintenance extremely safe, quick, and easy. The Era 300 Profile is built for the road and is ideal for small and mid-sized concerts and touring, live TV productions, corporate shows, cruise lines and houses of worship.
Features:
- 260 watt / 6,500K LED light source
- 9,500 lumen output
- Full feature set including CMY color mixing and 1:2 zoom
- Crisp optics with flat field
- Very compact and low weight design
Specifications:
- Weight: 17kg (38lbs)
- Dimensions: 375 x 217 x 564 mm (14.8 x 8.5 x 22.2 in)v
- Electronic 'shutter' effect: Strobe effect, pulse effects, instant open and blackout
- Electronic dimming: 0 - 100%, four dimming curve options
- Color Mixing: CMY, independently variable 0-100%
- Color Wheel: 9 color filters plus open
- Rotating gobo wheel: 7 gobos plus open, wheel rotation, gobo rotation, indexing and shake
- Static gobo wheel: 9 gobos plus open, wheel indexing, rotation and shake
- Zoom: Motorized
- Focus: Motorized
- Iris: 0-100%
- Beam effects: Rotating three-facet prism
- Pan: 540?, coarse & fine control and speed
- Tilt: 260?, coarse & fine control and speed
- Control options: DMX
- RDM: Implemented
- DMX channels: 21ch
- Setting and addressing: Control panel with backlit LCD display
- DMX compliance: USITT DMX512/1990
- Light source: 260W LED engine
- Zoom range: 13? - 28?
- Light engine luminous output: 20,000 lumens
- Fixture luminous output: 9,500 lumens
- CRI: >70
- CCT: 6500 Kelvin
- Minimum LED lifetime: 15000 hours (to >70% luminous output)*
- *Manufacturer¥s figure obtained under manufacturer¥s test conditions
- Color: Black/White
- Housing: High-impact flame-retardant thermoplastic
- Protection rating: IP 20
- Installation mounting points: Two quarter-turn brackets for rigging clamps
- Protection Rating: IP20
- Orientation: Any
- AC power input: Neutrik powerCON True1
- AC power throughput: Neutrik powerCON True1
- DMX data in/out: 3-pin & 5-pin locking XLR
- AC power: 100-240V nominal, 50/60 Hz
- Power supply unit: Auto-ranging electronic switch mode
- Fuse: T 6.3A
- 120V, 60Hz: 3.13A, 374W, PF 0.999
- 230V, 50Hz: 1.62A, 362W, PF 0.993
- Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
- EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
- EU EMC: EN 55015; EN 55032; EN 55103-2; EN 61000-3-2,-3; EN 61547
- US safety: UL 1573
- US EMC: FCC Part 15 Class B
- Canadian safety: CSA C22.2 No. 166
- Canadian EMC: ICES-003 Class B, ICES-005 Class B
- Australia/NZ: RCM
- Cooling: Forced air (temperature regulated, low noise)
- Maximum ambient temperature (Ta max.): 40? C
- Minimum ambient temperature (Ta min): 0? C
- Included Items:
- Power cable, 1.5 m (4.9 ft.) 18AWG/0.75 mm2 without mains plug
- Omega brackets for rigging clamp attachment
