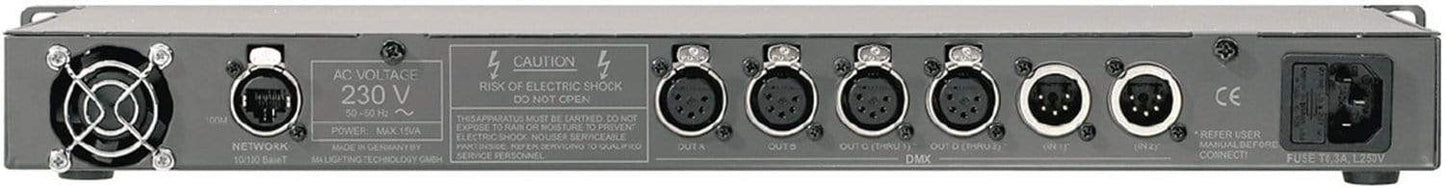

MA Lighting NSP Network Processing Unit

For decentralised DMX networks, the MA NSP (Network Signal Processor) converts the incoming Ethernet data into DMX512-A data. For data conversion, two Ethernet protocols are supported: MA-Net and Art-Net.

Features:

• External channel expansion for grandMA systems
• DMX output in combination with grandMA onPC
• Control via MA-Net and Art-Net
• Supports four independent DMX universes, two of which can be used as inputs
• Connectors for external VGA monitor, mouse and keyboard
• LED indicators for network and DMX activities

Specifications:

• Dimensions: 483 x 44 x 180mm
• Net weight: 3.3kg
