MA Lighting MA NPU Network Processing Unit

The MA NPU (Network Processing Unit) unites the calculation power in the network and offers the same performance as the grandMA2 consoles. The MA NPU offers and handles 4,096 parameters. With an easy to read touchscreen the MA NPU allows intuitive use and easy access to all the important information. 8 x DMX XLR 5-pin connectors on the rear side of the MA NPU allow a most flexible use within the network environment. The MA NPU is the link between Ethernet and DMX controlled devices. The MA NPU adds processing power and parameters to the MA system. Within a network, several grandMA2 consoles share the available MA NPU devices.

Features:

• Real-time calculation for up to 65,536 parameters with a grandMA2 system (up to 256 DMX universes)
• 4,096 HTP/LTP parameters
• 8 DMX out (XLR 5pin)

• 1 internal command touchscreen (7")
• 1 powerCON in and out
• 1 etherCON connector
• 3 USB 2.0 connectors

Specifications:

• Operating voltage/ Supply voltage: 120V/230V, 50/60Hz (automatic detection)
• Power: 150VA
• Dimensions: 485 x 332 x 126mm / 19 x 13 x 5inch
• Net weight: 8.4kg / 18.5lbs

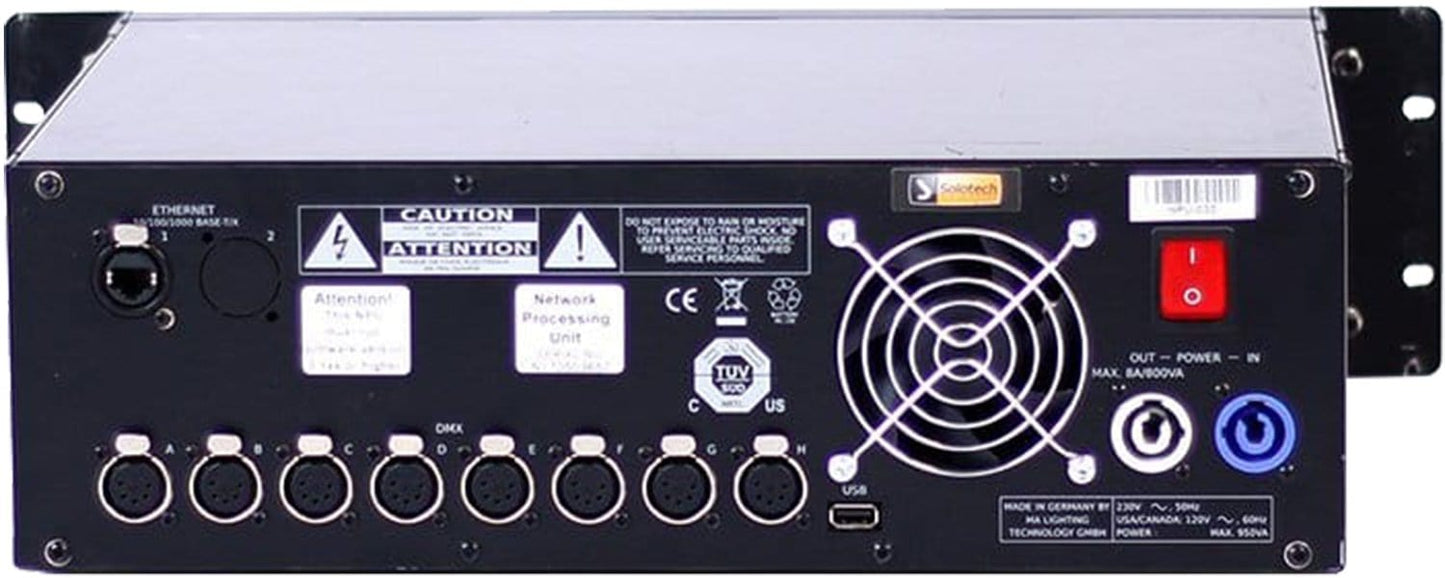

• Output connectors:
  • 8 x XLR 5pin (DMX)
  • 3 x USB
  • 1 x etherCON
• Input connector: 1x powerCON
