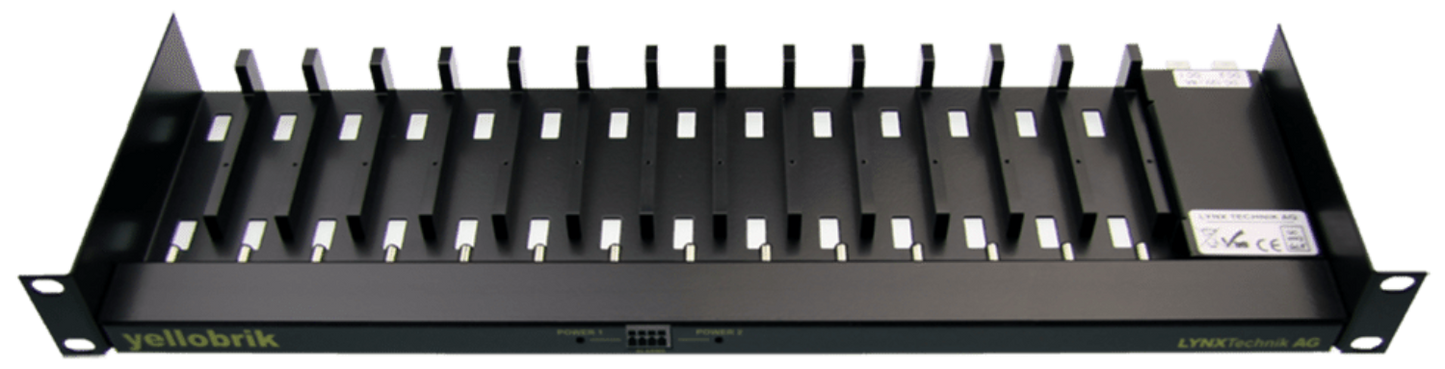

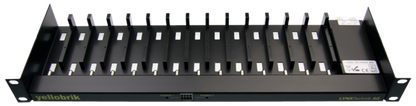

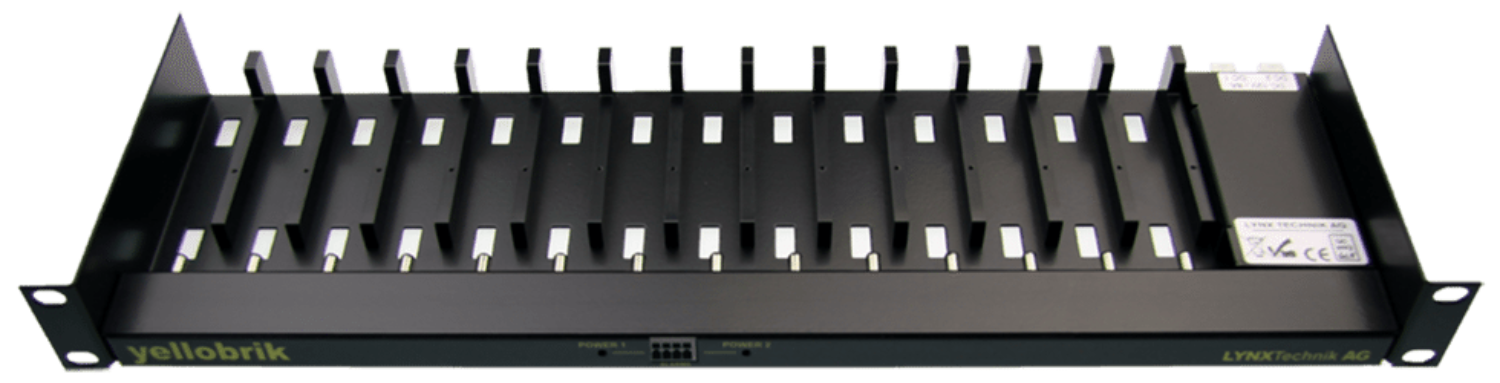

The RFR 1200 is a compact 19″ 1 RU high mounting frame designed for yellobriks.

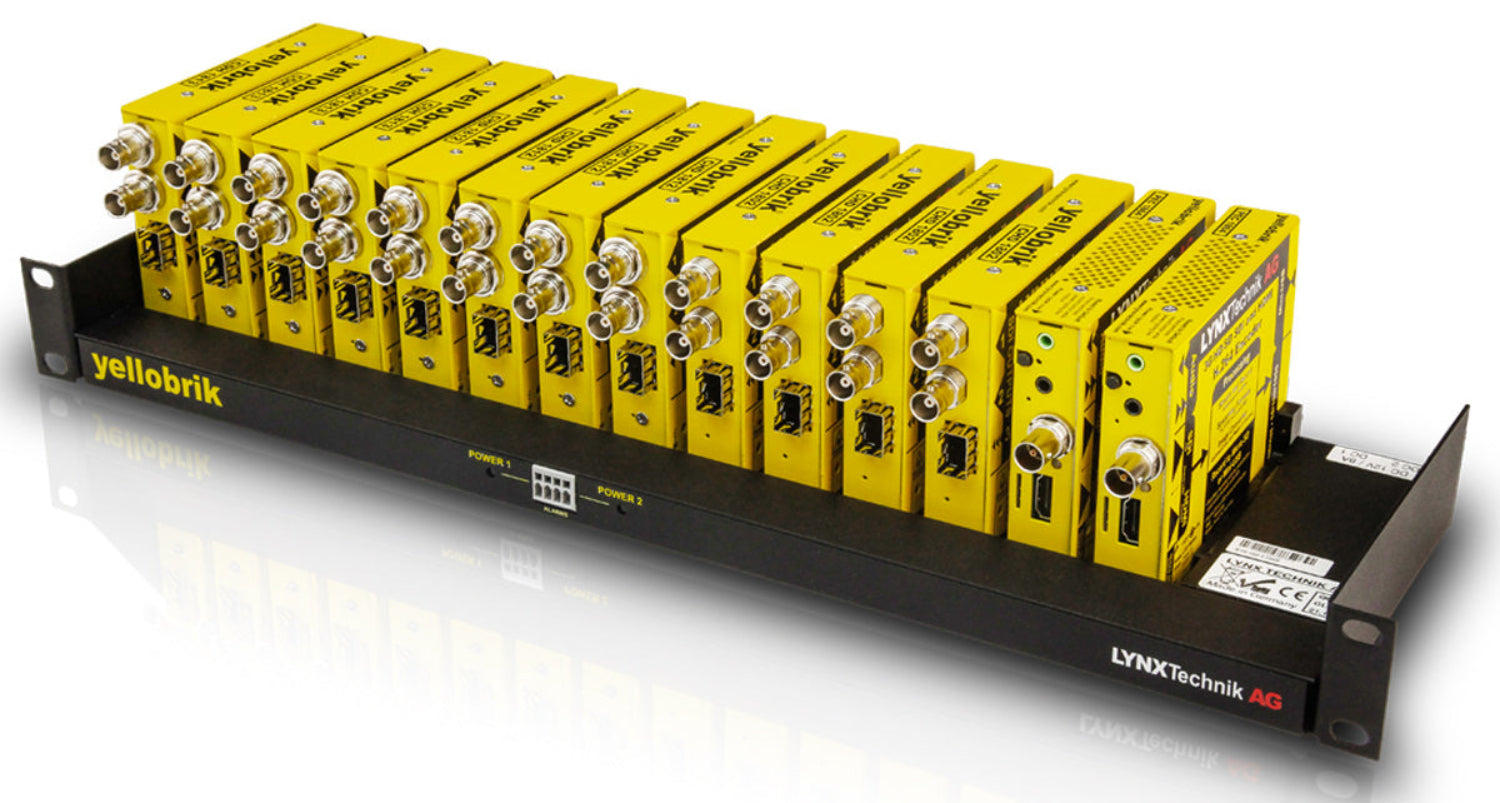

Up to 14 yellobriks can be mounted vertically and mechanically clamped in place. Each slot has its own integrated power connector on a central power bus which can supply up to 200W of power total.

The rack has two external 12VDC inputs for power. Depending on the application, two power supply options are available. For most installations the RPS A100 US (100W) power supply is sufficient, but for systems with a mix of higher power yellobrik modules the RPS A200 US (200W) version is available.

Power status LEDs are located in the front panel, as well as GPI connections for the power supply failure alarms.

While the frame will accommodate all yellobriks (exceptions are are OCM, OSP, OTR 1441, OTR 1442, OTR 1A41 and OTR 1A42) It is ideally suited for the yellobrik fiber converters, which are typically used in larger numbers.

A space is left open on the right hand side to facilitate the routing of any fiber or electrical cable from the front of the rack to the rear making for a very clean installation. The module fiber RX and TX activity LEDs can be seen from the front with the modules installed. To protect the fiber cables and connectors the 19” mounting brackets can be re-positioned to recess the rack frame.

To mount the wider modules (i.e. IDC 1411 and CDE 1922 ) the spacer brackets can be unscrewed from the bottom to make room to accommodate these types of modules.

Features

• Accommodates up to 14 yellobriks
• External 12VDC power inputs
• Redundant power options
• Power failure GPI Alarm
• Adjustable 19” mounting brackets to recess frame
