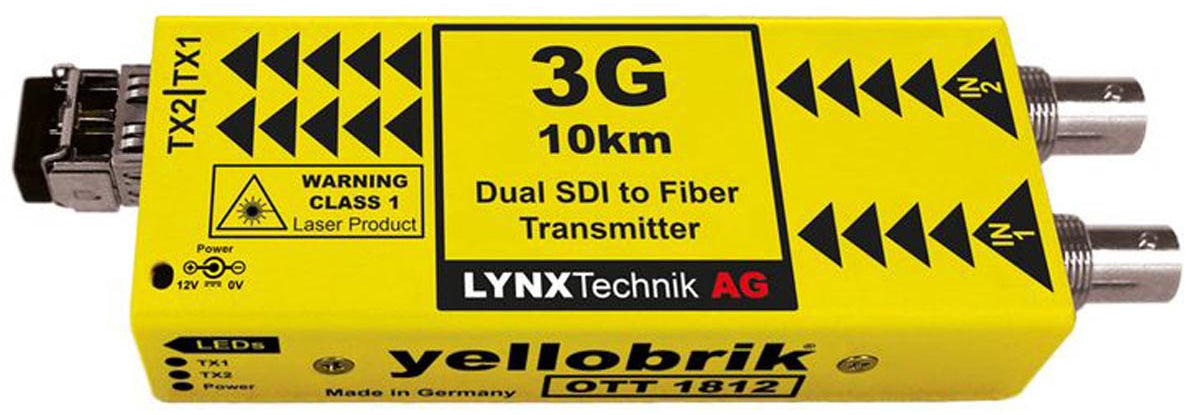

The OTT 1812 is a compact dual channel SDI to fiber optic transmitter designed to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances.

When paired with the dual channel fiber optic to SDI receiver (e.g. yellobrik ORR 1802) you have a very cost effective dual channel optical transmission / receiver system for signals up to 1080p60 (3Gbit/s), while preserving full uncompressed quality.

The OTT 1812 has two completely independent channels and each will auto-detect and re-clock any 270Mbit / 1.48Gbit and 2.97Gbit SDI source prior to optical transmission. The module is fully compatible with 3Gbit Level A and Level B formats.

Features

• Dual channel
• Supports SDI video inputs up to 3Gbit/s (1080p60)
• 3Gbit Level A and Level B support (all formats)
• Auto reclocking 270Mbit / 1.48Gbit / 2.97Gbit
• Error free optical transmission
• Up to 10km* (6.2 miles*) @ 3Gbit/s
• Duplex LC/PC singlemode optical connection
• Supports hot swapping and hot plugging

Specifications

SDI Video Inputs :

• 2x SDI inputs on 75 Ohm BNC connectors
• SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
• YCbCr 4:4:4/4:2:2/4:2:0
• 8, 10, 12-bit
• 3G-SDI Level A or B Dual Link
• Multi-standard operation from 270Mbit/s to 3Gbit/s
• Multi-rate reclocking: 270Mbit/s – 1.5Gbit/s – 3Gbit/s
• Transparent: Transports entire SDI payload including all embedded audio and any ancillary / metadata.

Electrical Return Loss:

• 5GHz: >15dB
• 3GHz: >10dB

Automatic cable EQ: (Belden 1694A cable)

• 270Mbit/s = 250m
• 5Gbit/s = 190m
• 3Gbit/s = 140m

Optical Outputs:

2 x fiber optic Outputs:

• Duplex LC/PC connection (Singlemode)
• SMPTE 297M – 2006

Wavelength:

• 1310nm each channel (Singlemode)

Optical power:

• -3 dBm to -8dBm each channel (Singlemode)
• 2 x TX active LED on side of module

Max. distance*

• 10km* (6.2 miles*) @ 3Gbit/s (Singlemode)

Power

• +12V DC @ 1.9W nominal – (supports 7 – 24V DC input range)
• Power Present LED on side of module

Physical Size: (including.connectors)

• Metric:140mm x 42mm x 22mm
• Inches: 5.51” x 1.65” x 0.86”

Weight:

• 125g (4.4oz)

Operational Temperature Range:

• Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)
