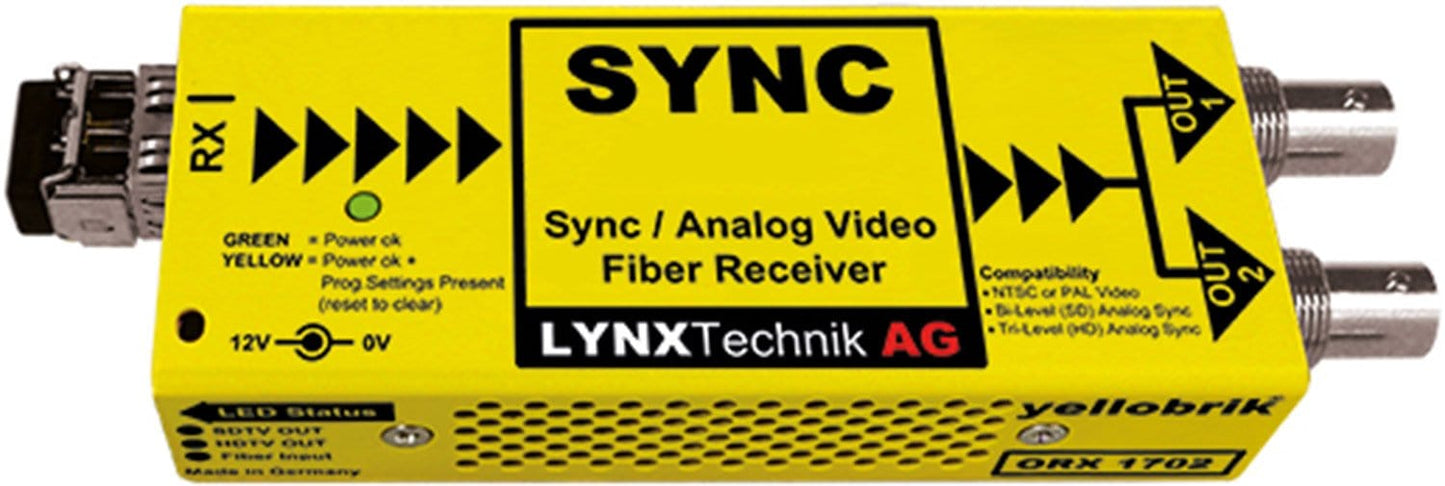

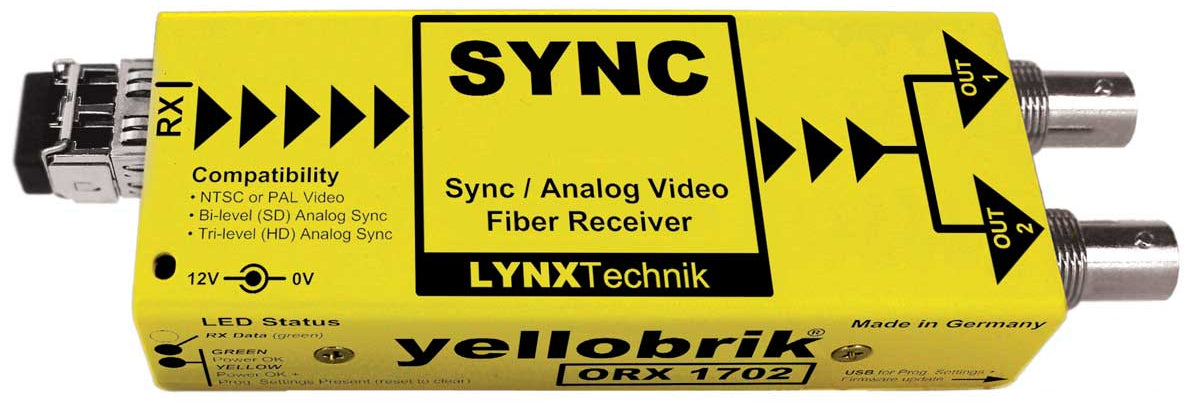

Lynx Technik AG ORX1702 Sync/Analog Video Receiver

The ORX 1702-1 is a compact analog sync or NTSC/PAL composite video to fiber optic receiver. This device is specifically designed to combat the restrictions involved with the distribution of broadcast quality analog reference and composite video signals over long distances.

Features:

  • Supports analog black burst, bi-level, tri-level sync signals and NTSC and PAL composite video
  • Two outputs
  • Broadcast quality performance
  • Versions for LC, ST or SC fiber connections
  • Multimode version available
  • Supports hot swapping and hot plugging
  • yelloGUI compatible to access additional internal settings

Specifications:

  • Fiber Input Singlemode:
    • 1 x fiber optic Input
    • LC, ST or SC connection
    • SMPTE 297M - 2006
    • Input range (wavelength): 1260nm to 1620nm
    • RX sensitivity: -3dBm to -19dBm
    • RX active LED on side of module
  • Fiber Input Multimode:
    • 1 x fiber optic input (LC connection)
    • SMPTE 297M - 2006
    • Input range (wavelength) 780nm to 880nm
    • RX sensitivity: 0dBm to -15dBm
    • RX active LED on side of module
  • Analog Output:
    • Sync = analog black burst / SDTV bi-level / HDTV tri-level, Video = NTSC / PAL composite video, 2 identical outputs provided, 75 Ohm BNC connectors
    • NTSC SMPTE 170M, PAL CCIR624, (Analog tri-level sync SMPTE ST 274, ST 296), 720p 50/59.94/60, 1080i 50/59.94/60, 1080p 23.97/24/25, 1080psF 23.97/24
    • Return loss: 46.5dB to 10MHz
  • Power: +12VDC @ 3.5W nominal - ( supports 8 - 24VDC input range )
  • Physical:
    • Size: 140mm x 42mm x 22mm (5.51” x 1.65” x 0.86”) including connectors
    • Weight: 125g (4.4oz)
  • Ambient: 5 - 40ºC (41 - 104ºF) 90% Humidity (non condensing)
