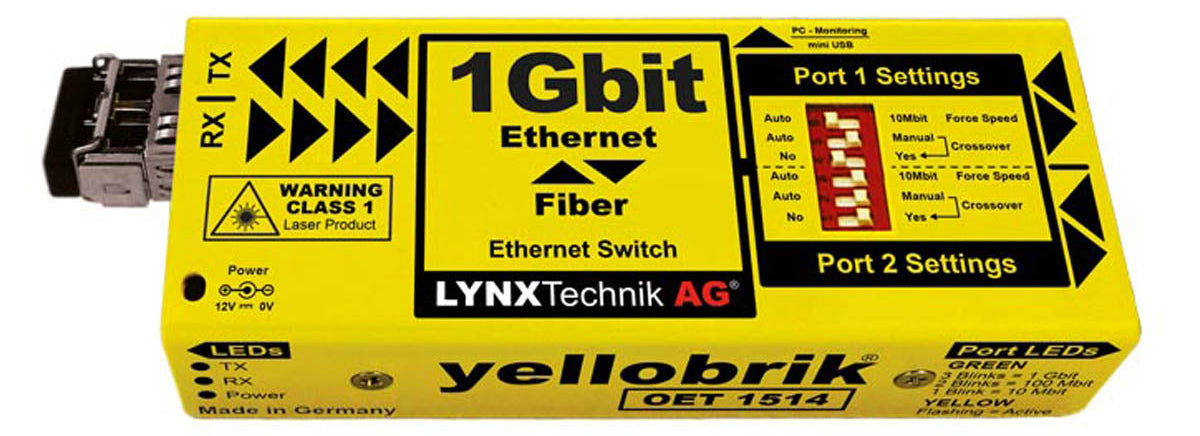

Lynx Technik AG OET 1514 1GbE Ethernet to Fiber Optic Transceiver

Lynx Technik AG OET 1514 1GbE Ethernet to Fiber Optic Transceiver

The OET 1514 is a compact 3 port unmanaged Ethernet switch, designed to extend the reach of electrical Ethernet signals over long distances using a constant (fixed) high speed 1 Gbit/s fiber optic transceiver speed.

When paired with another OET 1514 at the receiving end (using two fiber links) you have a cost effective Ethernet extender system for distances up to 10km providing a stable, high speed 1Gbit/s error free optical connection between locations.

The OET 1514 has two standard RJ45 electrical Ethernet ports plus fiber I/O and functions as a 3 port Ethernet switch. For legacy system use: each electrical Ethernet port can be set for automatic speed detection (10/100/1000) or forced to 10Mbit/s, and each port can use auto crossover detection or be forced manually if needed. These functions are available using the dip switch.

Features

• Supports standard Ethernet inputs up to 1 Gbit/s
• 3 port Ethernet switch (1 fiber, 2 electrical)
• Auto (10/100/1000) port speed detection
• Manually force 10Mbit/s electrical speed (if needed)
• Fiber transceiver speed always 1 Gbit/s
• Auto or manual electrical crossover selection
• Distances up to 10km(6.2 miles)* over fiber
• 2 SFP selections (Singlemode and Multimode)

Specifications

Ethernet (electrical):

• 2 x Ethernet ports, RJ 45 Connectors.
  • 10 BaseTUTP category 3,4 or 5 cable up to 328ft/100m (2 pairs)
  • 100 BaseTXUTP category 5 cable up to 328ft/100m (2 pairs)
  • 1000 BaseTXUTP category 5 cable up to 328ft/100m (4 pairs
• Auto detect bit rate (10/100/1000), or force to 10Mbit for each port (selectable)
• Automatic crossover detection or force manually for each port (selectable)
• Port speed / activity LED indication (next to Ethernet port)

Ethernet Optical I/O:

• EEE 802.3z
  • (1000BASE-X Gbit/s Ethernet over Fiber at 1Gbit/s (125 MB/s

1 x fiber optic output:

• OET 1514 = Duplex (Singlemode) LC/PC connection
• OET 1514 MM = Duplex (Multimode) LC/PC connection

TX Wavelength:

• OET 1514 = 1310nm
• OET 1514 MM = 850nm

TX Optical power:

• OET 1514 = -3dBm
• OET 1514 MM = -2dBm to -7dBm

1 x fiber optic input

RX Wavelength:

• OET 1514 = 1270nm – 1610nm
• OET 1514 MM = 850nm

RX Sensitivity:

• OET 1514 = -23dBm
• OET 1514 MM = -15dBm

Max. distance*

• OET 1514 = 10km* (6.2miles)*
• OET 1514 MM = 550m* (1800 feet)*

Power

• +12V DC @ 1.7W nominal – (supports 7 – 24V DC input range)
• Power Present LED on side of module

Physical Size: (including connectors)

• Metric:140mm x 42mm x 22mm
• Inches: 5.51” x 1.65” x 0.86”

Weight:

• 125g (4.4oz)

Operational Temperature Range:

• Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)
