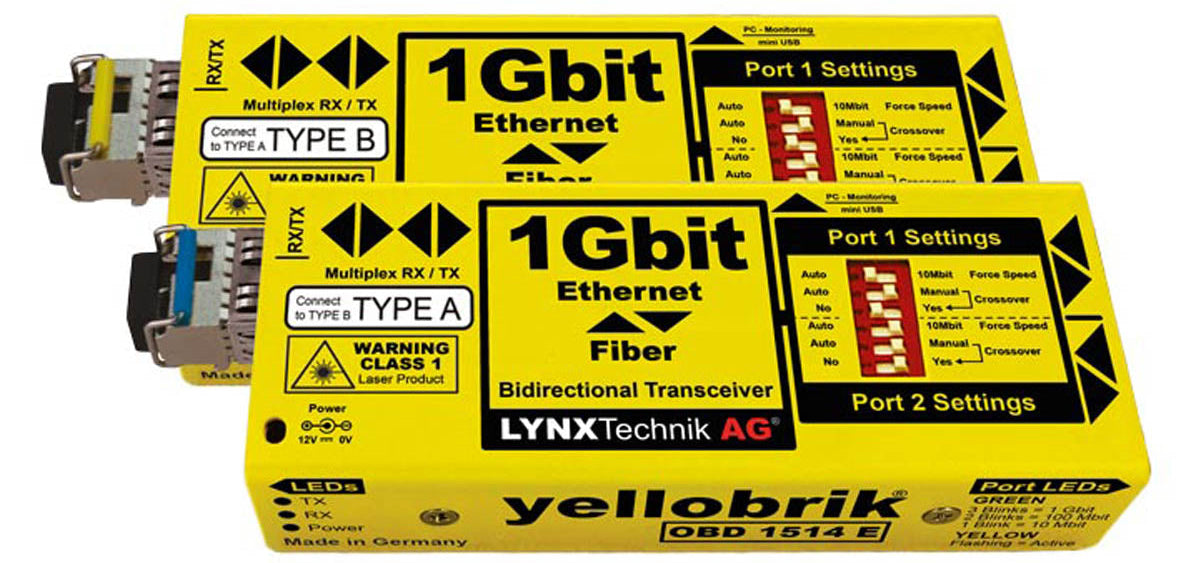

Lynx Technik AG OBD 1514 E 1GbE Ethernet Fiber Optic Bidirectional Transceiver Kit

Lynx Technik AG OBD 1514 E 1GbE Ethernet Fiber Optic Bidirectional Transceiver Kit

The OBD 1514 E is a matched pair of compact Ethernet switches designed to extend the reach of 1GbE signals over long distances. The two switches are linked via simplex bi-directional fiber which operates at a constant 1Gbit/s speed.

This pair of modules uses WDM (Wavelength-division Multiplexing) fiber technology in a closed loop environment, It functions as a simple Ethernet extender solution. The fiber link supports distances up to 10km* and provides a single, high speed 1Gbit/s error-free optical connection between the two locations.

Each OBD 1514 E module has two standard RJ45 Ethernet ports. The complete system functions as a 4 ports Ethernet switch, providing two standard RJ45 Ethernet ports at each end bridged with fiber. For legacy systems, each Ethernet port can be set for automatic speed detection (10/100/1000) or forced to 10 Mbit/s. Each port uses auto crossover detection or can be forced manually if needed. These functions are available using the dip switch located on the device.

Note: This system uses WDM and should only be used in point to point applications. WDM cannot be integrated into a CWDM system.

Features

• Bidirectional send and receive over single fiber link
• Supports standard ethernet inputs up to 1 Gbit/s
• Closed loop WDM fiber system
• 3 port ethernet switch (1 fiber, 2 electrical)
• Auto (10/100/1000) port speed detection
• Manually force 10Mbit/s electrical speed (if needed)
• Fiber transceiver speed always 1 Gbit/s
• Auto or manual electrical crossover selection
• Distances up to 10km(6.2 miles)* over singlemode fiber

Specifications

Ethernet (electrical) for each module:

• 2 x Ethernet ports, RJ 45 Connectors.
  • 10 BaseTUTP category 3,4 or 5 cable up to 328ft/100m (2 pairs)
  • 100 BaseTXUTP category 5 cable up to 328ft/100m (2 pairs)
  • 1000 BaseTXUTP category 5 cable up to 328ft/100m (4 pairs
• Auto detect bit rate (10/100/1000), or force to 10Mbit for each port (selectable)
• Automatic crossover detection or force manually for each port (selectable)
• Port speed / activity LED indication (next to Ethernet port)

Ethernet Optical I/O:

• EEE 802.3z
  • (1000BASE-X Gbit/s Ethernet over Fiber at 1Gbit/s (125 MB/s)

1 x fiber optic bidirectional connection

• Simplex LC/PC (Singlemode)

Optical TX Wavelength: (WDM)

• OET 1514 A = 1310nm (Singlemode)
• OET 1514 B = 1330nm (Singlemode)

Optical TX power:

• OET 1514 A -9dBm to -3dBm (Singlemode)
• OET 1514 B -9dBm to -3dBm (Singlemode)
• TX active LED on side of module

Optical RX Sensitivity

• OET 1514 A -24dBm (Singlemode)
• OET 1514 B -24dBm (Singlemode)
• RX active LED on side of module

Optical RX Wavelength (WDM)

• OET 1514 A = 1550nm (Singlemode)
• OET 1514 B = 1310nm (Singlemode)

Max. distance*

• 10km* (6.2 miles*) Singlemode

Power (each module)

• +12V DC @ 1.7W nominal – (supports 7 – 24V DC input range)
• Power Present LED on side of module

Physical Size: (including connectors) each module

• Metric:140mm x 42mm x 22mm
• Inches: 5.51” x 1.65” x 0.86”

Weight: (each module)

• 125g (4.4oz)

Operational Temperature Range:

• Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)
