Description

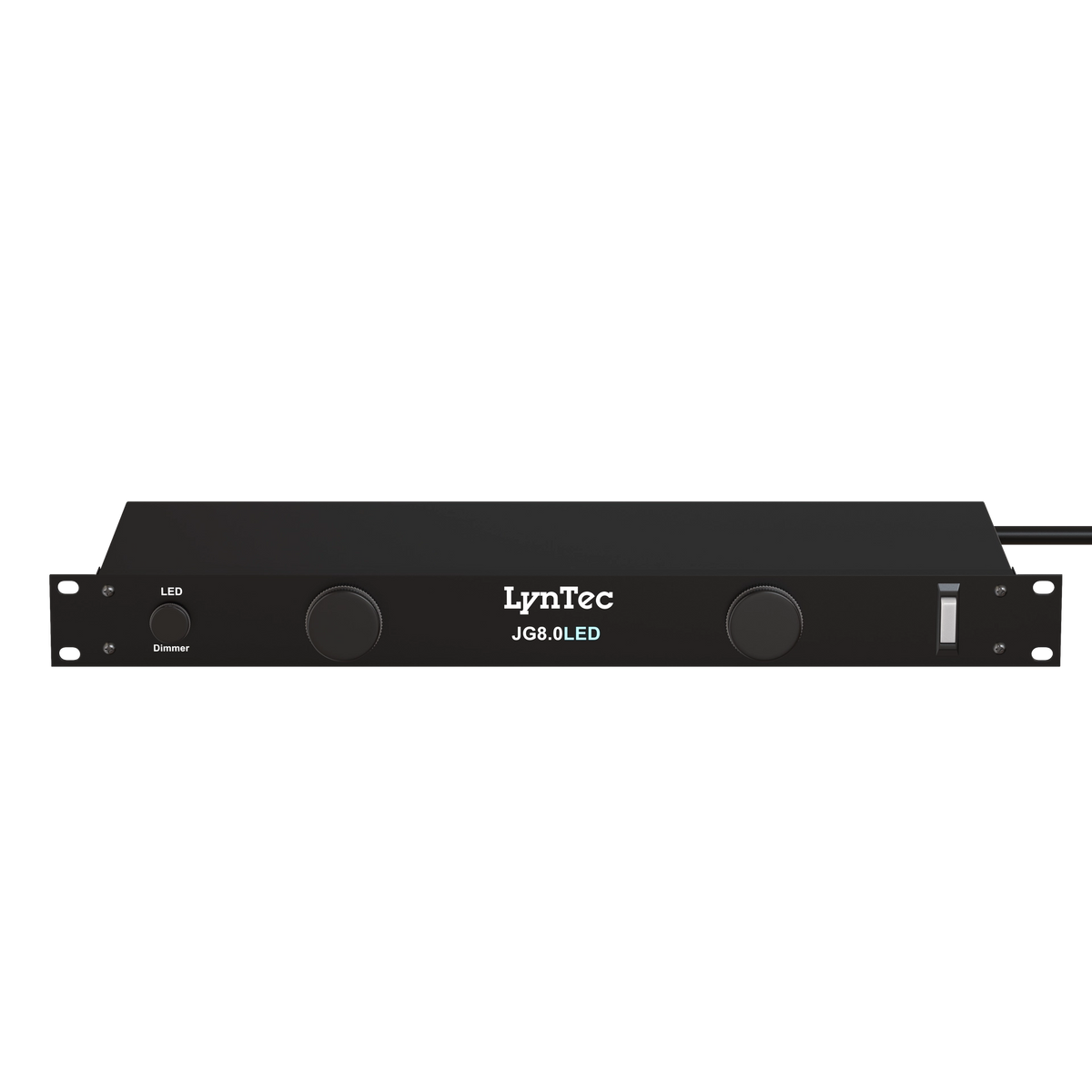

LynTec JG8LED 1U, 8 outlet, LED lights, base level spike and noise suppression
The JG 8LED is a commercial-grade rack power distribution unit with eight outlets, basic surge protection, and slide-out, dimmable LED task lighting. It is designed for integrators working in dark equipment racks who need reliable 15A power distribution combined with convenient, cool-running illumination for servicing.
RACK POWER AND LIGHT
Reliable rack power with integrated, dimmable LED lighting.
The Juice Goose JG 8LED simplifies installations by combining dependable power distribution with built-in, adjustable task lighting. Designed for poorly lit equipment racks and closets, it features two slide-out, dimmable LED light tubes that provide cool, targeted illumination right where it’s needed. The long-lasting LEDs are housed in durable aluminum tubes that can be rotated to direct the light, then retracted neatly into the chassis for storage.

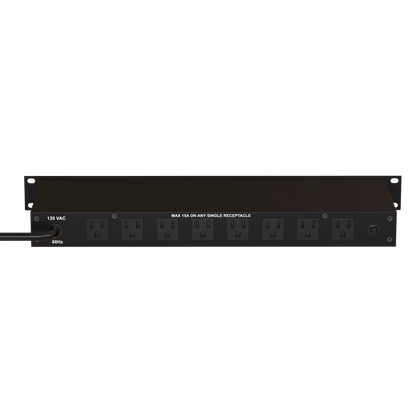

Beyond lighting, the JG 8LED is a robust power distribution unit. It provides eight rear outlets, rotated to accommodate bulky ‘wall wart’ power adapters without blocking adjacent receptacles. Basic onboard power conditioning includes spike and AC noise suppression to protect connected equipment, ensuring clean, stable power for your essential gear. It is a practical, essential accessory for any professional rack build.
Features
- Integrated LED Rack Lights: Two slide-out, dimmable LED tubes provide convenient, cool-running task lighting.

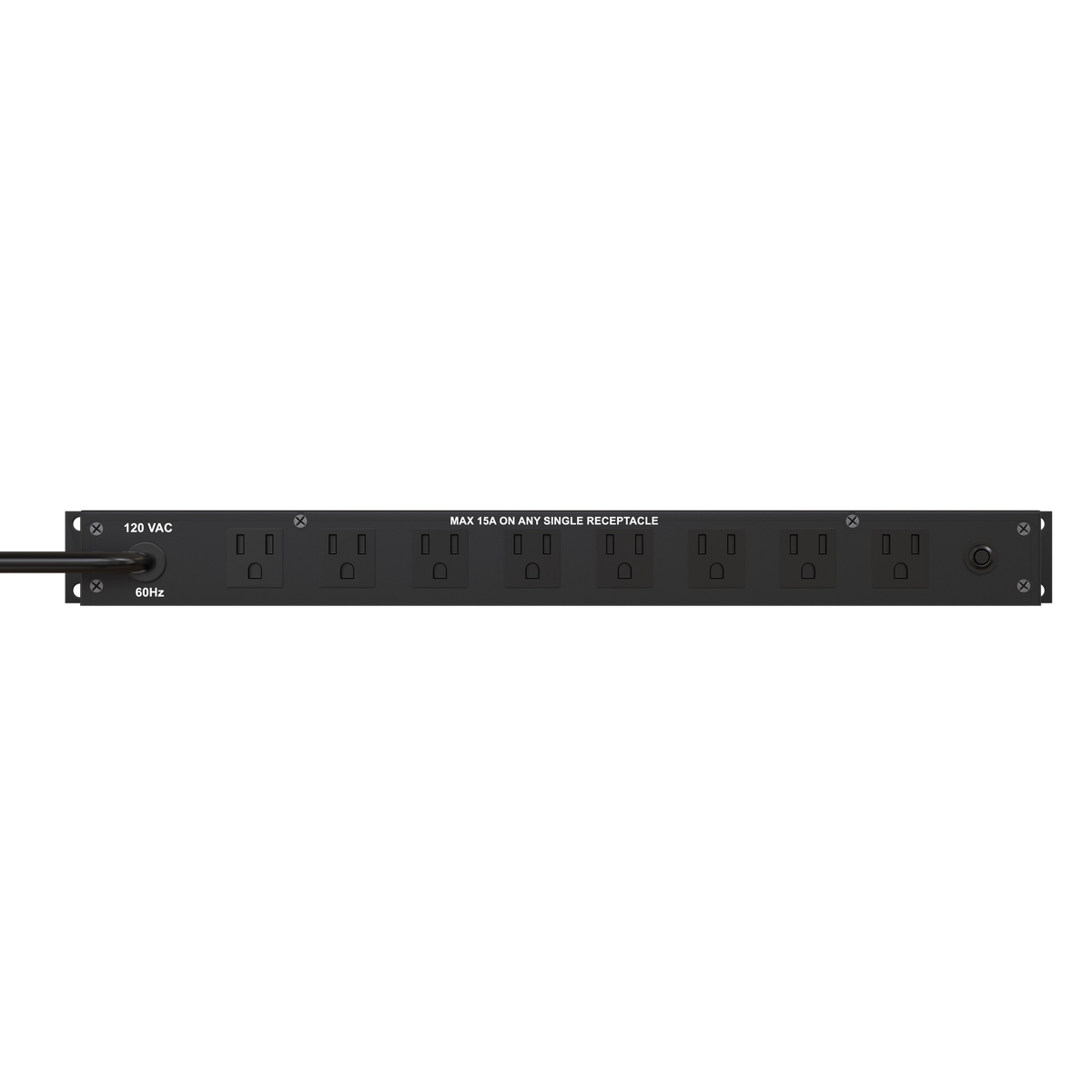

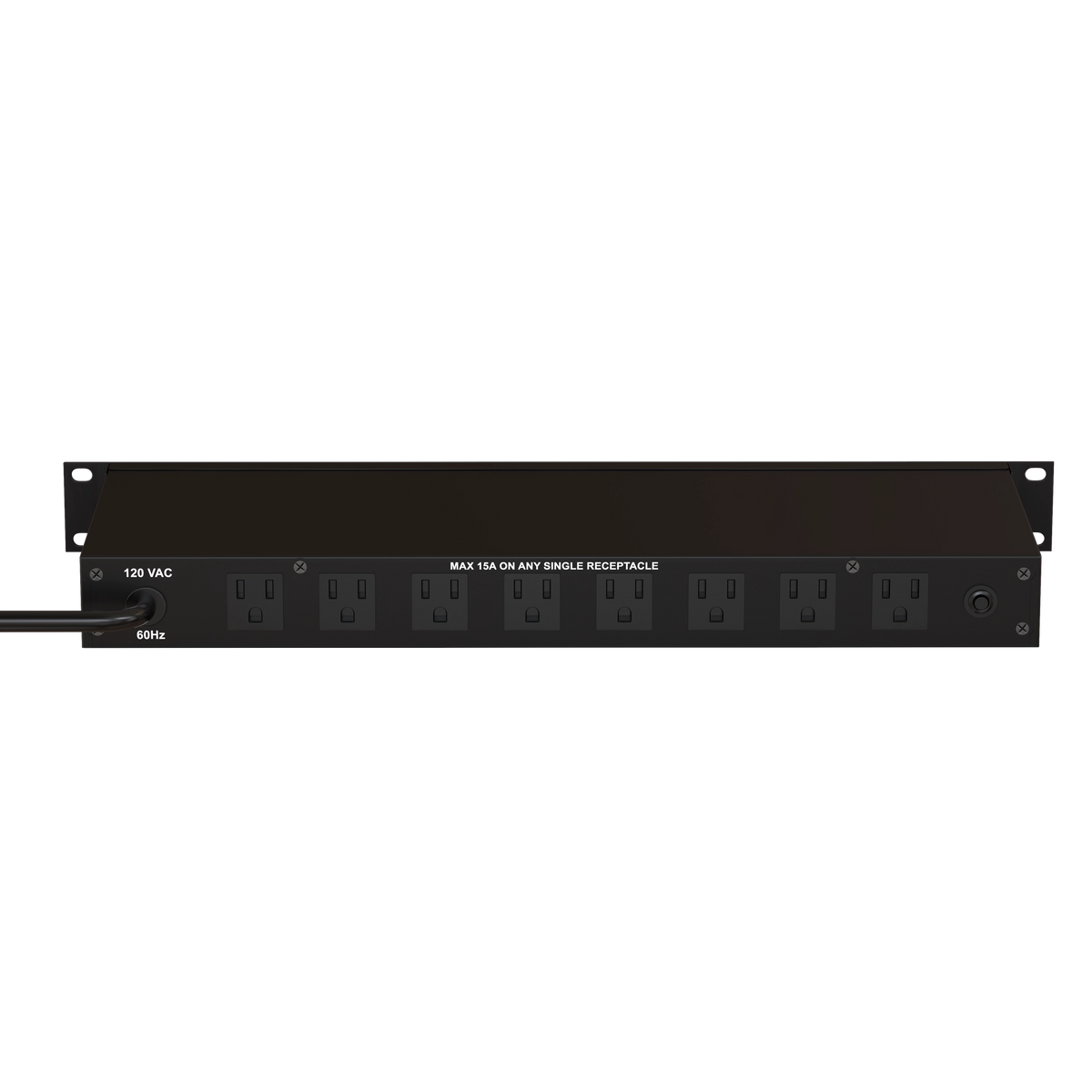

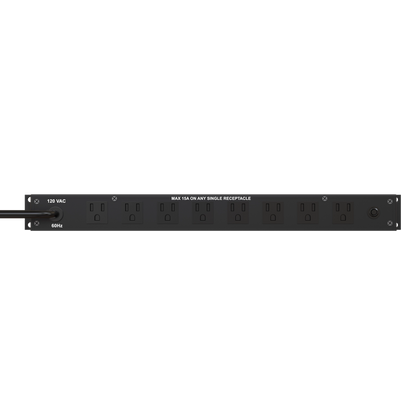

- Eight Rear Outlets: Provides ample connections for typical rack-mounted equipment in a single 1U space.

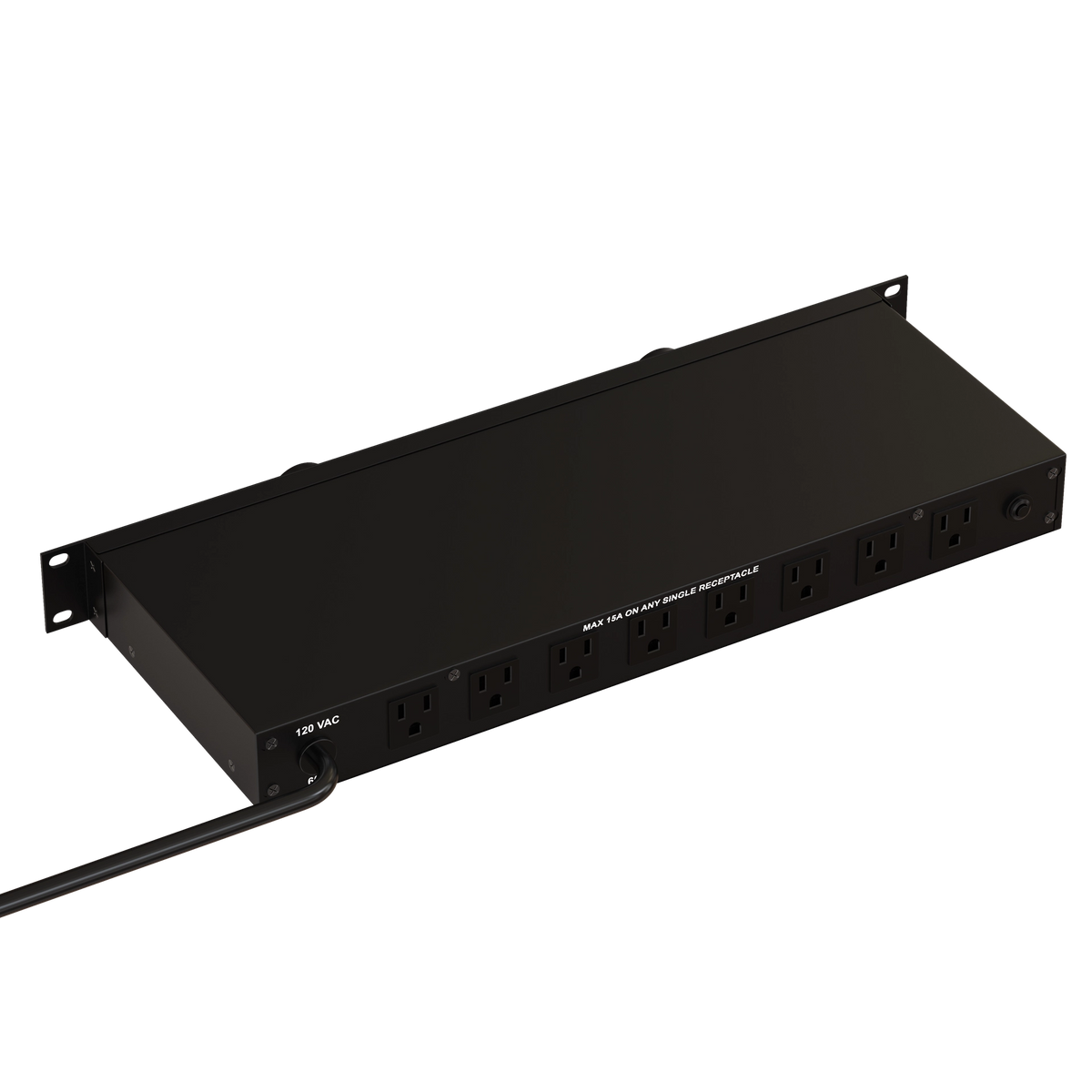

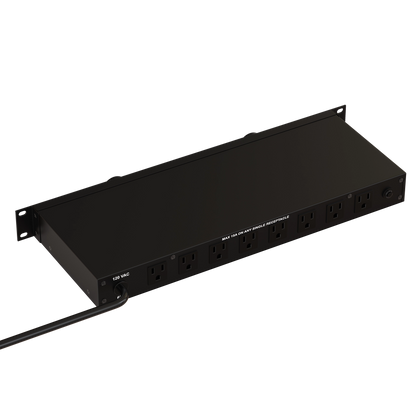

- Adapter-Friendly Layout: Rear outlets are rotated to easily accommodate bulky ‘wall wart’ style power supplies.
- Basic Power Conditioning: Onboard spike and AC noise suppression protects connected equipment from common power issues.

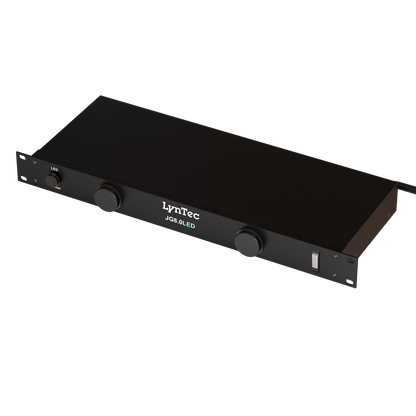

- Durable 1U Chassis: A robust, seven-inch deep steel chassis is designed for permanent rack installation.

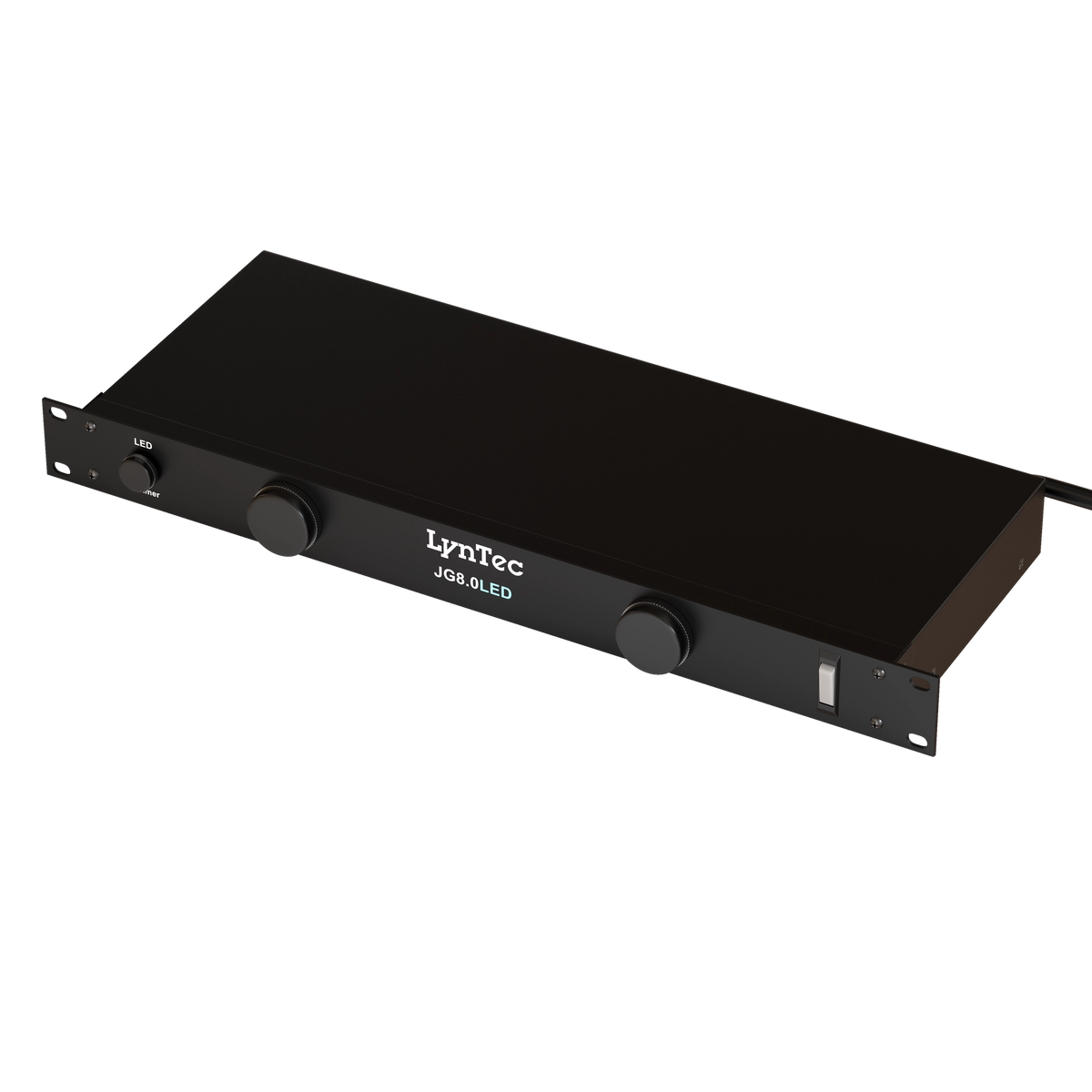

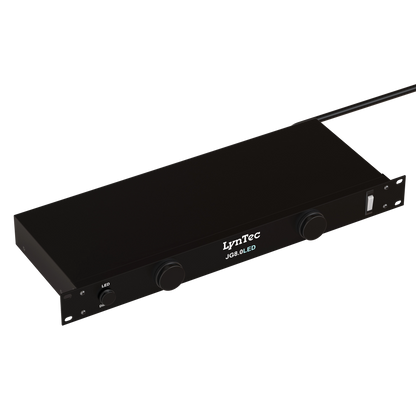

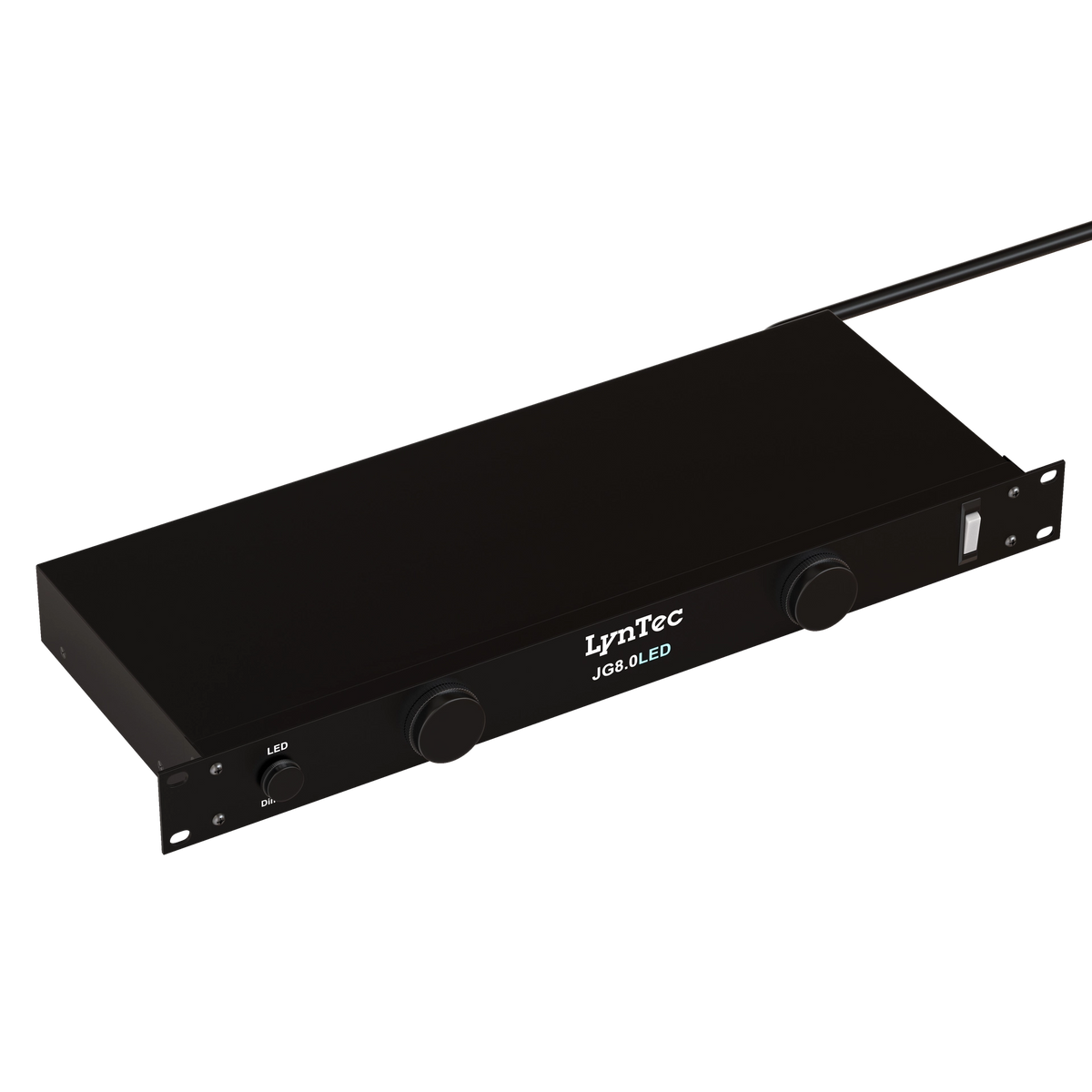

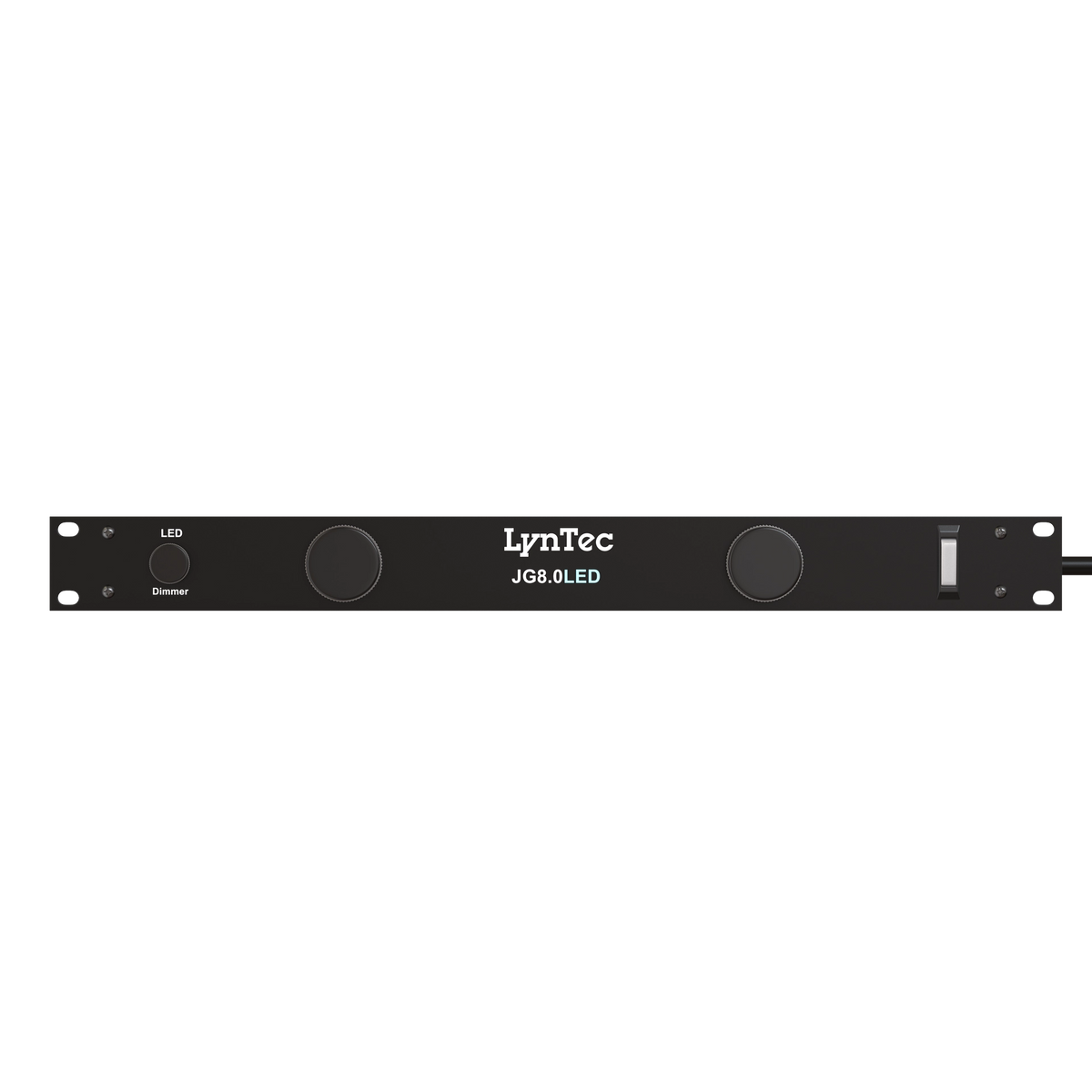

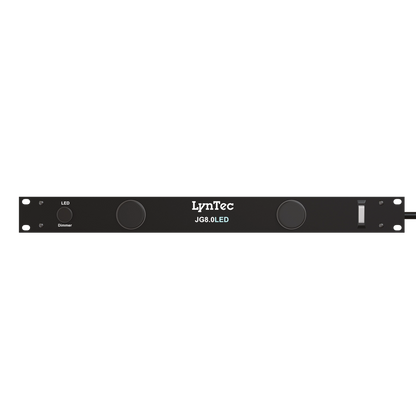

- Front Panel Control: A primary power switch and light dimmer control are located on the front for easy access.
Specifications
Electrical
- Input Voltage: 120 VAC, 60 Hz
- Maximum Current: 15A
- Outlets: 8 NEMA 5-15R, rear
- Power Cord: 6 ft, attached, NEMA 5-15P
- Protection: MOV spike clamp, AC noise filtering capacitor
Lighting
- Light Type: LED
- Features: Dimmable, Slide-out, Rotatable
- Control: Front panel dimmer knob
Physical
- Form Factor: 1U Rack-Mount
- Chassis: Steel, black powder coat
- Dimensions (W x D x H): 19 in x 1.75 in x 7 in
