Description

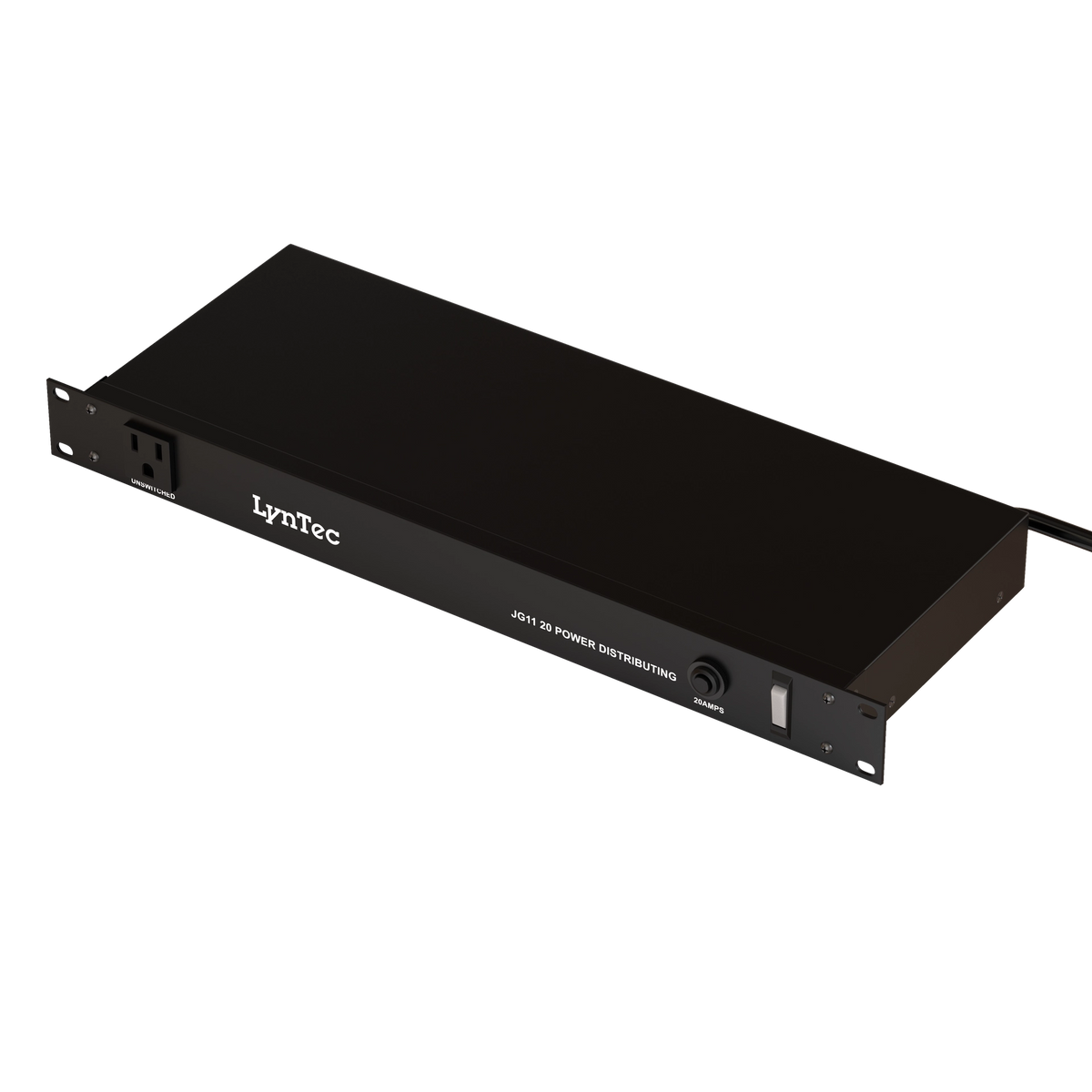

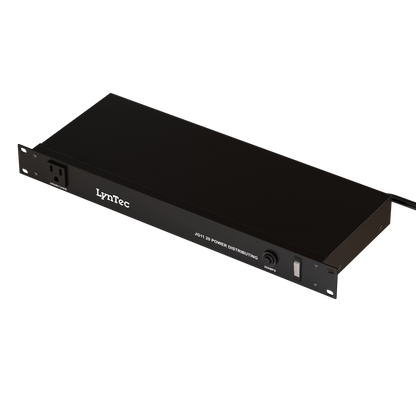

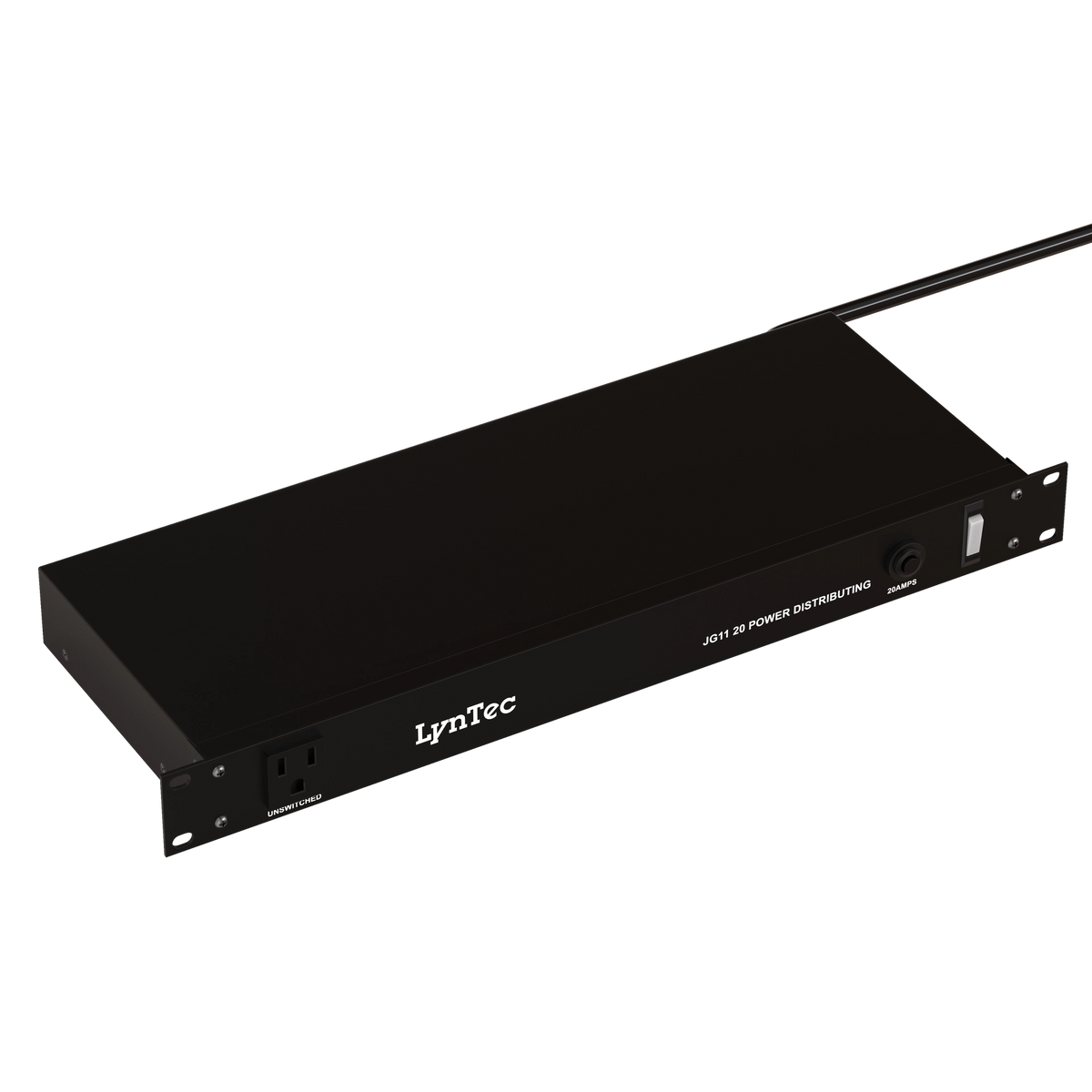

LynTec JG1120A 1U, 11 outlet, 15A, base level spike and noise suppression
The JG 11-20A is a commercial-grade rack power distribution unit with eleven outlets, basic surge protection, and a twenty-amp load capacity. It provides reliable, straightforward power management for AV racks in environments that require higher capacity than a standard fifteen-amp circuit can support.
POWER DISTRIBUTION
Reliable 20A power distribution for commercial racks.

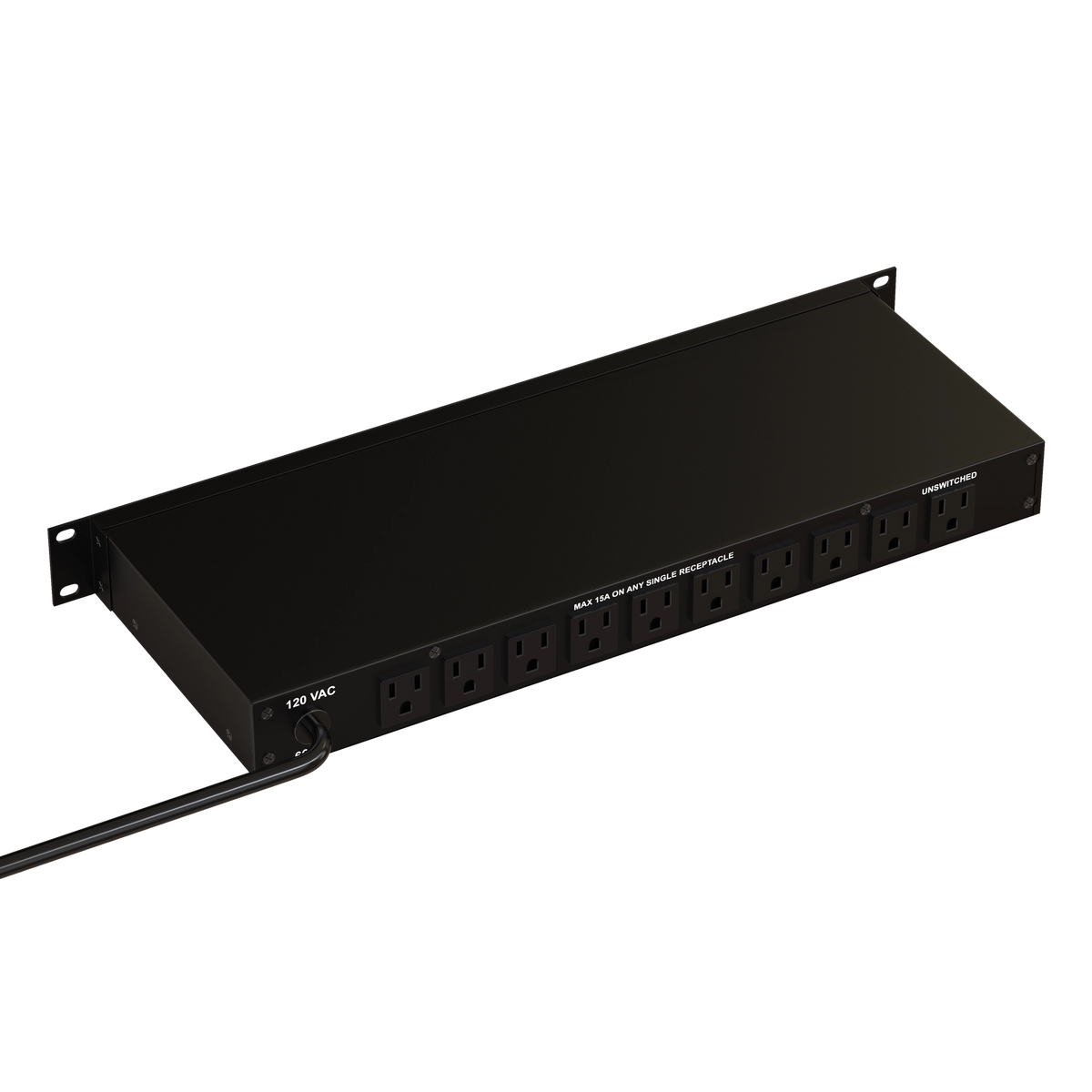

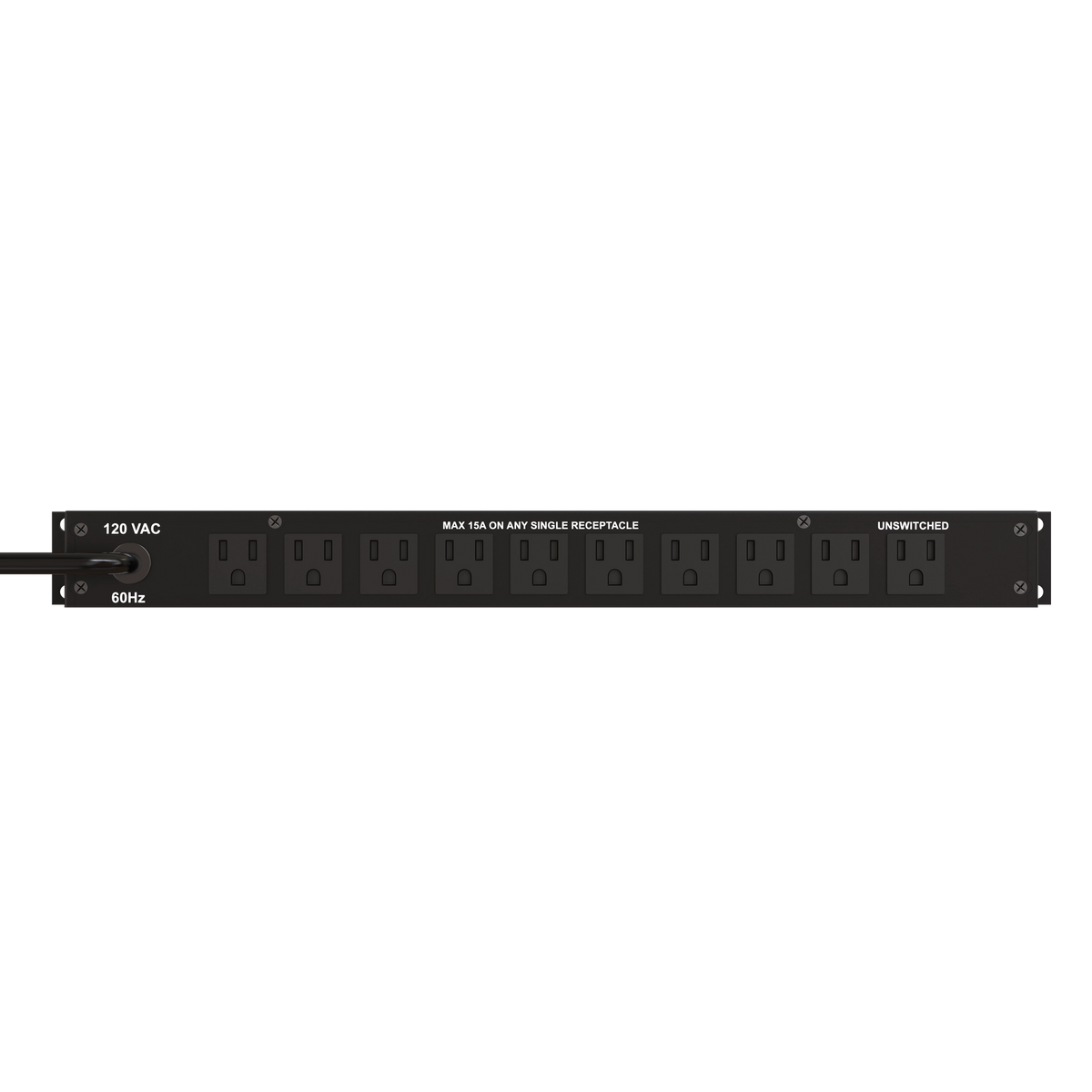

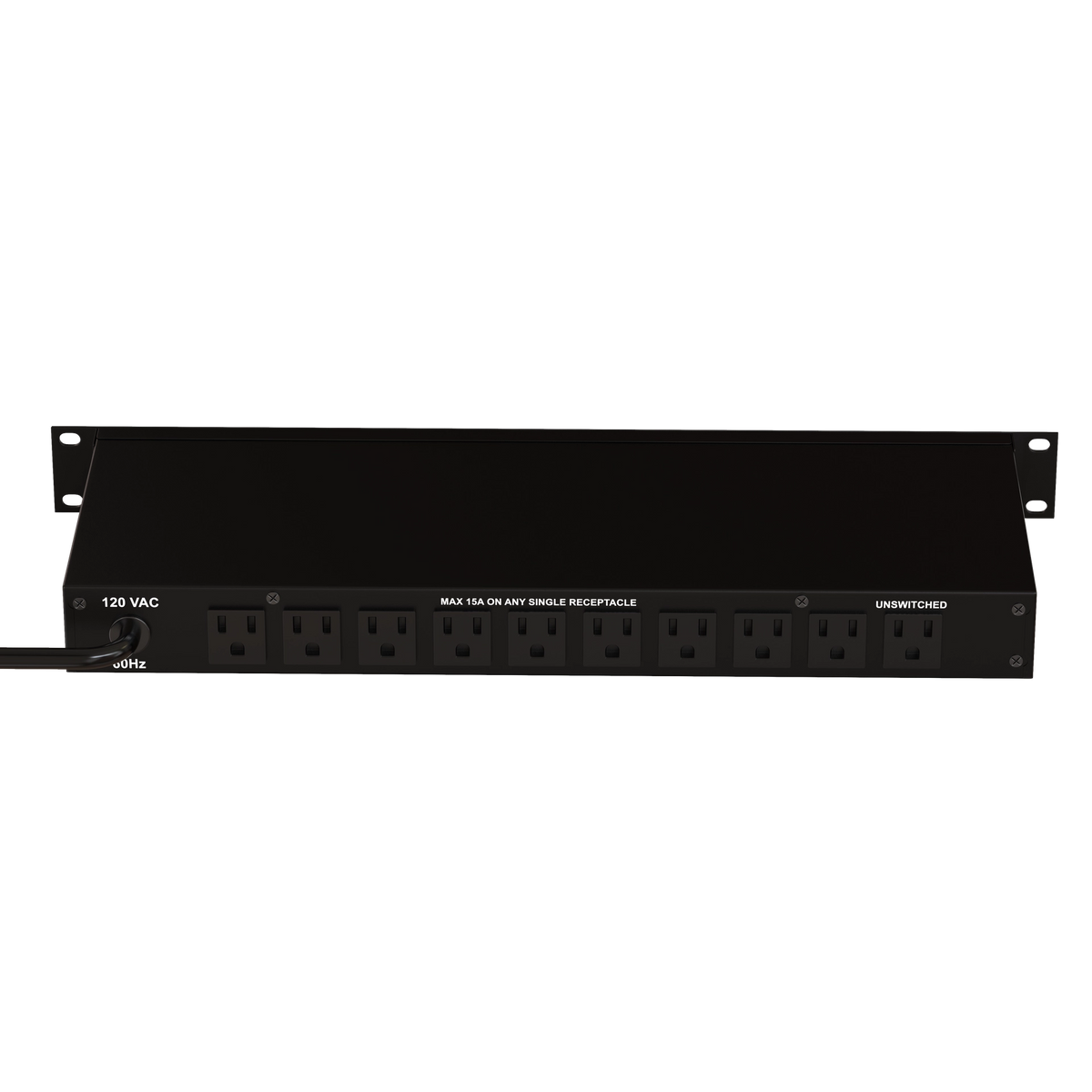

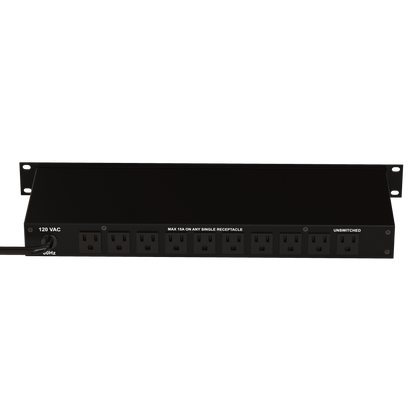

The JG 11-20A delivers straightforward, reliable power for commercial AV installations requiring a higher 20-amp capacity. This 1U rack-mount unit provides eleven total NEMA 5-15R outlets, with nine switched outlets on the rear panel and one unswitched outlet on both the front and back for always-on equipment. The outlets are rotated to easily accommodate bulky ‘wall wart’ power supplies without blocking adjacent receptacles.

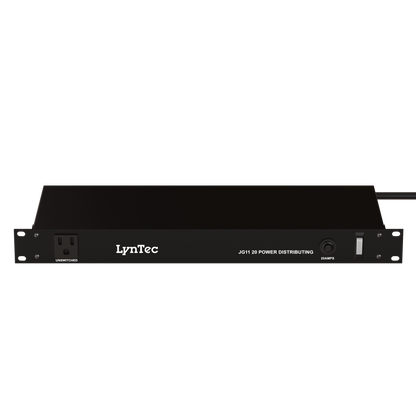

Engineered for simplicity and long-term use, the JG 11-20A includes essential protection against common power issues. An integrated MOV provides surge suppression against voltage spikes, while a built-in capacitor filters AC line noise. A front-panel primary switch and circuit breaker offer convenient control and protection, and the extra-long fifteen-foot power cord simplifies connection to distant wall outlets, making it a practical foundation for any equipment rack.
Features
- 20-Amp Capacity: Safely powers more equipment or higher-draw devices from a single 20A circuit.
- Eleven Total Outlets: Includes nine switched rear outlets, one unswitched rear, and one unswitched front outlet.
- Rotated Outlet Orientation: Accommodates bulky ‘wall wart’ style power adapters without blocking adjacent outlets.
- 15-Foot Power Cord: Provides extra length to easily connect to wall receptacles without extension cords.

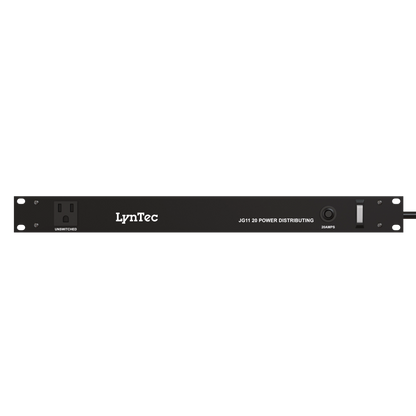

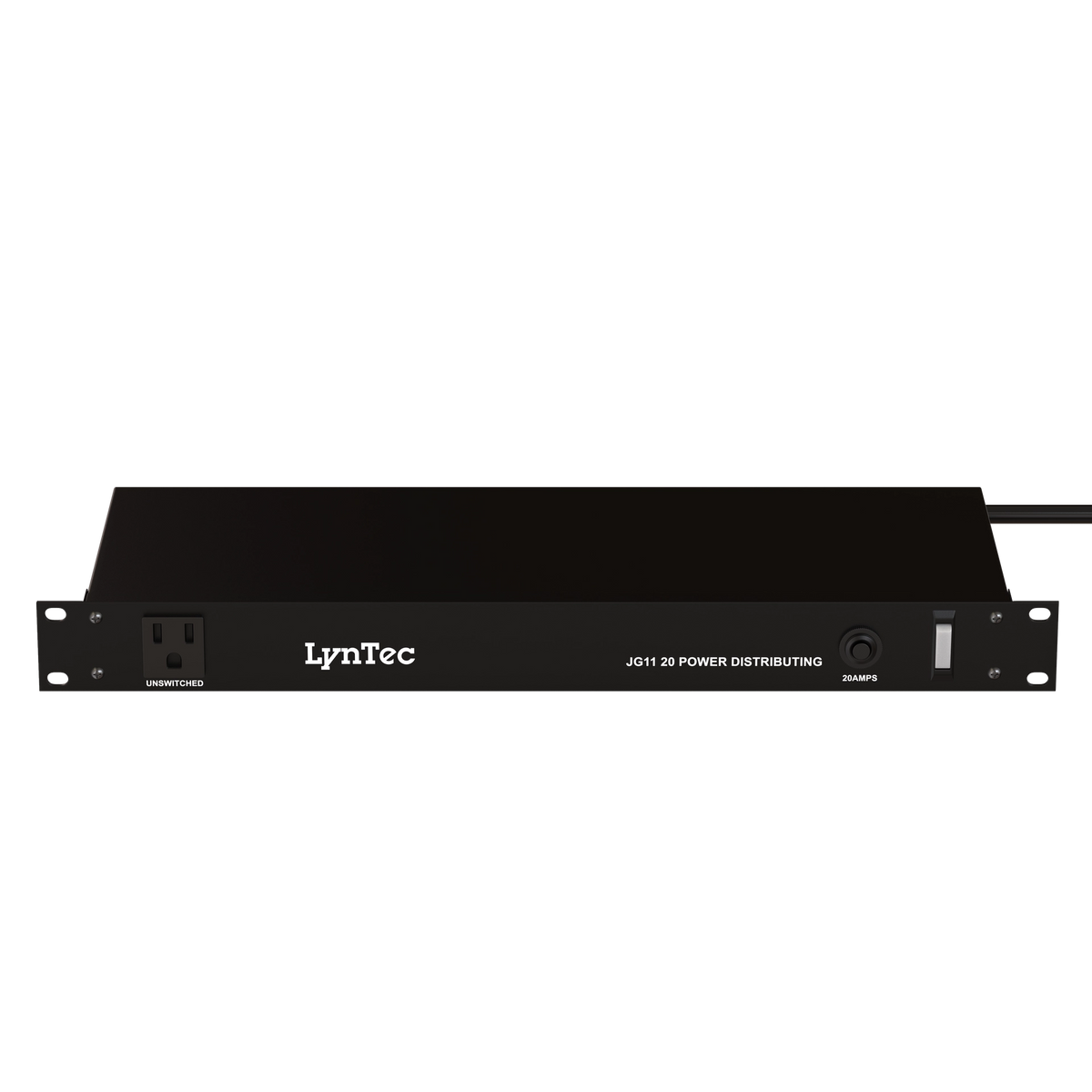

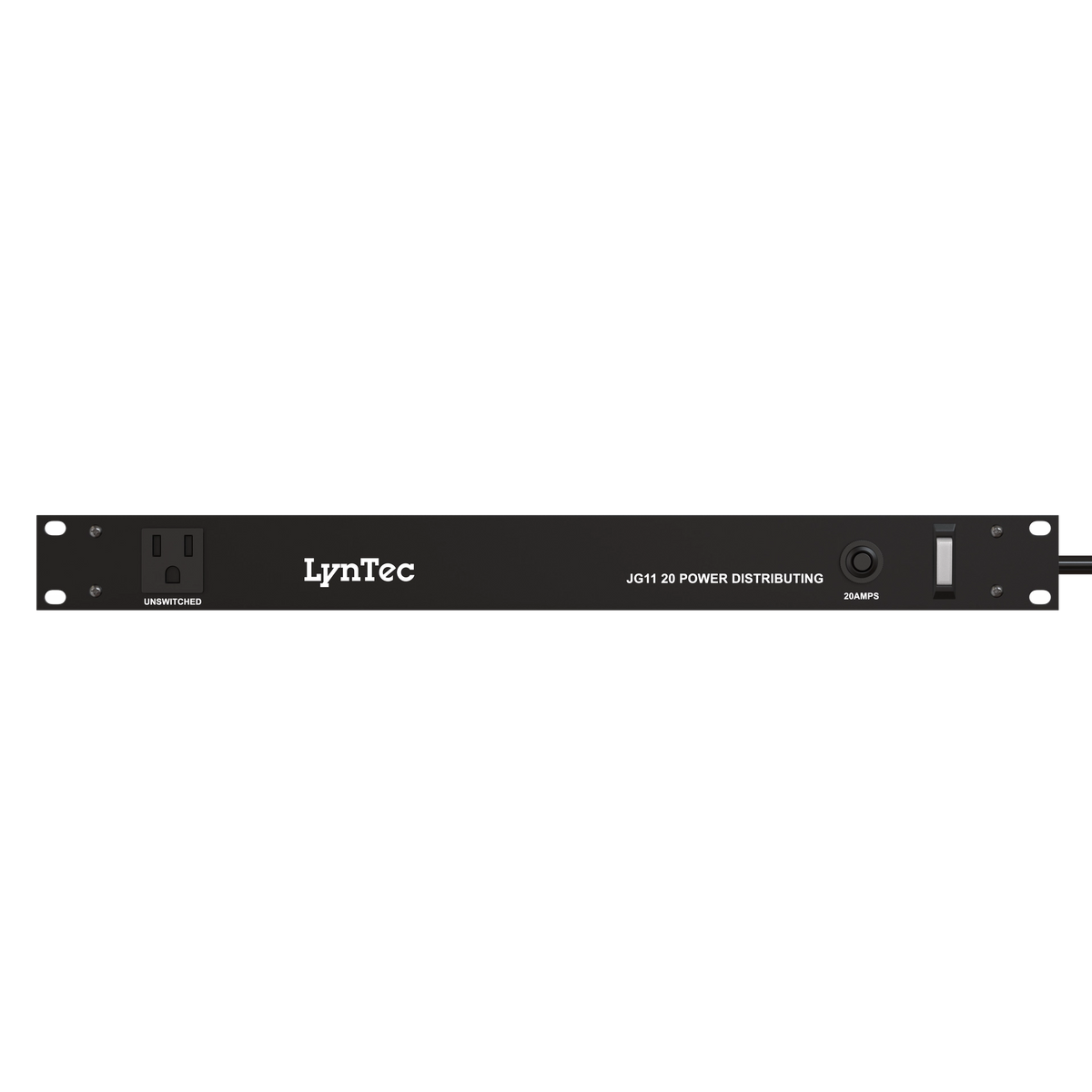

- Front Panel Control: Features a primary power switch and a resettable 20A circuit breaker for easy access.
- Basic Surge Protection: An internal MOV clamps voltage spikes to protect connected electronics.
- AC Noise Filtering: A built-in capacitor reduces interference on the AC line for cleaner power.
- Durable 1U Chassis: Steel construction designed for long-term reliability in commercial rack environments.
Specifications
Electrical
- Input Voltage: 120 VAC, 60 Hz
- Maximum Current: 20 Amps
- Power Cord: 15 ft, 12/3 SJT cord with NEMA 5-20P plug
- Outlets: 11 NEMA 5-15R (9 switched, 2 unswitched)
- Circuit Breaker: 20A, front panel, resettable
Protection
- Spike and Surge Suppression: MOV, Line to Neutral
- AC Line Noise Filtering: Capacitor, Line to Neutral
Physical
- Form Factor: 1U Rack-Mount
- Chassis: Steel, black powder coat finish
- Dimensions (W x D x H): 19.0 in x 7.0 in x 1.75 in
