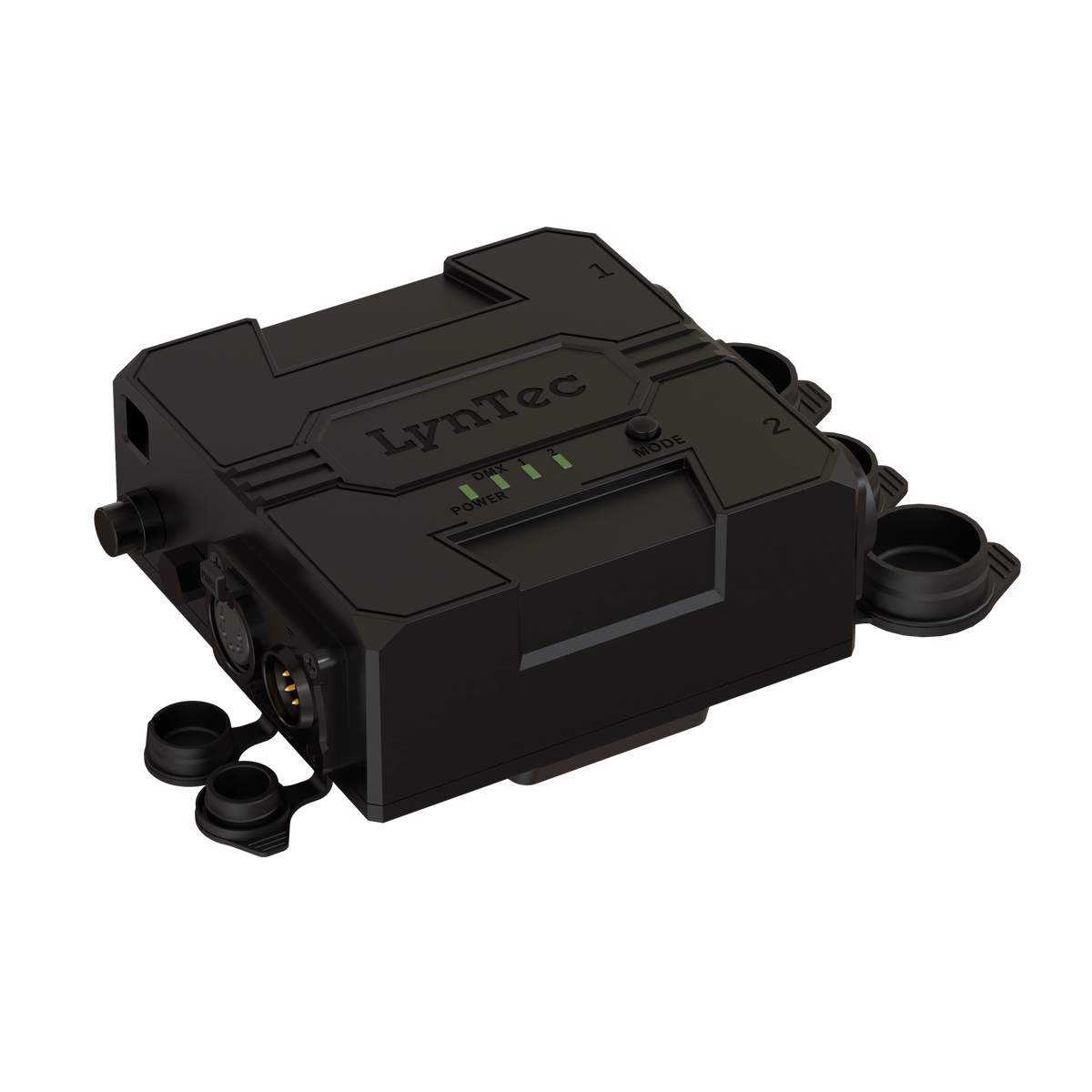

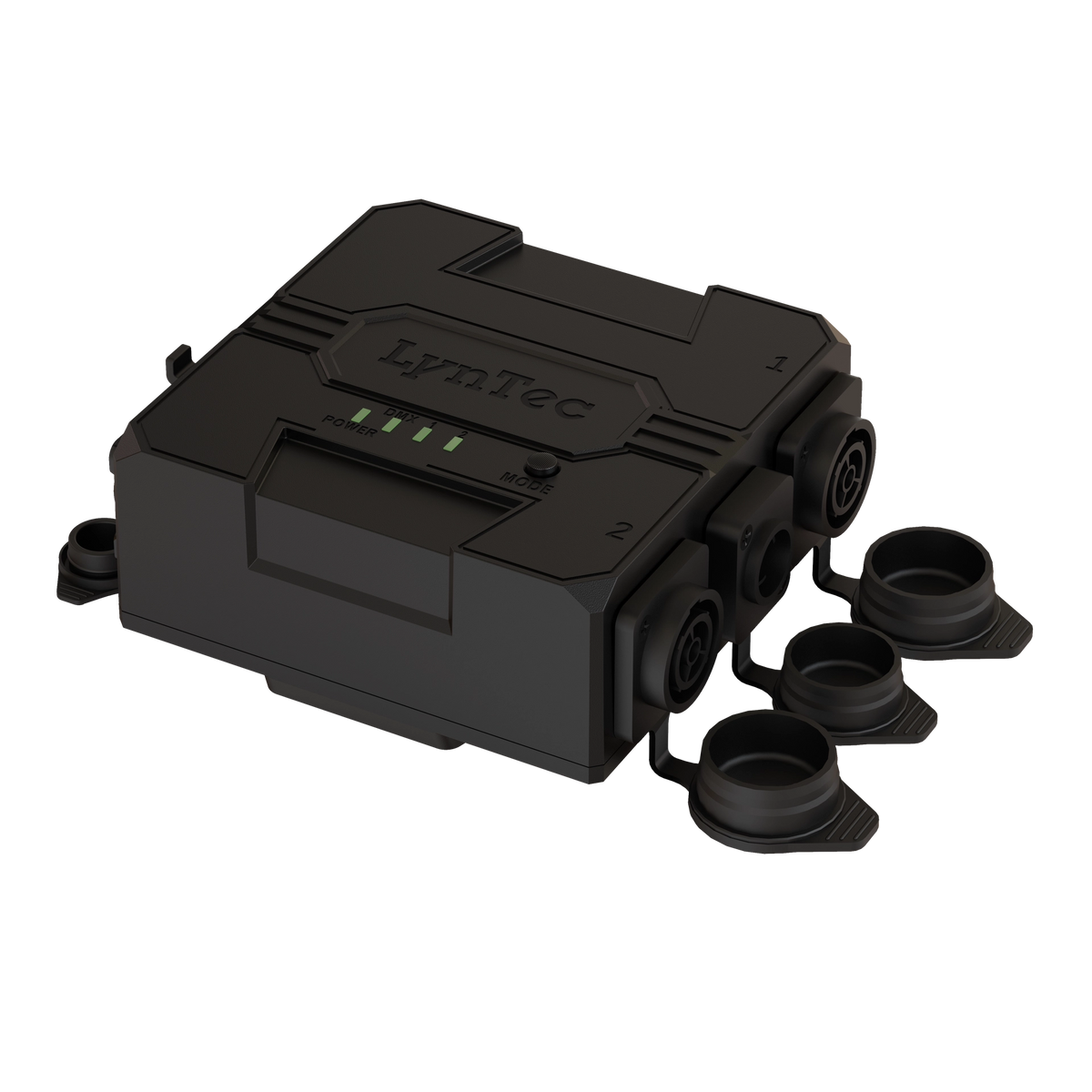

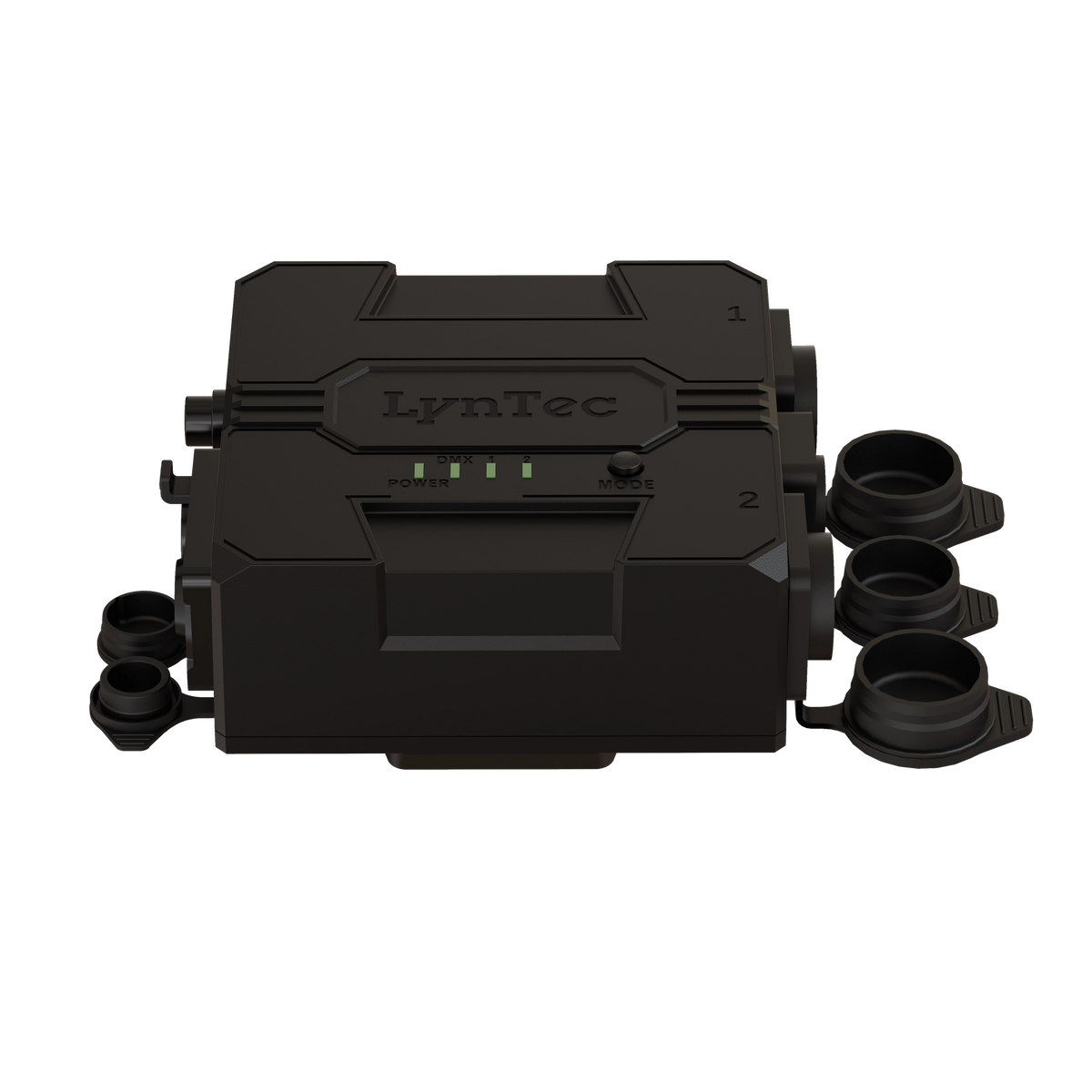

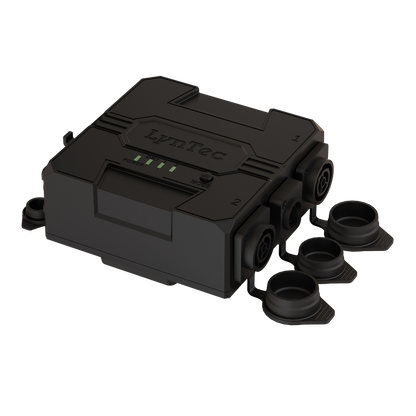

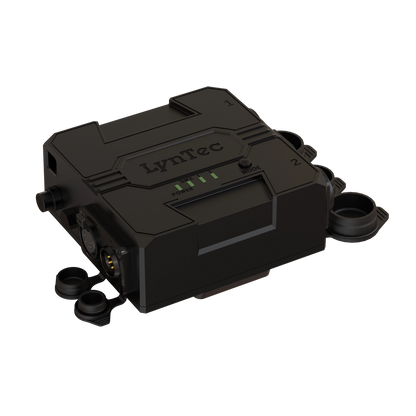

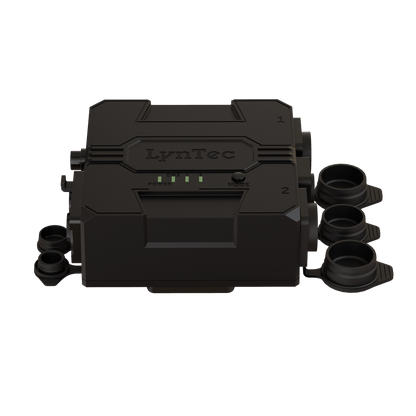

LynTec DMXDUALRELAY DMX Dual Relay

LynTec DMXDUALRELAY DMX Dual Relay

The DMX Dual Relay (DDR) is a compact, portable, and IP65-rated power control solution designed for rapid deployment in entertainment and AV environments. With a single 20-amp input (16-amp EU) feeding two independently controlled outputs, the DDR provides reliable switching for fixtures, projectors, distributed loads, and remote gear without running power back to a rack. DMX and RDM control ensures seamless integration with existing lighting networks, while its rugged housing and flexible mounting options make it ideal for touring, temporary installs, architectural uplighting, and outdoor events.

DMX POWER CONTROL

Reliable DMX power switching, anywhere you need it.

The DMX Dual Relay (DDR) delivers simple, reliable power control for distributed loads in a rugged, IP-rated enclosure. Built for the demands of touring, temporary installations, and architectural lighting, the DDR places two DMX and RDM controlled relays exactly where you need them. This eliminates long power runs back to a central rack, streamlining setup for fixtures, projectors, and other remote equipment.

With a single 20-amp input and flexible mounting options, the DDR integrates seamlessly into any existing lighting control network. It offers a practical, portable solution for AV integrators and lighting designers who require dependable switching in challenging indoor or outdoor environments.

SYSTEM INTEGRATION

Integrate the DDR into your lighting rig.

The DMX Dual Relay works with standard DMX control systems and a wide range of powered equipment.

DMX Lighting Consoles

Control switching directly from any lighting console or software that outputs standard DMX512.

RDM Controllers

Use any RDM-compatible controller to remotely set the DMX address and check device status.

Theatrical and Architectural Fixtures

Provides switched power for LED fixtures, conventional lights, and other powered scenic elements.

Distributed AV Equipment

Switch power for projectors, monitors, and powered speakers in remote or temporary locations.

Features

• Dual Switched Outputs: Provides two independently controlled relays from a single power input.
• 20-Amp Capacity: Handles a single 20A input (16-amp EU), suitable for a wide range of fixtures and AV gear.
• DMX and RDM Control: Integrates with standard lighting networks for remote switching and configuration.
• IP-Rated Enclosure: IP65 – Designed for reliable operation in temporary outdoor and architectural installations.
• Portable Form Factor: Compact and lightweight design allows for rapid deployment and flexible placement.
• Flexible Mounting: Easily mount to truss, scenery, or architectural elements for clean installations, using the M12 and M10 threads hole (clamp sold separately).

Specifications

DMX Dual Relay

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Input Service: 20A (16A EU)

• Output Channels: 2

• Output Control: Independent Mechanical Relay Switching

• Isolation

  • Between Open Contacts: 1500Vrms

  • Between Low-Voltage & Contacts: 4000Vrms

Relay

Endurance (per output):

• Resistive: 100,000 18A @ 250V

• Inductive: 100,000 1HP @ 125VAC

• Ballast: 6,000 20A @ 277VAC

• Standard Ballast Electronic: 100,000 30A @ 277VAC, General Purpose, 85°C

Control

• Connections: DMX In/Thru

• Input: 5-Pin XLR In

• Output: 5-Pin XLR Out (not self-terminating)

• DMX Channels: 2

• Protocols: DMX512A, RDM

• RDM configuration:
  • RDM Direct mode

  • DMX Address: (default: 1)

  • On Threshold: (default: 192(75%))

  • Off Threshold: (default: 64(25%))

  • Sense Mode Auto Off Timeout: (default: 5-minutes)

  • Sense Mode Auto On Timeout: (default: 1 second)

Physical

• Enclosure: Molded textured black plastic with integral safety connection point

• Mounting Options: Truss, Wall Mount, & Stackable

• Cooling: Convection cooled

• Weight: 1.1 lb (0.5 kg)

• Size: 6 x 5 x 2.3 in (153 x 127 x 57 mm)

Environmental

• IP Rating: IP65

• Startup Temperature: -4 °F to 113 °F (-20 °C to 45 °C)

• Operating Temperature: -22 °F to 113 °F (-30 °C to 45 °C)

Regulatory & Compliance

• Approvals: CE, MET, ROHS, FCC

• Regulatory Compliance: Conforms to UL 508 Certified to CSA C22.2 No. 14 cMETus Listed CE Compliant
• Warranty: 2 Years
