Description

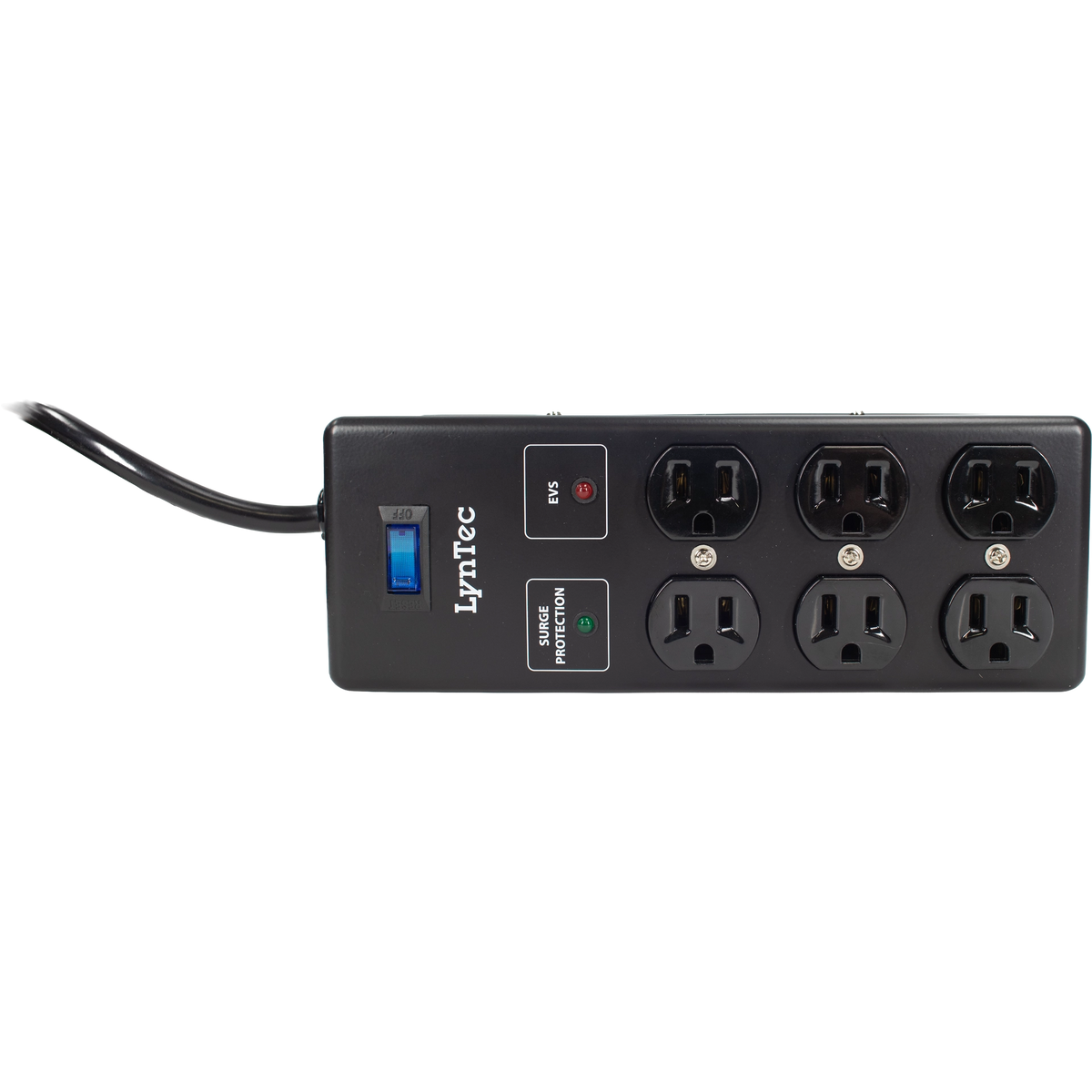

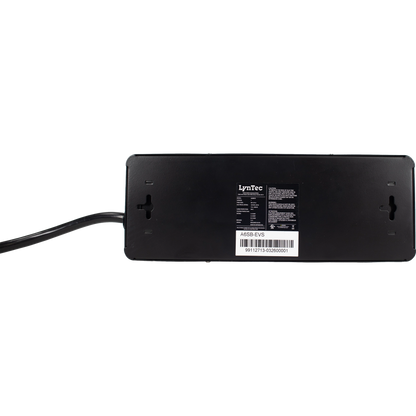

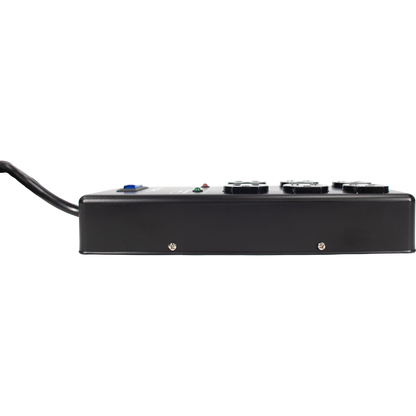

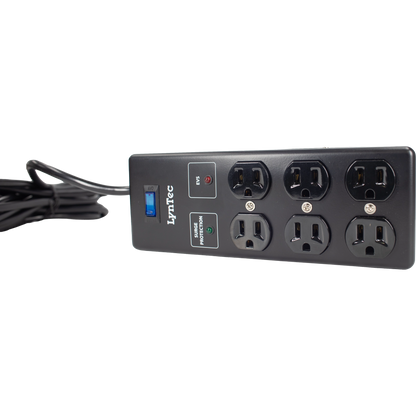

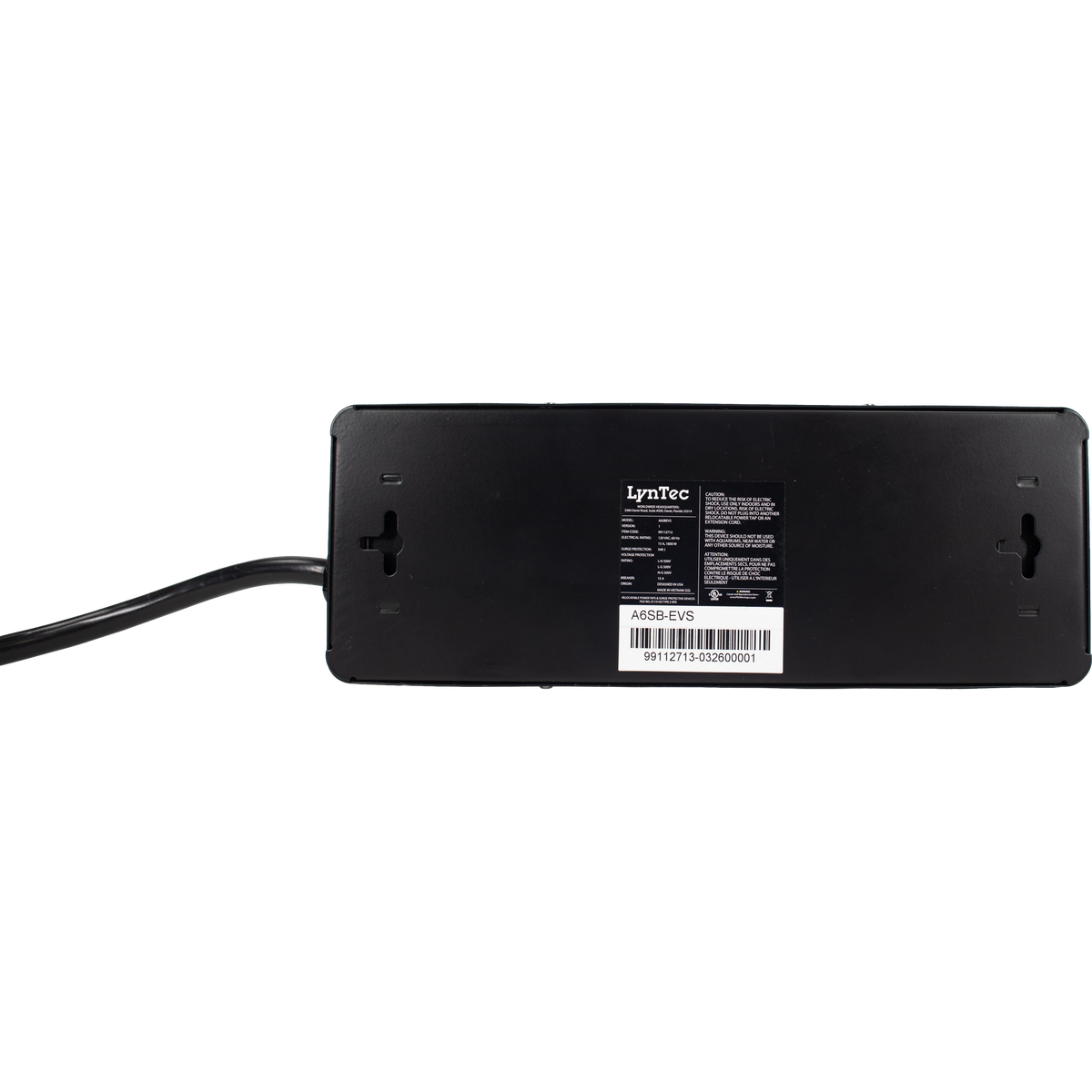

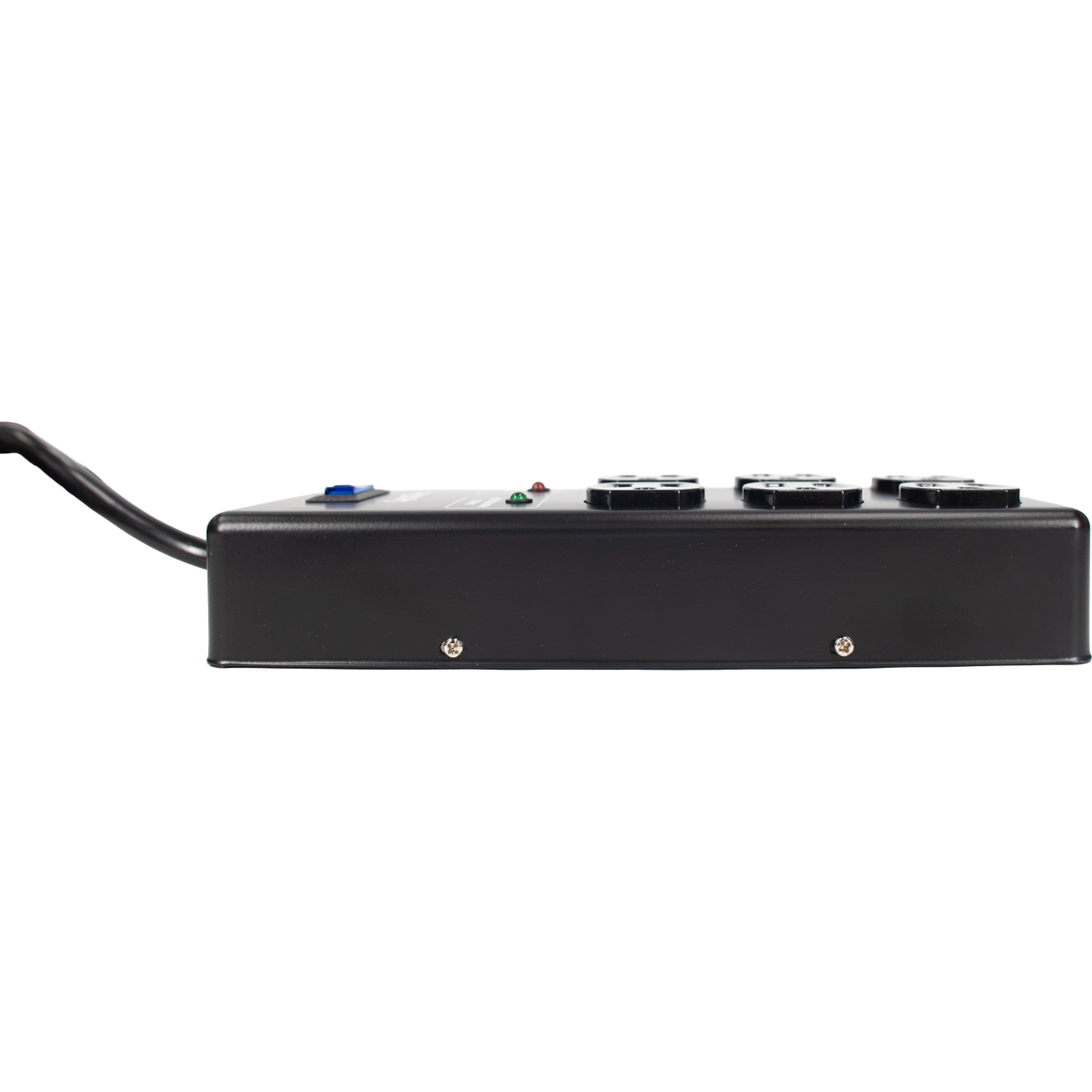

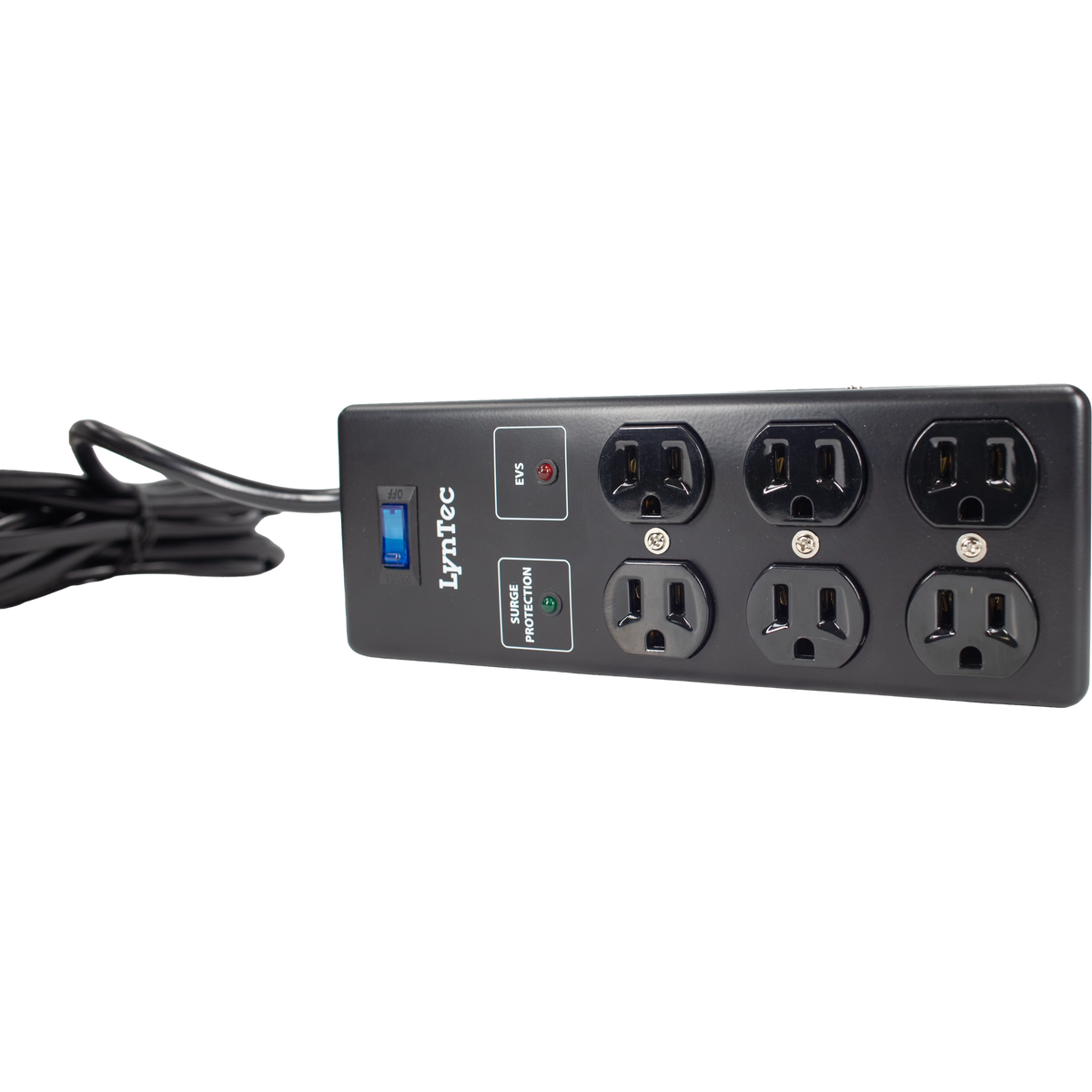

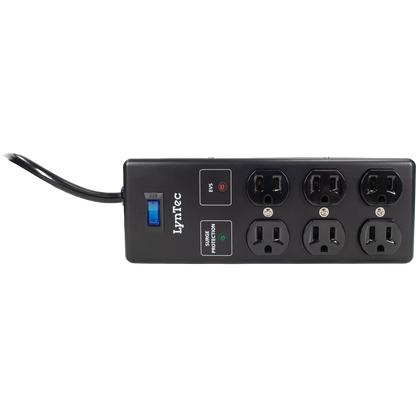

LynTec A6SB-EVS 6-outlet surge block, 15A, 2x3 configuration, EVS
The A6SBEVS provides power surge protection for up to 6 devices, totaling 15 Amps. It is capable of safeguarding sensitive electronics with 540 Joules of protection while also shielding downstream devices from prolonged overvoltage and undervoltage through its Extreme Voltage Shutdown (EVS) feature. A 15 ft. heavy-duty power cord adds flexibility for installation, and a 40dB noise filter ensures clean video and audio recording. The A6SBEVS serves as indispensable power protection and distribution for nearly any pro A/V environment.
POWER CORD
Compact power strip with surge suppression and EVS.
The A6SBEVS is a compact, 6-receptacle power strip in 2×3 configuration designed for professional audio, video, and lighting power distribution. Featuring surge protection and EVS, the A6SBEVS brings power distribution and protection to your stage, studio, or workstation.
Features
- Devices Supported: Power up to 6 devices totaling up to 15Amps
- Surge Protection: 540J of protection to safeguard sensitive electronics
- Protection: Extreme Voltage Shutdown (EVS) protects devices from out-of-spec power
- Cable Length: Heavy-Duty 15ft power cord
- Filtering: 40dB of noise filtering for clean video and audio
- Indication: LED indicator for surge protection
Specifications
- Output Connector: NEMA 5-15R (6 receptacles)
- Input Connector: NEMA 5-15P
- Max surge protection: 540 J
- Cable length: 15ft (4.6m)
- EMI / RFI noise filter: 40 dB
- Rated Voltage: 120 V
- Max capacity: 15 A
- Overcurrent Protection: Breaker Switch
- Max spike current: 36,000 A
- Max spike voltage: 6 kV
- Approvals: UL
- UL clamping voltage: 400 V
- EVS Shutoff Thresholds: > 140 +/- 7 VAC, < 95 +/- 5 VAC
- Dimensions: 9.5” x 3.5” x 1.5”
