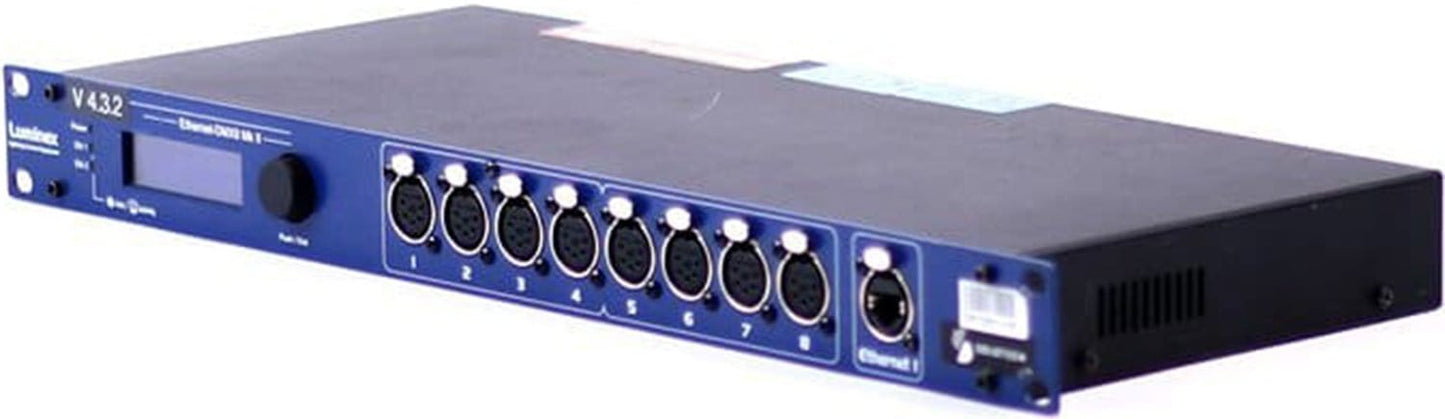

Luminex DMX8MKII DMX Network Data Converter
The Ethernet-DMX8 MkII is the 8 port edition of the Ethernet-DMX converter range. The unit serves 8 shielded DMX outlets, that can be used as input or output, and also offers two Ethernet ports (front and rear) for an easy network connection with a graphical display for a better settings visualization.
Specifications:
- Dimensions:
- 482 x 183 x 44 (mm)
- 19” x 7,2” x 1,73”
- Package: 520 x 235 x 50 (mm)
- Weight: 2,3 kg
- Electrical
- Voltages: 90 – 260 VAC
- Frequency: 47 – 63 Hz
- Rated power: 20 W
- Fuse: 125V – 250V, 1A, Slow blow only (5mm x 20mm)
- Connectors
- 2 x shielded Neutrik RJ45 Ethercon connector(front and rear for Ethernet-DMX8 MkII)
- 8 x shielded Neutrik gold plated 5 pin XLR (female)
- 8 x optic and galvanic isolated DMX port
- 1 x IEC inlet with fuse holder (Rack version only)
- 1 x Neutrik Powercon inlet (Truss version only)
- Environmental
- Operating temperature: 0 ~ 60°C (32 ~ 140°F)
- Storage temperature : -10 ~ 70°C (14 ~ 158°F)
- Humidity: 5-95% non condensing
