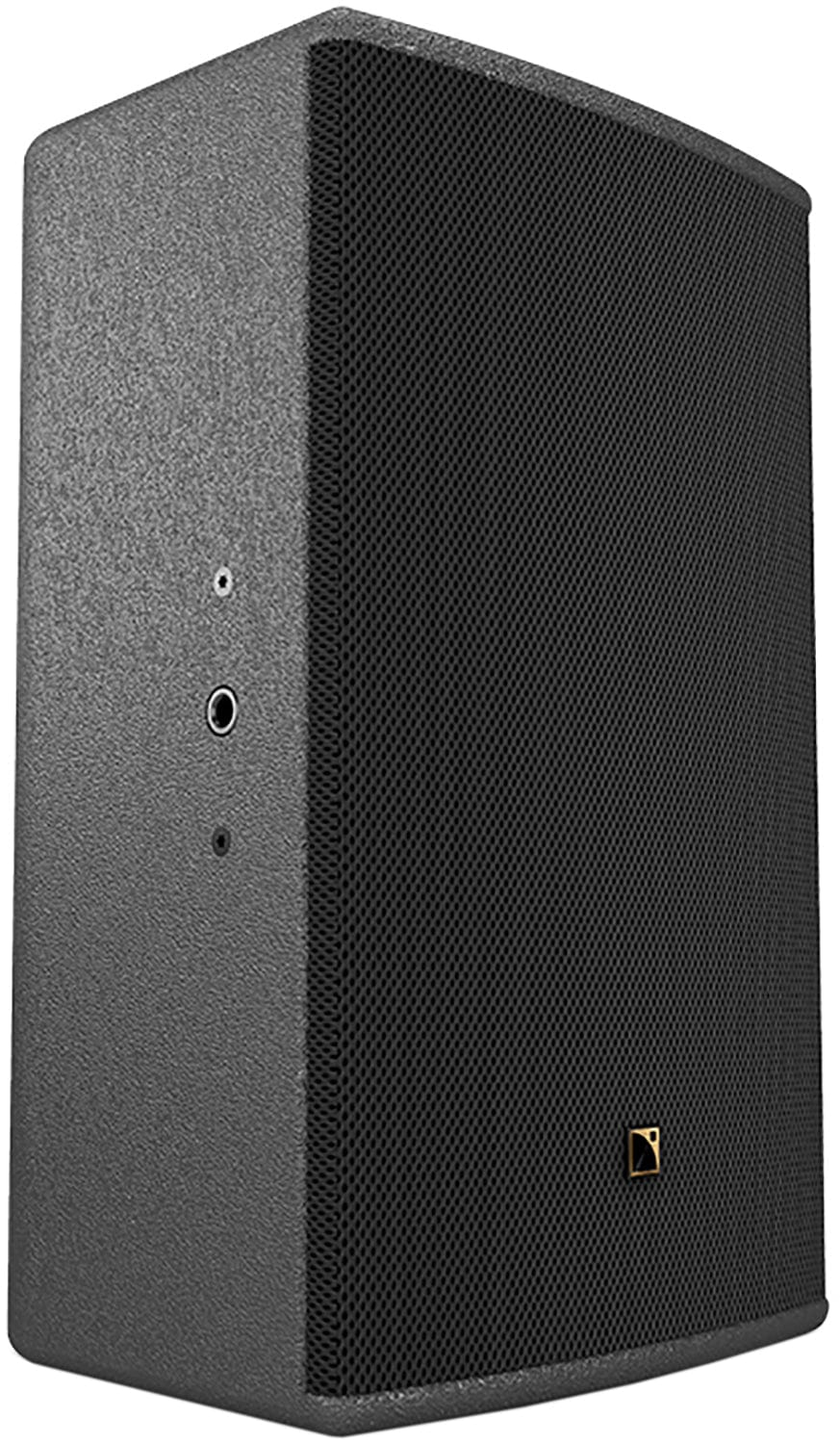

L-Acoustics X8WR Passive 2-Way Coaxial Speaker - Weather Resistant

2-way passive enclosure with a premium 1.5 in diaphragm compression driver coaxially loaded by a 8 in low-mid frequency transducer mounted in a bass-reflex cabinet. The enclosure cabinet is constructed of premium grade Baltic beech and birch plywood. The enclosure front is protected by a coated steel grill and an acoustically transparent fabric. The enclosure integrates an ergonomic handle and a 35 mm pole mount socket. The enclosure provides an angle setting of 35 degrees for stage monitoring. Dedicated accessories ensures wall-mount, ceiling-mount and flown configurations in vertical and horizontal orientations. The enclosure integrates four M10 threaded inserts for external rigging elements and a DIN580-compatible M8 threaded insert for safety. Exclusively driven and protected by a proprietary amplified controller through a dedicated preset.

Features:

• Pristine studio sound quality with L-Acoustics sonic signature
• Extended bandwidth in compact format
• Smooth off-axis response with COAXIAL technology
• Clear low-frequency power with L-VENTS™

Specifications:

• Coverage (-6 dB):
  • Nominal directivity: 100° axisymmetric
  • Monitoring angle: 35°
• Transducers:
  • LF transducer: 8" cone driver
  • HF transducer: 1.5" diaphragm compression driver
• Acoustics:
  • Nominal impedance: 8 Ω
  • Usable bandwidth: 60 Hz - 20 kHz (-10 dB), 65 Hz - 20 kHz (-6 dB), 70 Hz - 20 kHz (-3 dB)
  • RMS power handling (Calculated using the mean impedance measured on the usable bandwidth): 211 W
  • Maximum SPL: 129 dB (Peak level measured at 1 m under free field conditions using pink noise with crest factor 4)
• Physical data:
  • Acoustical load: bass-reflex
  • Cabinet: premium grade Baltic beech and birch plywood
  • Dimensions (W, H, D): 250 mm, 424 mm, 264 mm / 9.8 in, 16.7 in, 10.4 in
  • Weight (net): 12 kg / 26.5 lb
  • Connectors: 2 × 4-point speakON
  • IP: IP43
