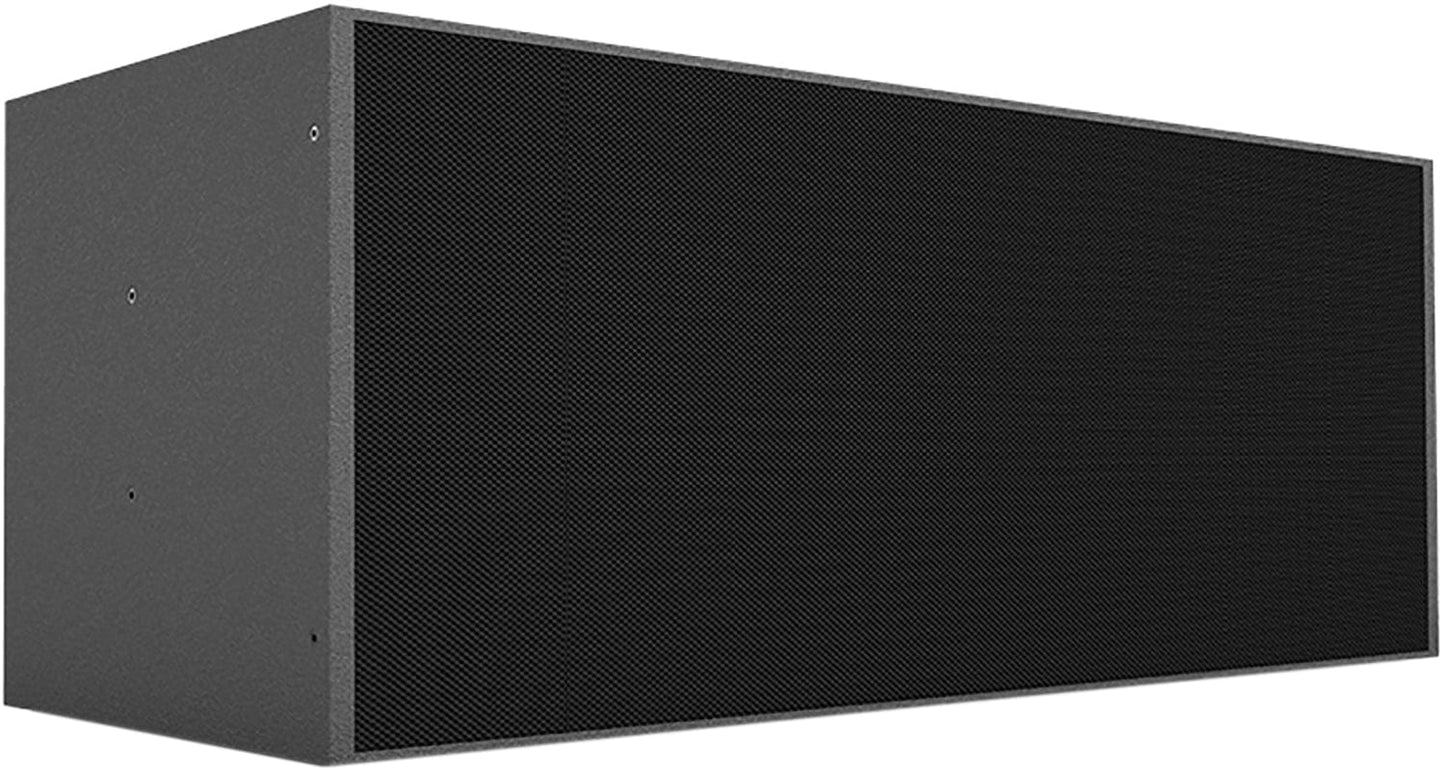

L-Acoustics SYVA SUB RAL Infra Subwoofer 1x 12-Inch LF - RAL

Passive subwoofer with a high-excursion, direct-radiating 12 in transducer mounted in a bass-reflex tuned enclosure with laminar vents for increased LF efficiency. The enclosure cabinet is constructed of premium grade Baltic beech and birch plywood. The enclosure front is protected by a coated steel grill and an acoustically transparent fabric. The enclosure integrates a signal connector on the top panel to connect to the companion full-range enclosure. Exclusively driven and protected by a proprietary amplified controller through a dedicated preset.

Features:

• Clear and solid foundations with infra-low frequency limit
• Clear low-frequency power with L-VENTS™
• Designed to melt into any venue decor

Specifications:

• Coverage:
  • Enclosure directivity: standard
• Transducers:
  • LF transducer: 1 × 12" cone driver
• Acoustics:
  • Nominal impedance: 8 Ω
  • Usable bandwidth: 27 Hz - 120 Hz (-10 dB), 29 Hz - 100 Hz (-6 dB), 33 Hz - 80 Hz (-3 dB) / 29 Hz - 200 Hz (-10 dB), 32 Hz - 150 Hz (-6 dB), 37 Hz - 105 Hz (-3 dB)
  • RMS power handling (Calculated using the mean impedance measured on the usable bandwidth): 250 W
  • Maximum SPL: 128 dB Peak level at 1 m under half space conditions using pink noise with crest factor 4
• Physical data:
  • Acoustical load: bass-reflex
  • Cabinet: premium grade Baltic beech and birch plywood
  • Dimensions (W, H, D): 849 mm, 334 mm, 350 mm / 33.4 in, 13.1 in, 13.8 in
  • Weight (net): 27 kg / 60 lb
  • Connectors:
    • 1 × 4-point speakON
    • 1 x proprietary connector
  • IP: IP55
