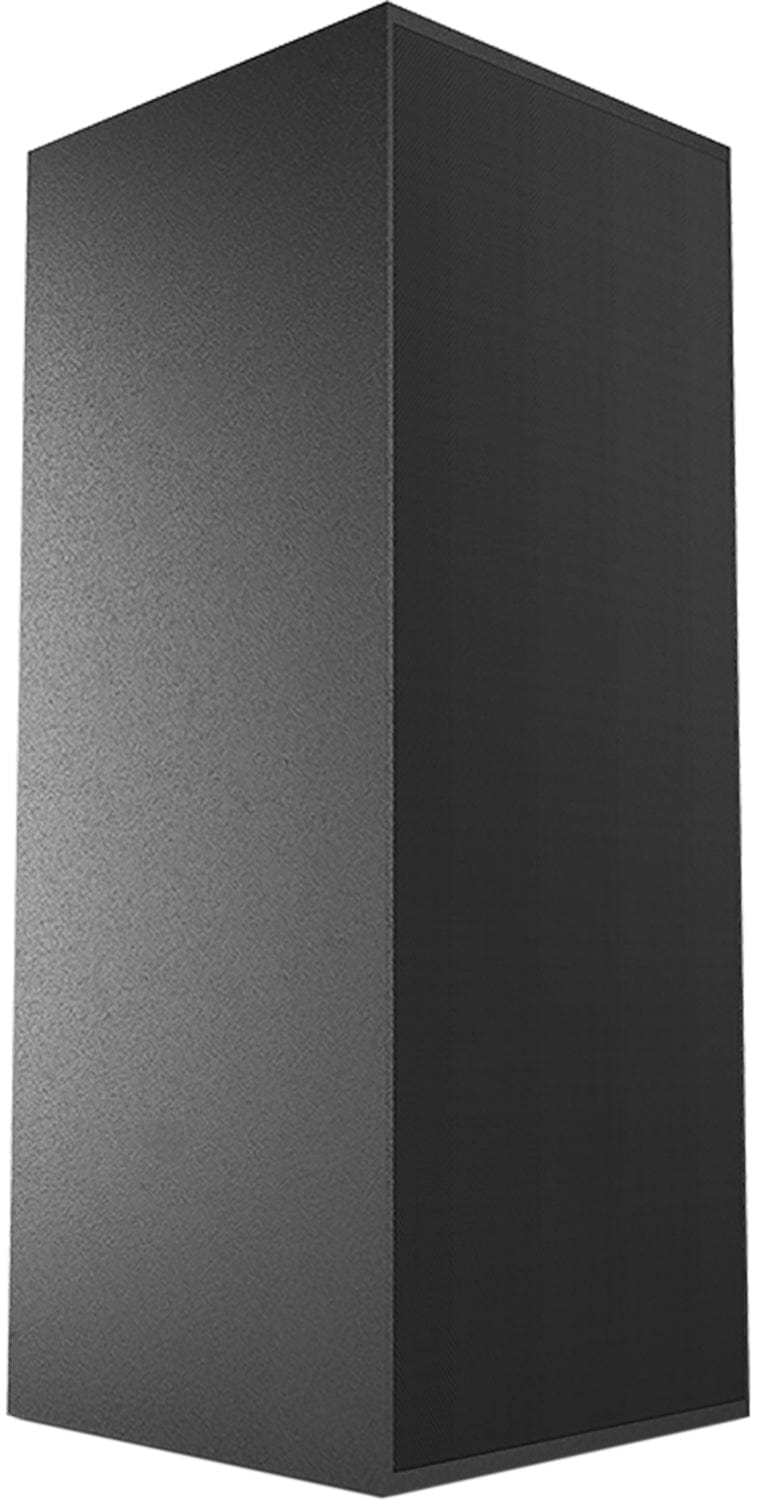

L-Acoustics SYVA LOW RAL High Power Subwoofer - 2x 12-Inch LF - RAL
Passive low-end extension with two high-excursion, direct-radiating 12 in transducers mounted in a bass-reflex tuned enclosure with laminar vents for increased LF efficiency. The enclosure cabinet is constructed of premium grade Baltic beech and birch plywood. The enclosure front is protected by a coated steel grill and an acoustically transparent fabric. The enclosure integrates a signal connector on the top panel to connect to the companion full-range enclosure. Exclusively driven and protected by a proprietary amplified controller through a dedicated preset.
Features:
- High-power handling and high-excursion driver for maximized output and bandwidth
- Beautifully extends a Syva source with AUTOCONNECT™
- Clear low-frequency power with L-VENTS™
- Designed to melt into any venue decor
Specifications:
- Coverage:
- Enclosure directivity: standard
- Transducers:
- LF transducer: 2 ×12" cone drivers
- Acoustics:
- Nominal impedance: 4 Ω
- Usable bandwidth: 40 Hz - 130 Hz (-10 dB), 42 Hz - 110 Hz (-6 dB), 47 Hz - 93 Hz (-3 dB)
- RMS power handling (Calculated using the mean impedance measured on the usable bandwidth): 894 W
- Maximum SPL: 137 dB Peak level at 1 m under half space conditions using pink noise with crest factor 4
- Physical data:
- Acoustical load: bass-reflex
- Cabinet: premium grade Baltic beech and birch plywood
- Dimensions (W, H, D): 849 mm, 334 mm, 350 mm / 33.4 in, 13.1 in, 13.8 in
- Weight (net): 29 kg / 64 lb
- Connectors:
- 1 × 4-point speakON
- 1 x proprietary connector
- IP: IP55
