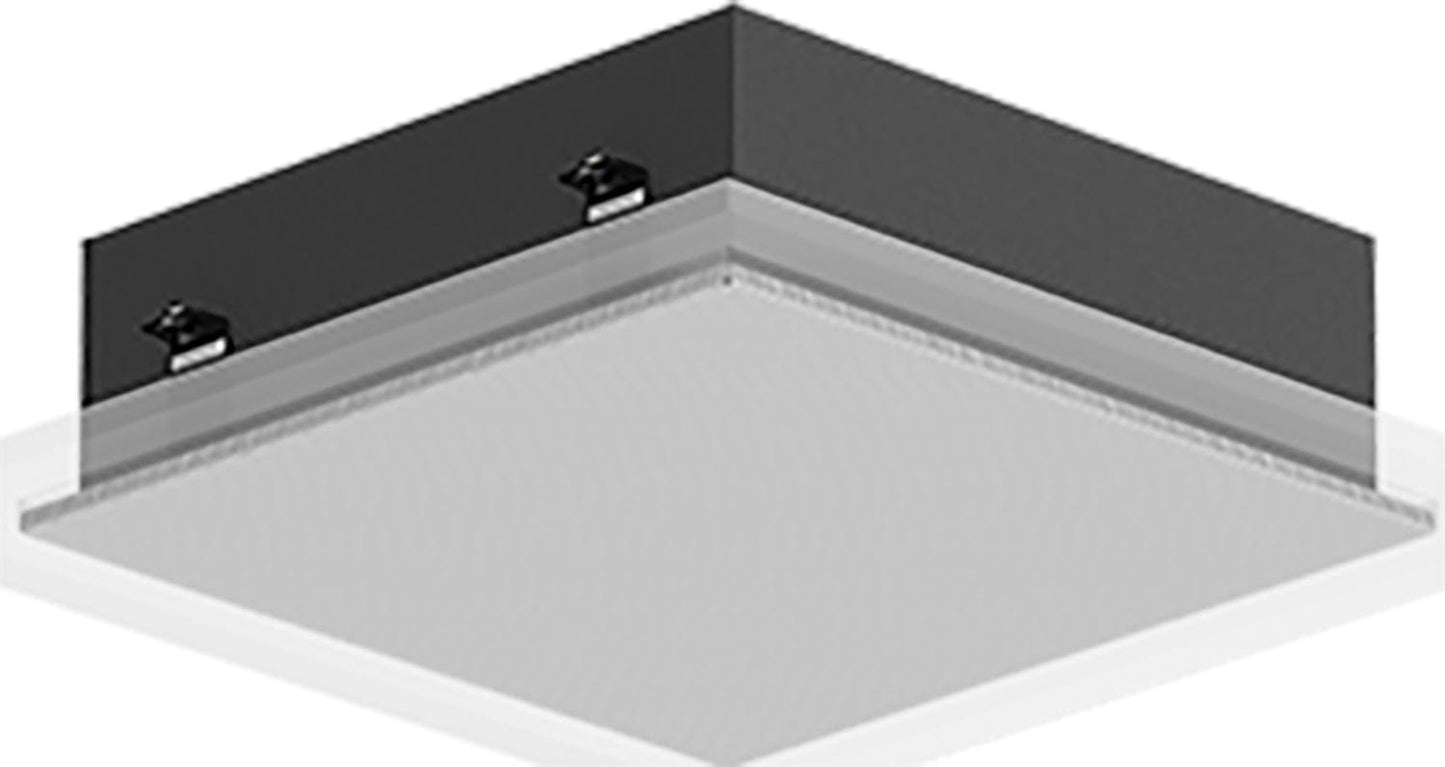

L-Acoustics SB10r-INTILE-RAL 10 Inch Ultra-Compact Subwoofer - RAL Color - Recessed for Tile Ceiling
Install-specific ultra-compact passive subwoofer with a direct radiating 10 in transducer mounted in a bass-reflex tuned enclosure with laminar vents for increased LF efficiency. The enclosure cabinet is constructed of premium grade Baltic beech and birch plywood. The transducer front is protected by a coated steel grill and an acoustically transparent fabric. Dedicated accessories allow for various mounting options: on-wall, on-ceiling, in-wall and in-ceiling. The inserts and the connectors are all gathered on a single enclosure panel. Rubber feet stabilize ground-stacked deployment of one or more elements to prevent movement or cabinet scratching. Exclusively driven and protected by a proprietary amplified controller through a dedicated preset.
Features:
- High-power handling for maximized output and bandwidth for its size
- Fits the most stringent dimension restrictions
- Clear low-frequency power with L-VENTS™
- Designed to melt into any venue decor
Specifications:
- Coverage:
- Enclosure directivity: standard
- Transducers:
- LF transducer: 10" cone driver
- Acoustics:
- Nominal impedance: 8 Ω
- Usable bandwidth:
- Preset 1: 25 – 70 Hz (-10 dB), 27 – 64 Hz (-6 dB), 30 – 55 Hz (-3 dB)
- Preset 2: 27 – 118 Hz (-10 dB), 30 – 96 Hz (-6 dB), 33 – 80 Hz (-3 dB)
- Preset 3: 29 - 180 Hz (-10 dB), 32 - 125 Hz (-6 dB), 35 - 87 Hz (-3 dB)
- RMS power handling (Calculated using the mean impedance measured on the usable bandwidth): 146 W
- Maximum SPL (Peak level at 1 m under half space conditions using pink noise with crest factor 4):
- Preset 1: 119 dB
- Preset 2: 122 dB
- Preset 3: 124 dB
- Physical data:
- Acoustical load: bass-reflex
- Cabinet: premium grade Baltic beech and birch plywood
- Finish: Custom RAL code on special order
- Dimensions (W, H, D): 540 mm, 540 mm, 170 mm / 21.3 in, 21.3 in, 16.6 in
- Weight (net): 14 kg / 31 lb
- Connectors: 1 × 4-point terminal block with push-in connection
- IP: IP55
