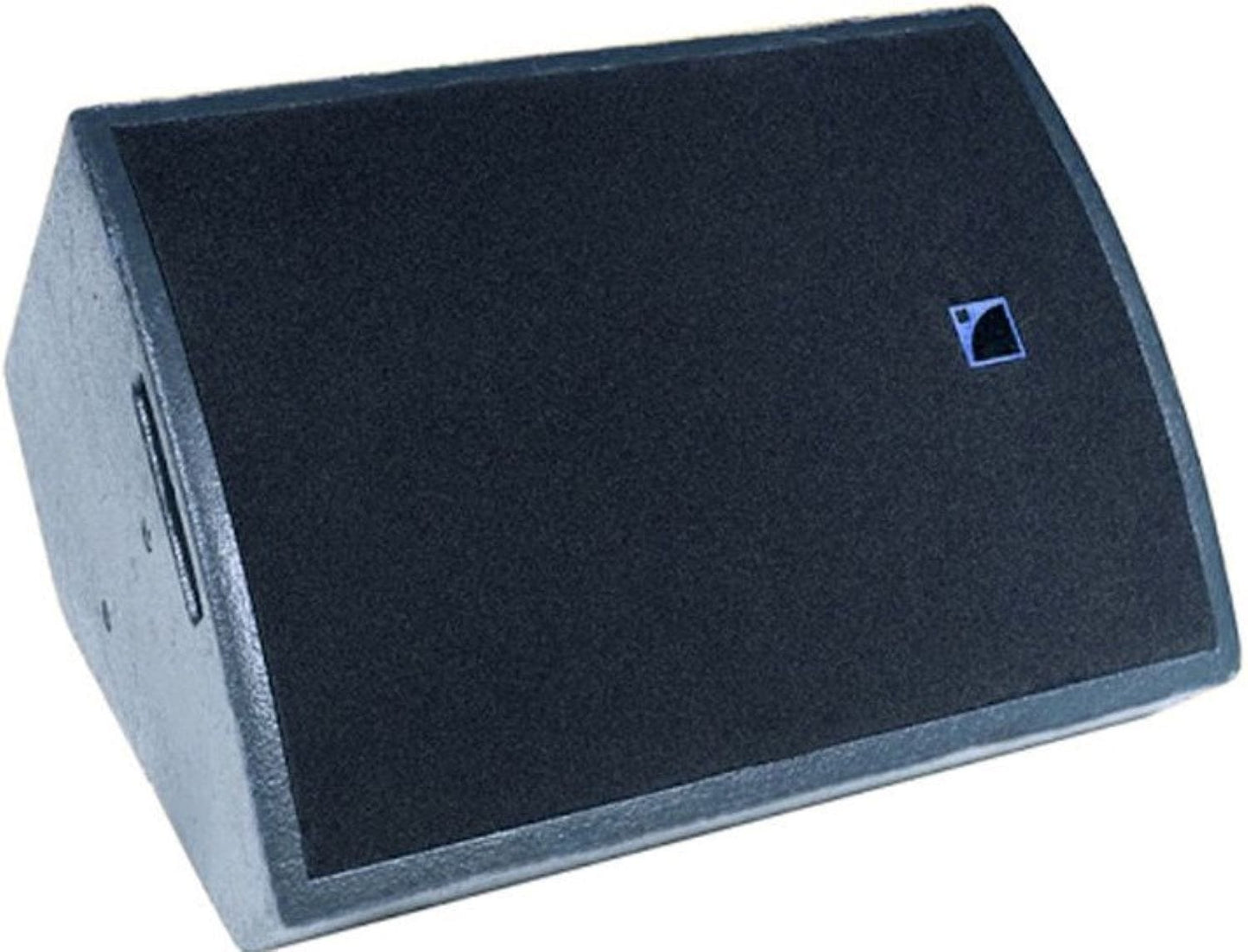

L-Acoustics MTD115 Stage Monitor Loudspeaker
PA Floor/Stage Monitor from L-Acoustics belonging to the MTD series.
Features:
- Switchable active/passive two-way enclosure (15" LF, 1.4" HF)
- High-power coaxial driver assembly
- Point source radiation (85° conical directivity)
- Flexible format for distributed sound reinforcement
- Wedge-shaped for floor monitor use
- Suitable for medium power FOH applications
- Designed for fixed installation and touring
- Compact, rugged construction, flexible rigging
- Analog processor control with sense return protection
Specifications:
- Frequency Response:
- Frequency response: 65 - 14k Hz (±3dB) (LLC FRONT position)
- Usable bandwidth: 50 - 16k Hz (-10dB)
- Sensitivity:
- Passive: (2.83 Vrms @ 1m) 98.5 dB SPL 65 - 14k Hz
- Active:
- LF (2.83 Vrms @ 1m) 96 dB SPL 65 - 1.2k Hz
- HF (2.83 Vrms @ 1m) 106 dB SPL 1.2 - 14 kHz
- Enclosure:
- Height: 580 mm 22.8 in
- Front: Width 440 mm 17.3 in
- Rear: Width 167 mm 6.6 in
- Depth: 474 mm 18.7 in
- Trap Angle: 41 degrees with respect to vertical
- Net Weight: 31.5 kg 69.3 lbs
- Shipping Weight: 34.5 kg 75.9 lbs
- Shipping Dims: 655 x 500 x 570 mm (25.8 x 19.7 x 22.4 in)
- Connectors: 2x 4-pin Neutrik speakon
- Material: 18 mm, 30 mm Baltic birch plywood
- Finish: Maroon-gray™
- Grill: Black epoxy perforated steel with acoustically transparent foam
- Rigging: Integrated flying hardware, handles and pole mount socket, Omnimount-ready
