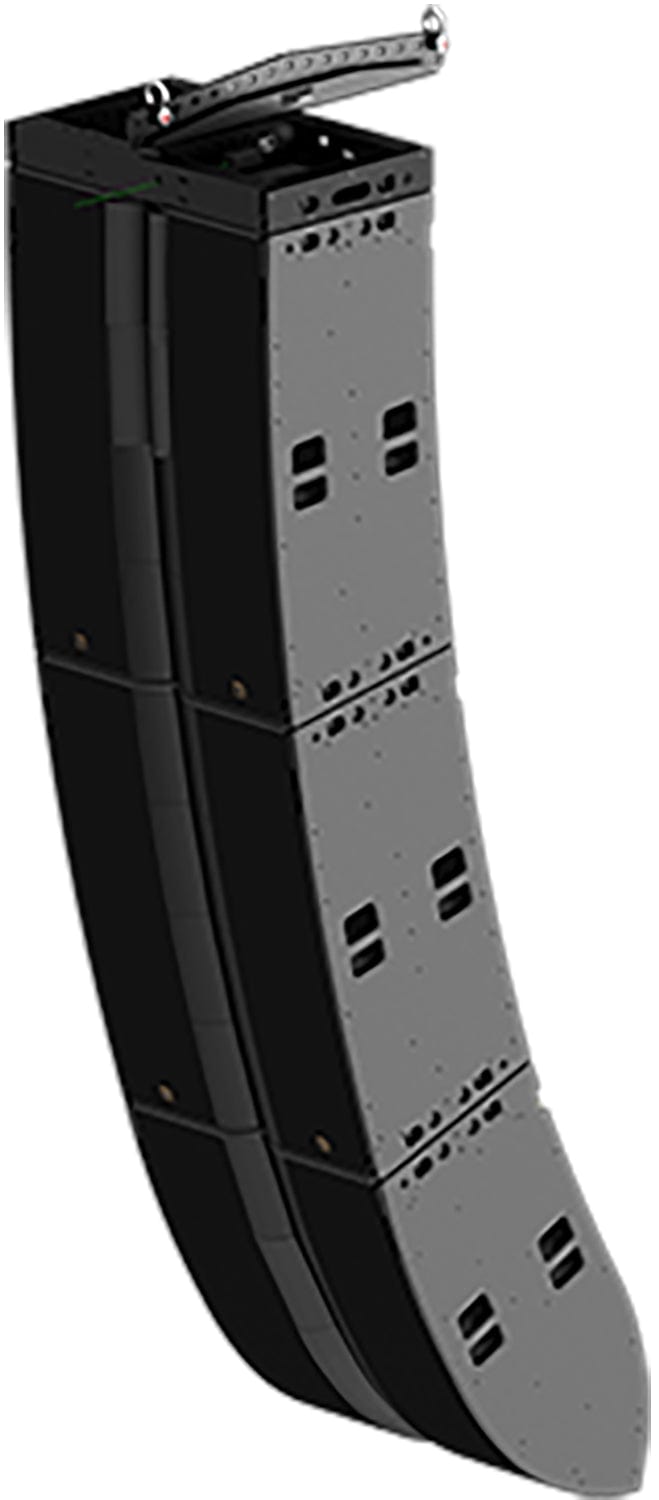

L-Acoustics L2RAL 16 Channel PULS Active Speaker - Progressive Curvature - 10 Degree Enclosure - RAL
The L-Acoustics L2RAL is a 16-channel PULS active speaker featuring a progressive curvature design and a 10-degree enclosure, ensuring precise sound coverage and exceptional audio quality. Perfect for versatile installations, this speaker offers powerful performance with advanced acoustic technology in a sleek RAL finish.
Features:
- Line source technology perfected with PULS
- Best in class SPL/m, SPL/kg, SPL/m2
- Clean stage and neighboring area with INTEGRATED CARDIOID
- Fast and errorless deployment
Specifications:
- Usable bandwidth (-10 dB): 45 Hz – 20 kHz (L2 70)
- Maximum SPL1:
- Full element: 155 dB (L2 70)
- First module: 147 dB (L2 70)
- Nominal directivity (-6 dB):
- Vertical: 10° progressive directivity
- Horizontal:
- Four modules: Panflex 70° / 90° / 110°
- Integrated cardioid
- Transducers:
- LC: 4 × 12’’ neodymium cone drivers
- LF: 8 × 10’’ neodymium cone drivers
- HF: 8 × 3’’ neodymium compression drivers
- Acoustical load:
- LC/LF: Bass-reflex, L-Vents
- HF: DOSC waveguide, Panflex
- Nominal impedance:
- LC : 8 Ω
- LF : 8 Ω
- HF : 8 Ω
-
- Connectors: 1 x 37-point male connector (32 points used)
- Rigging and handling: Flush-fitting 4-point captive rigging system compatible with L2D
- Weight (net): 158 kg / 348 lb
- Cabinet: Premium grade Baltic birch plywood
- Front:
- Coated steel grill
- acoustically neutral 3D fabric
- Rigging components: High grade steel with anti-corrosion coating
- IP: IP55
