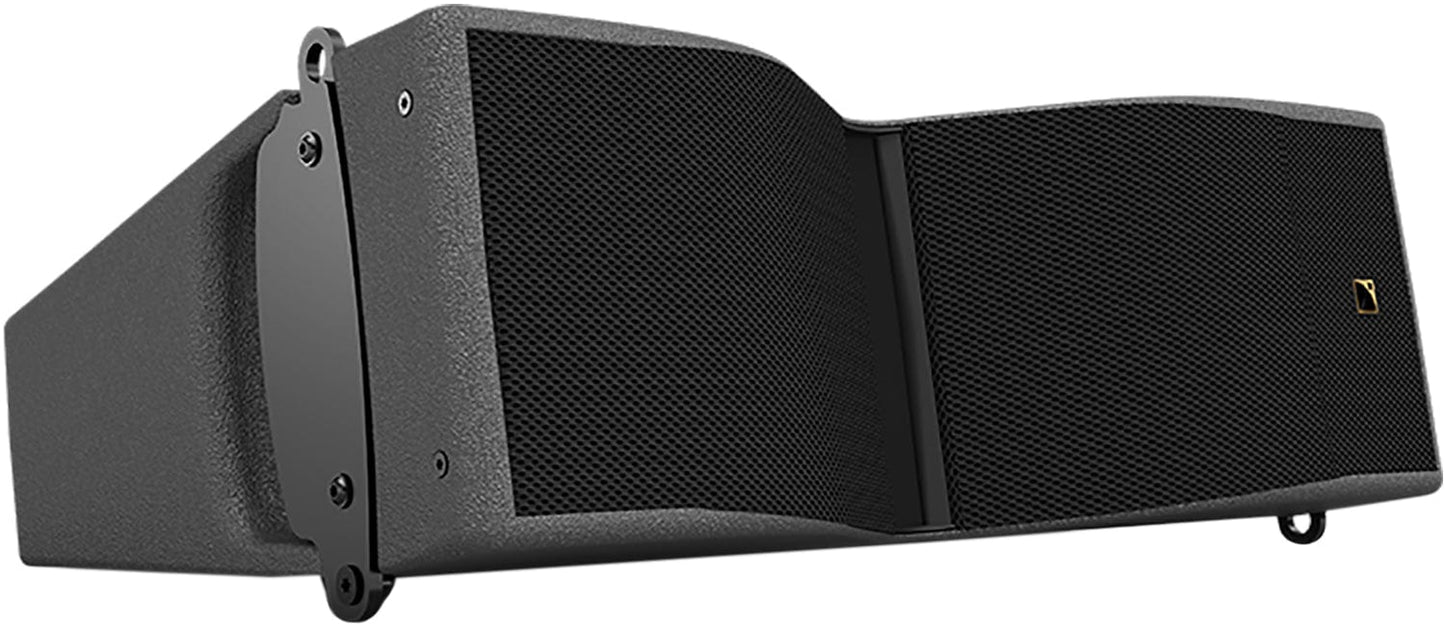

L-Acoustics KIVA-II-WR 6.5 Inch 2-Way Passive Speaker - 1.75 Inch HF Diaphragm - Weather Resistant
2-way passive enclosure with two weather-resistant premium 6.5 in transducers and high output 1.75 in diaphragm compression driver coupled to a cylindrical waveguide with 110 degrees of horizontal coverage and 15° of vertical coverage. The enclosure cabinet is constructed of moisture-resistant composite material. The enclosure front is protected by a composite grill and an acoustically transparent fabric. The enclosure integrates two handles. A three-point captive hardware allows for rigging and combining with other loudspeakers of the same family to achieve a coherent wavefront line source. The line source directivity depends upon the number of elements and inter-element angles and can be matched to the audience geometry. Exclusively driven and protected by a proprietary amplified controller through a dedicated preset.
Features:
- Flown even under the most stringent rigging conditions
- Minimalist dimensions for easy integration
- Clear vocals and smooth horizontal polar pattern with L-FINS
- 16 ohms for maximized enclosure density per amplified controller
Specifications:
- Coverage (-6 dB):
- Enclosure directivity: 15° (single), depending on the number of elements and array curvature
- Waveguide directivity: 100° symmetrical
- Transducers:
- LF transducer: 6.5" cone driver
- HF transducer: 1.75" diaphragm compression driver
- Acoustics:
- Nominal impedance: 16 Ω
- Usable bandwidth: 70 Hz - 20 kHz (-10 dB), 75 Hz - 20 kHz (-6 dB), 84 Hz - 20 kHz (-3 dB)
- RMS power handling (Calculated using the mean impedance measured on the usable bandwidth): 186 W
- Maximum SPL: 138 dB (Peak level measured at 1 m under free field conditions using pink noise with crest factor 4)
- Physical data:
- Acoustical load: bass-reflex
- Cabinet: composite sandwich structure
- Finish: Dark grey brown Pantone 426 C
- Dimensions (W, H, D): 525 mm, 202 mm, 357 mm / 20.7 in, 8 in, 14 in
- Weight (net): 14 kg / 31 lb
- Connectors: 2 × 4-point speakON
- IP: IP55
