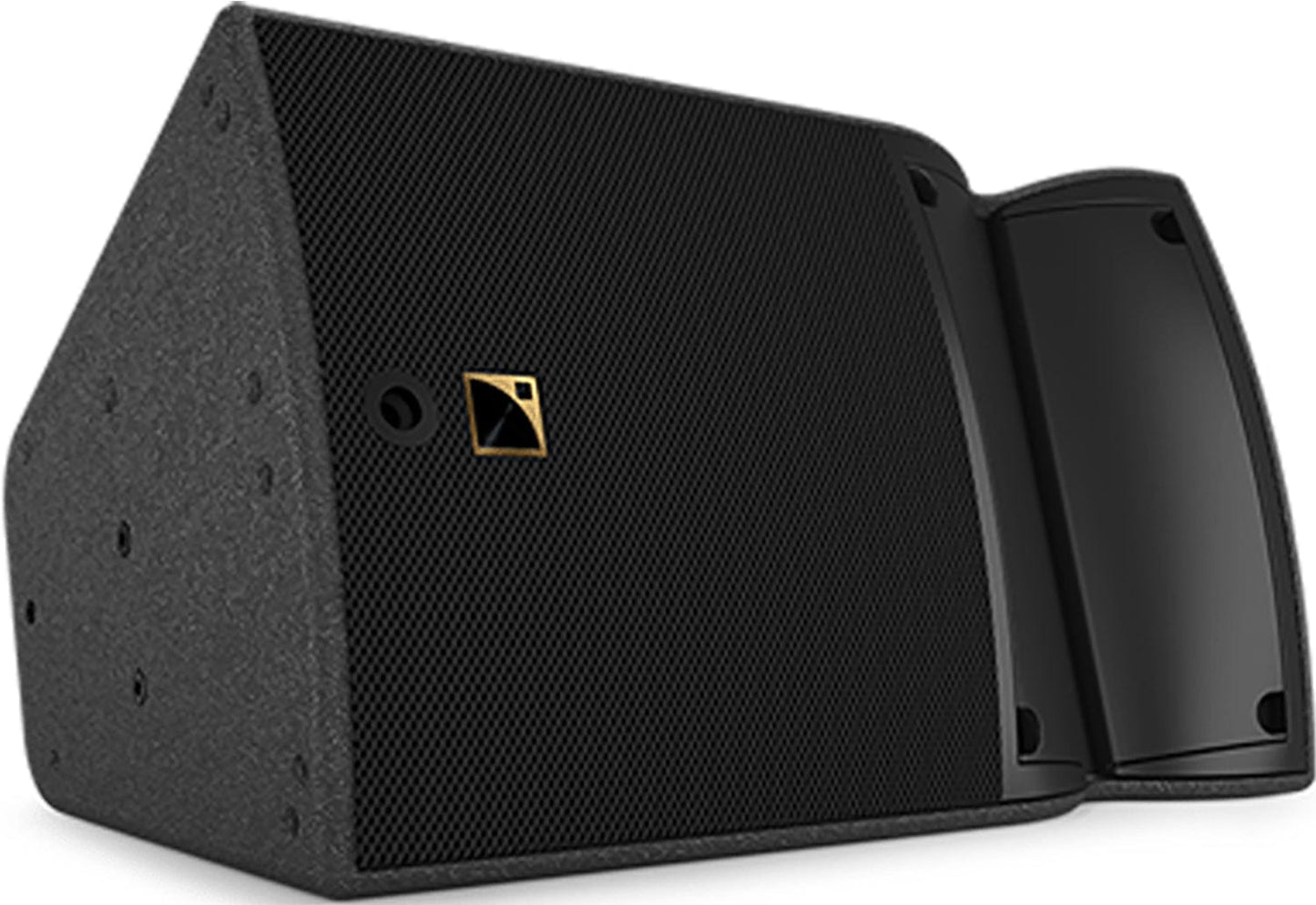

L-Acoustics A10i-WIDERAL 10 Inch 2-Way Passive Speaker - 2.5 Inch Diaphragm - RAL - Install Version
Install-specific 2-way passive enclosure with a weather resistant premium 10 in transducer and high output 2.5 in diaphragm compression driver coupled to a cylindrical waveguide with user-adjustable directivity. The enclosure cabinet is constructed of premium grade Baltic beech and birch plywood. The enclosure front is protected by a coated steel grill and an acoustically transparent fabric. The enclosure integrates inserts for flush-fitting connecting plates and an optional acoustically transparent front screen. The four-point hardware allows for rigging and combining with other loudspeakers of the same family to achieve a coherent wavefront horizontal or vertical line source. The line source directivity is equal to N x 30 degree (where N is the number of enclosures in the array). Exclusively driven and protected by a proprietary amplified controller through a dedicated preset.
Features:
- Flown even under the most stringent rigging conditions
- 4 horizontal directivities with PANFLEX™
- Clear low-frequency power with L-VENTS™
- Designed to melt into any venue decor
Specifications:
- Coverage (-6 dB):
- Enclosure directivity: 30°
- Waveguide directivity: 70° / 110° symmetric or 90° asymmetric
- Transducers:
- LF transducer: 10" cone driver
- HF transducer: 2.5" diaphragm compression driver
- Acoustics:
- Nominal impedance: 8 Ω
- Usable bandwidth: 67 Hz - 20 kHz (-10 dB), 72 Hz - 20 kHz (-6 dB), 78 Hz - 20 kHz (-3 dB)
- RMS power handling (Calculated using the mean impedance measured on the usable bandwidth): 296 W
- Maximum SPL: 137 dB (Peak level measured at 1 m under free field conditions using pink noise with crest factor 4)
- Physical data:
- Acoustical load: bass-reflex
- Cabinet: premium grade Baltic beech and birch plywood
- Finish: custom RAL code on special order
- Dimensions (W, H, D): 569 mm, 347 mm, 345 mm / 22.4 in, 13.7 in, 13.6 in
- Weight (net): 18 kg / 40 lb
- Connectors: 1 × 4-point terminal block with push-in connection
- IP: IP55
