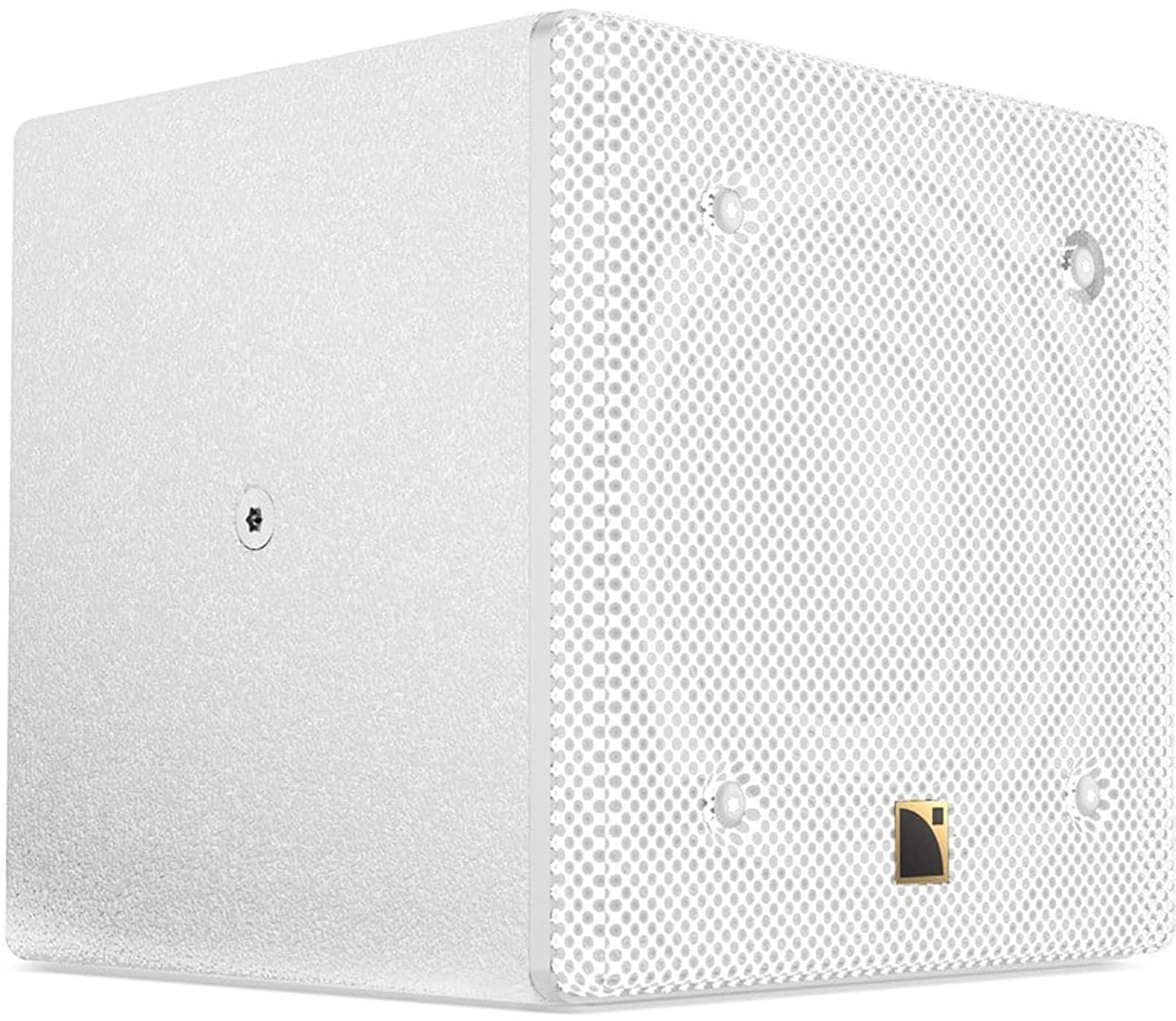

L-Acoustics 5XTW 5 Inch Passive 2-Way Coaxial Speaker - White

2-way passive enclosure with a premium 1 in diaphragm compression driver coaxially loaded by a 5 in low-mid frequency transducer mounted in a bass-reflex cabinet. The enclosure cabinet is constructed of premium grade Baltic birch plywood and can be custom colored based on the RAL color program. The enclosure front is protected by a coated steel grill. The compact enclosure has been designed to integrate in any situation. The dedicated bracket ensures wall-mount and ceiling-mount configurations. A 3/8 in insert allows for pole-mount configurations. Exclusively driven and protected by a proprietary amplified controller through a dedicated preset.

Features:

• POWERFUL - Exceptional output-to-size ratio
• CONSISTENT - Smooth off-axis response with COAXIAL technology
• ECONOMIC - High enclosure density per amplified controller

Specifications:

• Coverage (-6 dB):
  • Nominal directivity: 110° axisymmetric
• Transducers:
  • LF transducer: 5" cone driver
  • HF transducer: 1" diaphragm compression driver
• Acoustics:
  • Nominal impedance: 16 Ω
  • Usable bandwidth: 95 Hz - 20 kHz (-10 dB), 105 Hz - 20 kHz (-6 dB), 115 Hz - 20 kHz (-3 dB)
  • RMS power handling (Calculated using the mean impedance measured on the usable bandwidth): 66 W
  • Maximum SPL: 121 dB (Peak level measured at 1 m under free field conditions using pink noise with crest factor 4)
• Physical data:
  • Acoustical load: bass-reflex
  • Cabinet: premium grade Baltic birch plywood
  • Dimensions (W, H, D): 165 mm, 165 mm, 165 mm / 6.5 in, 6.5 in, 6.5 in
  • Weight (net): 3.5 kg / 7.7 lb
  • Connectors: 2 × 4-point speakON
  • IP: IP30 / IP54 with optional connector sealing plate and a down-tilt angle of 20° and more
  • Finish: pure white RAL 9010
