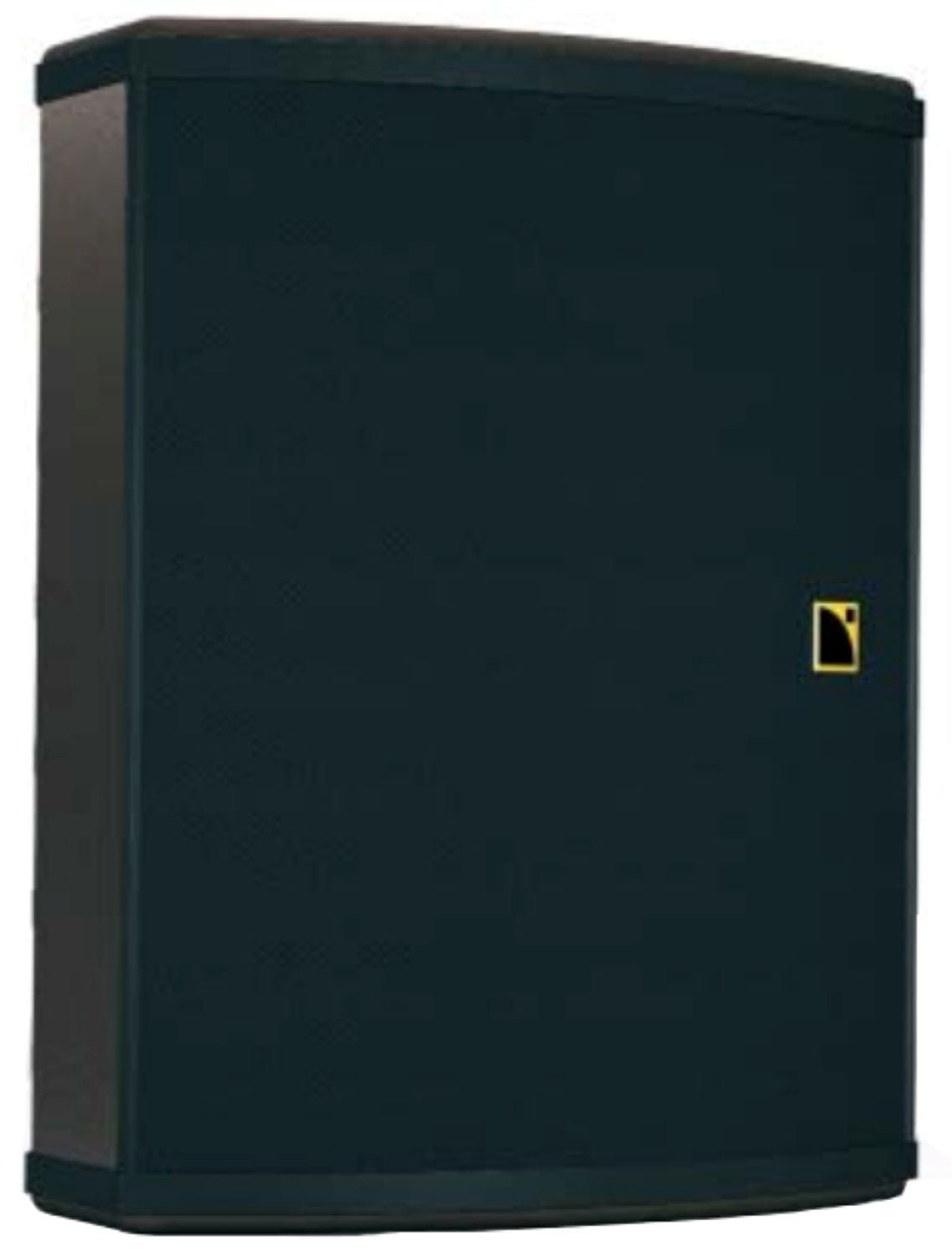

L-Acoustics 115XT HiQ Stage Monitor Loudspeaker
The 115XT HiQ is the high end stage monitor within the L-ACOUSTICS® XT coaxial range. It operates as an active 2-way enclosure, over a frequency bandwidth from 50 Hz to 20 kHz which can be lowered to 32 Hz with the addition of the SB18 subwoofer.
Specifications:
- Usable bandwidth (-10dB): 50 Hz - 20 kHz
- Nominal directivity (-6dB): 50° Axi-symmetric
- Maximum SPL:
- 139.5 dB (HiQ_MO preset)
- 136.5 dB (HiQ_FI preset)
- RMS handling capacity:
- LF : 450 W (HiQ_FI preset)
- HF : 125 W (HiQ_FI preset)
- Components:
- LF: 1 x 15" weather-resistant transducer
- HF: 1 x 3" diaphragm compression driver
- Nominal impedance: 2 x 8 ohms
- Physical data:
- H x W x D: 365 x 580 x 440 mm - 14.4 x 22.8 x 17.3 in
- Wedge angle: 30° or 60° with regard to vertical
- Weight (net): 28.5 kg - 62.8 lbs.
- Connectors: 2 x 4-point Speakon®
- Material: 18, 24 and 30 mm Baltic birch plywood
- Finish: Grey-brown RAL 8019®
- Front: polyester-powder coated steel grill, acoustically transparent Airnet® cloth
- Rigging: integrated handles and pole mount socket, optional ETR15 bracket and XTLIFTBAR accessory
