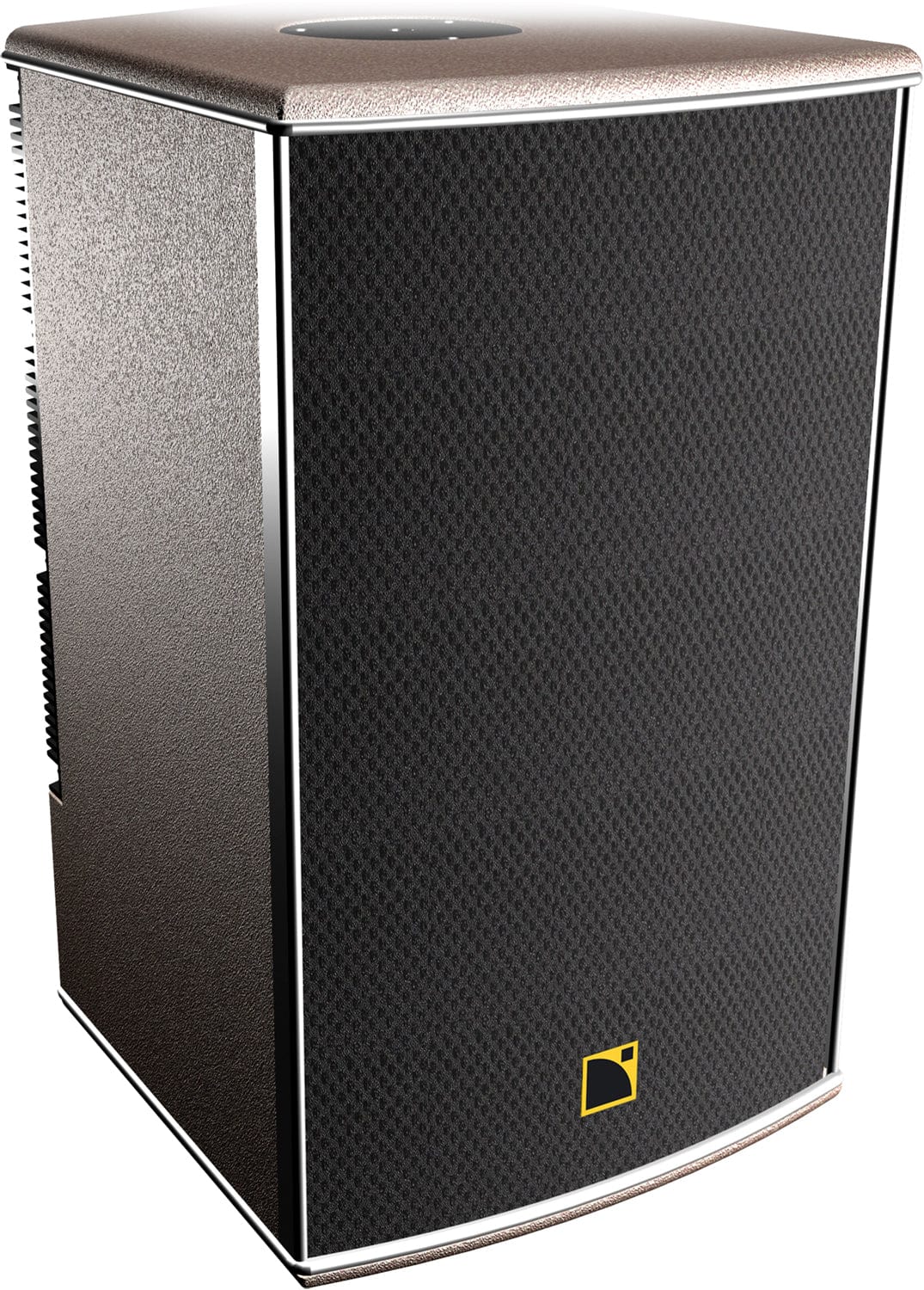

L-Acoustics 108P 8-Inch Self-Powered Coaxial Loudspeaker

L-Acoustics 108P 8-Inch Self-Powered Coaxial Loudspeaker

The 108P is the reference live monitor within the L-ACOUSTICS® self powered coaxial P series. The enclosure operates over a frequency bandwidth from 55 Hz to 22 kHz which can be lowered to 40 Hz with the addition of the recommended SB15P self-powered subwoofer. The 108P enclosure contains a bi-amplified coaxial configuration consisting of a 1.5’’ diaphragm compression driver loaded onto an 8’’ low frequency transducer integrated into a compact low profile bass-reflex tuned enclosure. This coaxial transducer arrangement produces a 100° axi-symmetric directivity output along with a smooth tonal response free of secondary lobes over the entire frequency range, resulting in exceptional immunity to feedback, especially in monitoring situations. The system contains a speaker management DSP and a 2-channel power amplification module. The DSP manages the system crossover network, driver time alignment, and dual protection of the loudspeaker components. The unique linearization drive characteristic of the transducers is a result of comprehensive parameter management functions by the DSP. Made of high-grade Baltic birch plywood, the cabinet design makes the 108P perfectly suited to all multi-purpose sound reinforcement applications. Its wedge-shape allows monitoring use with a fixed angle setting of 30˚ from vertical. The 108P can also be pole-mounted using the integrated socket or flown using the complementary ETR8-2 bracket.

Specifications:

• Usable bandwidth (-10dB): 55 Hz – 20 kHz (108P_FR)
• Nominal directivity (-6dB): 100° Axi-symmetric
• Maximum SPL: 127 dB (108P_FI)
• Components:
  • LF: 1 x 8’’ transducer mounted in a bass-reflex enclosure
  • HF: 1 x 1.5’’ diaphragm compression driver
• Electrical specifications:
  • Input stage: balanced, max level of +12 dBu (at 0 dB setting)
  • DSP: 24 bit/48 kHz
  • Amplifier power rating:
    • LF: 1 x 500 W, 4 ohms
    • HF: 1 x 260 W, 8 ohms
• Physical data:
  • H x W x D: 421 x 250 x 299 mm - 16.6 x 9.8 x 11.8 in
  • Wedge angle: 30° from vertical
  • Weight (net): 13 kg - 28.6 lb.
  • Connectors: 2 x XLR in parallel, 2 x Powercon® 120 or 230 V selectable by switch
  • Material: 15 and 18 mm Baltic birch plywood
  • Finish: dark grey brown Pantone® 426C
  • Front: polyester powder-coated steel grill, acoustically transparent Airnet® cloth
  • Rigging: integrated pole mount socket, optional ETR8-2 bracket
