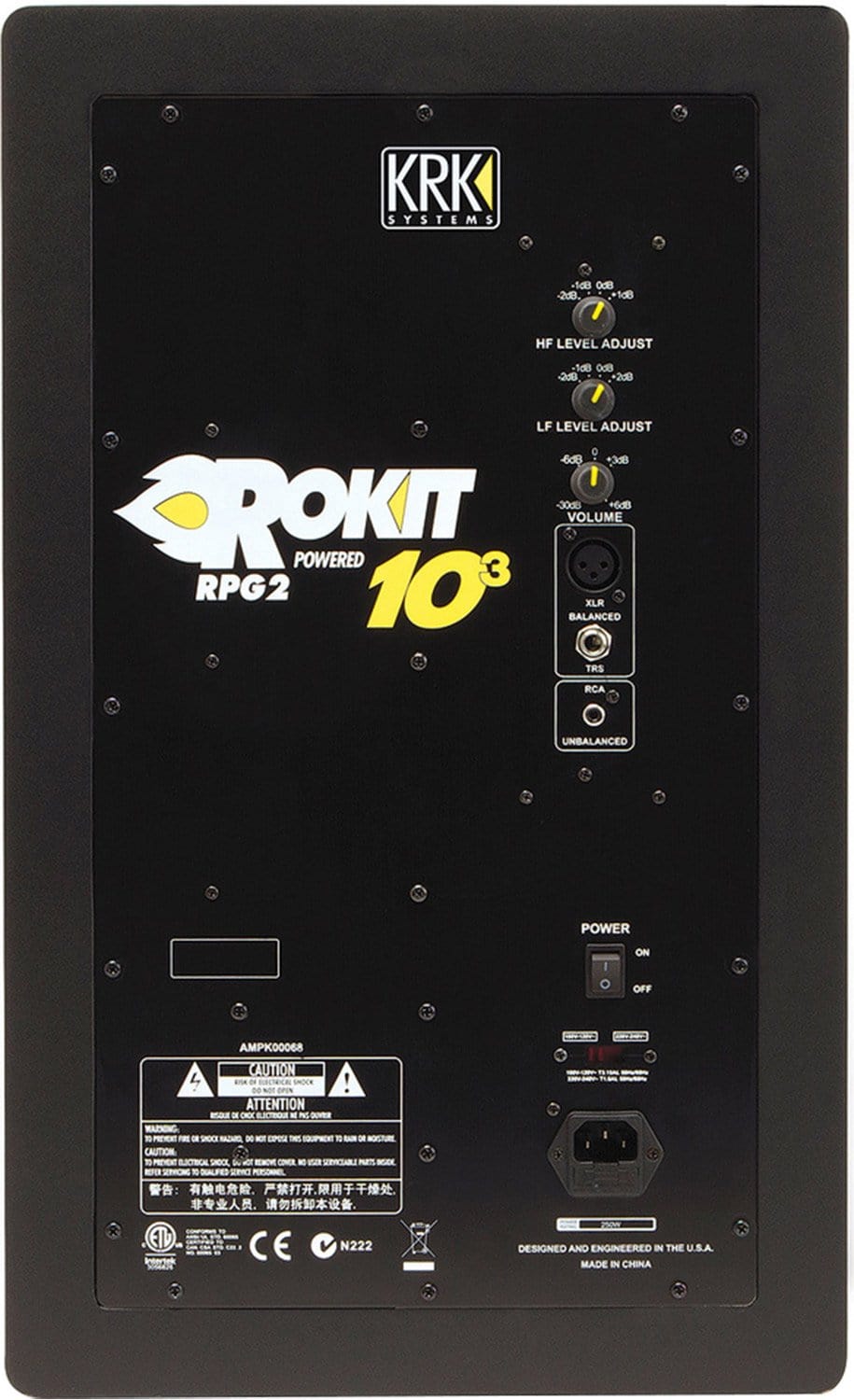

KRK RP103 10-Inch 3-Way Active Studio Monitor
A full Range Active Studio Monitor consists of a 1" soft dome tweeter, 4" midrange driver and 10" glass-Aramid composite woofer. This powered studio monitor offers professional performance and accuracy for a variety of applications, and delivers high frequencies up to 30kHz, vocal clarity, and extended bass response. The front-firing bass port reduces boundary coupling, the rotatable midrange module allows flexible positioning in the room, and the engineered surface reduces diffraction distortion, while the ROKIT waveguide is designed to ensure detailed imaging in the listening position. The proprietary tri-amped, class A/B amplifier grants SPL up to 113dB, and multiple input connections ensure, the ROKIT 10-3 G3 will easily integrate in any system configuration.
Features:
- Soft-dome tweeter provides clarity and extended response up to 35kHz
- Proprietary waveguide technology optimized for superior stereo imaging
- Lightweight, glass-aramid composite woofer delivers clear midrange and tight bass
- Bi-amped, class A/B amplifier offering maximum headroom with minimal distortion
- Low and high frequency adjustment gives you unprecedented voicing control for optimal room acoustics and mix translation
Specifications:
- Configuration: 3-Way
- System Type: Active Studio Monitor
- HF Transducer: 1" Soft-Dome Tweeter
- MF/HF Cone Material: Aramid Glass Composite Woofer
- LF Transducer: 10" Aramid Glass Composite Woofer
- Frequency Range (-10dB): 25Hz-30kHz
- Crossover Frequency: 378Hz / 3.3kHz
- Total Power: 148 Watts
- HF Power: 30 Watts
- MF Power: 32 Watts
- LF Power: 86 Watts
- Peak SPL: 113 dB
- Auto-Standby: 30 Minutes
- Cabinet Material: MDF
- Connectors:
- Unbalanced 7kO RCA
- Balanced 10kO ¼" TRS and XLR. Pin 2 & Tip = Hot\Positive
- Pin 3 & Ring = Cold\Negative
- Pin 1 & Sleeve = Ground
- Controls:
- HF Level Adjust (-2dB, -1dB, 0, +1dB)
- LF Level Adjust (-2dB, -1dB, 0, +2dB)
- System Volume (-30dB to +6dB)
- Magnetic Shielding: Yes
- Product Dimensions (D x W x H): 14.4" x 12.8" x 21.5" (365mm x 325mm x 545mm)
- Product Net Weight: 43.95 lbs (19.9kg)
- Fuse Rating: Slow Blow Type, 5mm x 20mm
- 100V , 110-120V : T3.15AL
- 220-240V : T1.6AL
- Diameter Woofer: 10 inch
- Max. Sound pressure: 110 - 114 db
- Power RMS: 100 - 150 W
