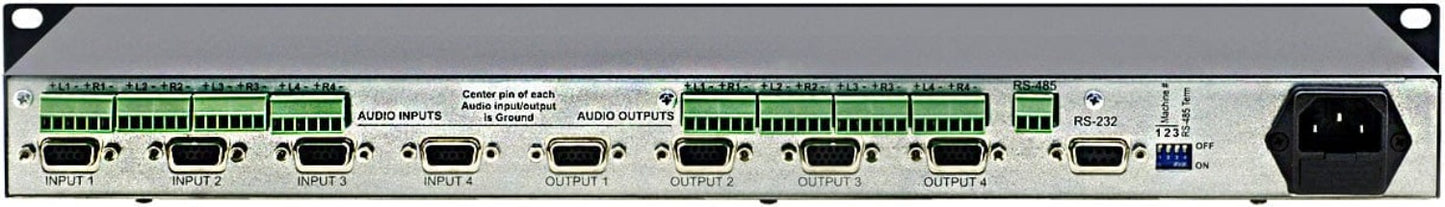

Kramer VP4X4 VGA Matrix Switcher 4:4

Kramer VP4X4 VGA Matrix Switcher 4:4

The Comprehensive/Kramer VP-4x4 is a 4-input, 4-output matrix switcher that accepts computer-generated video signals and balanced stereo audio. The unit accepts signals with resolutions up to UXGA and features professional functionality.

Features:

• VGA to UXGA Video (HD-15)
• Balanced Stereo Audio (Phoenix)
• RS-232
• Rackmountable

Specifications:

• Input:
  • Computer Generated Video x4, VGA to UXGA, RGBHV, on HD-15 connectors
  • Balanced Stereo Audio x4, on detachable terminal connectors
  • RS-232, on a multipin connector
• Output:
  • Computer Generated Video x4, VGA to UXGA, RGBHV, on HD-15 connectors
  • Balanced Stereo Audio x4, on detachable terminal connectors
• Switch Type:
  • Front Panel Touch Switches
  • Via RS-232 from PC
  • Matrix
• Video Bandwidth: 440 MHz
• Differential Gain: 0.05%
• Differential Phase: 0.013°
• Video Signal-to-Noise Ratio: 78 dB
• Audio Bandwidth: 100 kHz
• Signal to Noise Ratio: 77 dB
• Audio THD: 0.031%
• Control:
  • Front Panel Touch Switches
  • Remote PC via RS-232
• Power Source: 12 VDC on a AC Power Adapter
• Dimensions:
  • 19 x 7 x 1.75"
  • 48.26 x 17.78 x 4.45cm
• Weight:
  • 6 lbs
  • 2.7 kg
