Kramer VM80V Composite Video 1:8 SD-SDI Distribution Amplifier
The VM−80V is a high−performance distribution amplifier for composite or SDI signals. It can also be configured as a 1:4 DA for s−Video (Y/C) signals and has controls to compensate for signal losses inherent in long cable runs.
Features:
- High Bandwidth - 330MHz (−3dB).
- Level (Gain) and EQ (Peaking) Controls.
- Dual-Mode - Configure as either a 1:8 (composite) or 1:4 (s−Video) DA.
- Video AC/DC Coupling - Internally selectable.
- Companion Unit to the VM-80A Audio DA.
- Desktop Size - Compact size. 2 units can be rack mounted side−by−side in a 1U rack space with the recommended rack adapter.
Specifications:

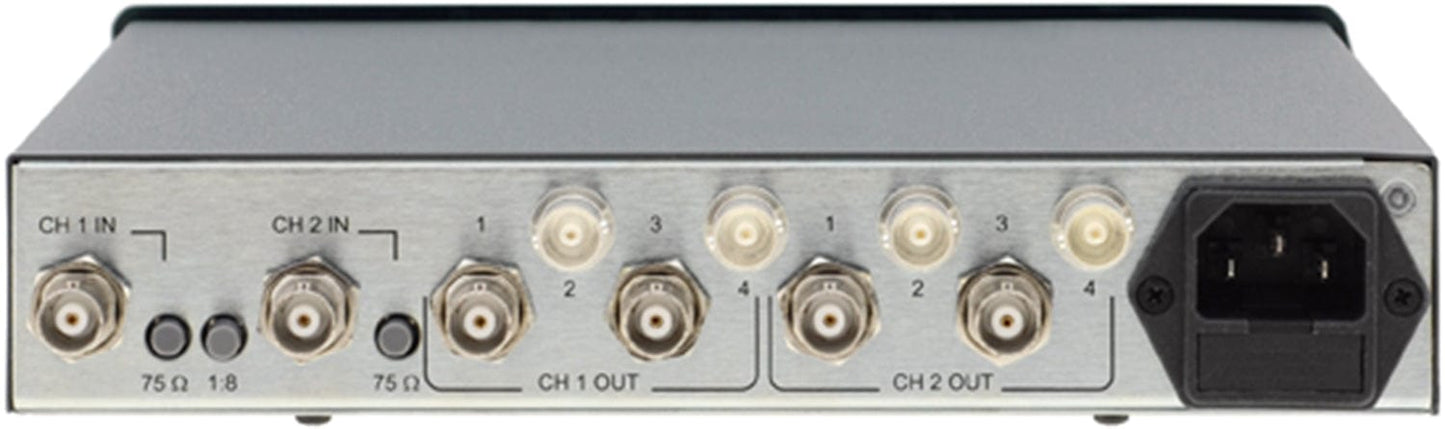

- Inputs: 2 composite/SDI video, 1Vpp/75Ω on BNC connectors with termination switches.
- Outputs: 2x4 composite/SDI video, 1Vpp/75Ω on BNC connectors.
- MAX. Video Output: 2Vpp.
- Video Bandwidth (-3DB): 300MHz.
- Diff. Gain: 0.12%.
- Diff. Phase: 0.5Deg.
- K-Factor: <0.05%.
- S/N Ratio: 74dB.
- Control: 75Ω termination switch, 1:8 or 2x1:4 selector switch.
- Non-Linearity: 0.1%.
- Coupling: DC or AC (internal selection).
- Power Consumption: 100−240V AC, 50/60Hz, 10VA.
- Included Accessories: Power cord.
- Inputs: 2 composite/SDI video, 1Vpp/75Ω on BNC connectors with termination switches.
- Outputs: 2x4 composite/SDI video, 1Vpp/75Ω on BNC connectors.
- MAX. Video Output: 2Vpp.
- Video Bandwidth (-3DB): 300MHz.
- Diff. Gain: 0.12%.
- Diff. Phase: 0.5Deg.
- K-Factor: <0.05%.
- S/N Ratio: 74dB.
- Control: 75Ω termination switch, 1:8 or 2x1:4 selector switch.
- Non-Linearity: 0.1%.
- Coupling: DC or AC (internal selection).
- Power Consumption: 100−240V AC, 50/60Hz, 10VA.
- Included Accessories: Power cord.
