Kramer SG6005XL Multi−Standard Composite Video Black Burst, Color Bar & Audio Tone Generator

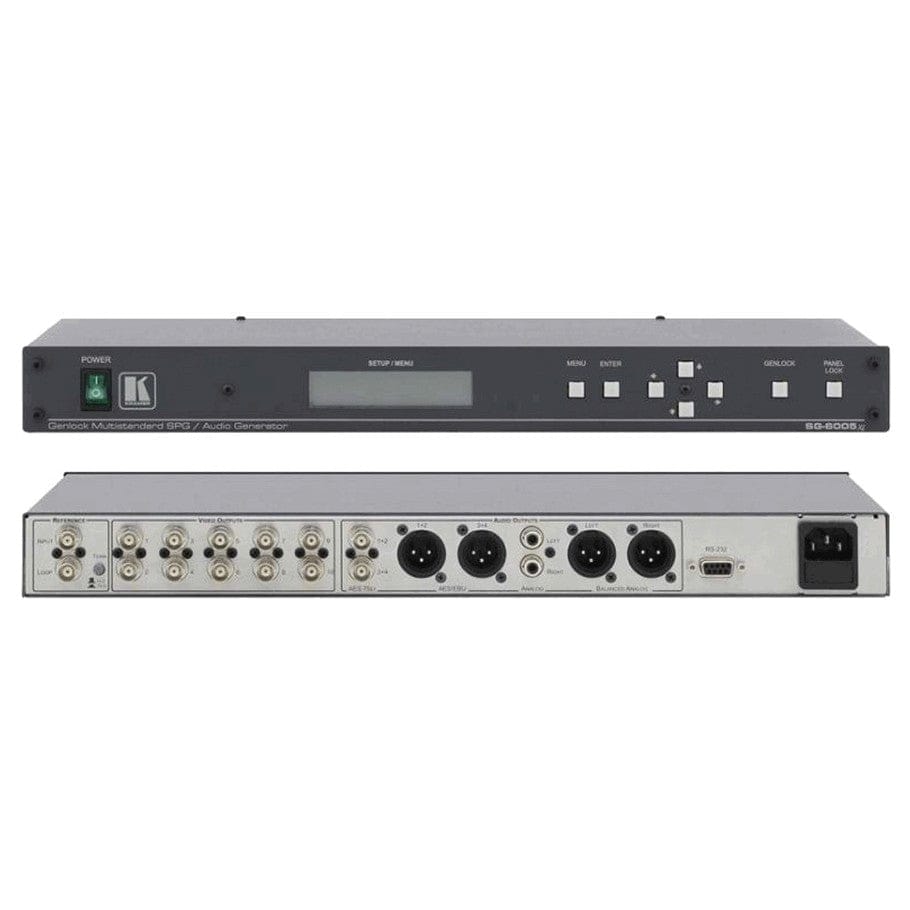

The SG6005xl is a broadcast quality black burst, color bar, sync, and audio tone generator for composite video and audio applications. The SG 6005xl outputs ten composite video and two AES-3id audio signals on BNC connectors, two balanced stereo and two AES/EBU audio signals on XLR connectors and an unbalanced stereo audio signal on two RCA connectors. The unit can be genlocked to an external video source.
10 Composite Video Outputs.
8 Color Bar Patterns.
Ultra Stable - 1ppm frequency tolerance.
Color Bar or Black Burst (Output Selectable).
SCH/Phase Adjust.
Looping Analog Genlock Input - For sync and color locking.
Selectable Sync Input Signal Termination.
Audio Outputs - Balanced (2 XLR), unbalanced (2 RCA), AES−3id (2 BNC) & AES/EBU (2 XLR).
Frequency & Amplitude Adjustable.
Control - Front panel & RS−232
Worldwide Power Supply - 100−240V AC.
TECHNICAL SPECIFICATIONS
INPUTS: 1 genlock with loop, 1Vpp/75Ω on BNC connectors with a termination switch.
OUTPUTS: 10 composite video on BNC connectors, globally configurable black burst, 0.3Vpp/75Ω (sync) or 1Vpp/75Ω max (color bar); 1 balanced stereo audio on 2 XLR connectors, 12dBu max; 1 unbalanced stereo audio on 2 RCA connectors, 6dBu max; 2 AES/EBU digital audio on XLR connectors, 0dBFS max; 2 AES−3id (75Ω) digital audio on BNC connectors, 0dBFS max.
VIDEO STANDARDS: PAL, NTSC.
COLOR BAR: 8 selectable patterns.
STABILITY: 1ppm.
S/N RATIO: Video: >73dB (black burst); Audio: >89dB.
DIGITIZATION: Video: 10 bits, 27MHz; Audio: 20 bits, 48kHz.
CONTROLS: Video: black burst or test signal configuration; Audio: frequency out: 10Hz to 20kHz; audio analog range: 31dBu; audio digital range: 31dBFS; each channel may be set to silent; Control via front panel (OSD) and RS−232; Buttons for genlock, panel lock, input termination.
INDICATORS: Multi−character display on the front panel.
POWER CONSUMPTION: 100−240V AC, 50/60Hz, 10VA.
19" x 7" x 1U W, D, H, rack mountable.
WEIGHT: 2.5kg (5.5lbs) approx.
