Kramer FC-49 DVI and Audio to HDMI Format Converter

Kramer FC-49 DVI and Audio to HDMI Format Converter

The FC−49 is a high−quality format converter and embedder for DVI and audio signals. It converts a DVI signal and embeds an unbalanced stereo, S/PDIF or TOSLINK® audio signal to an HDMI output.

Features:

• Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
• HDCP Compliant.
• HDTV Compatible.
• Auto Format Detection - Digital RGB or YPbPr.
• I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.

Specifications:

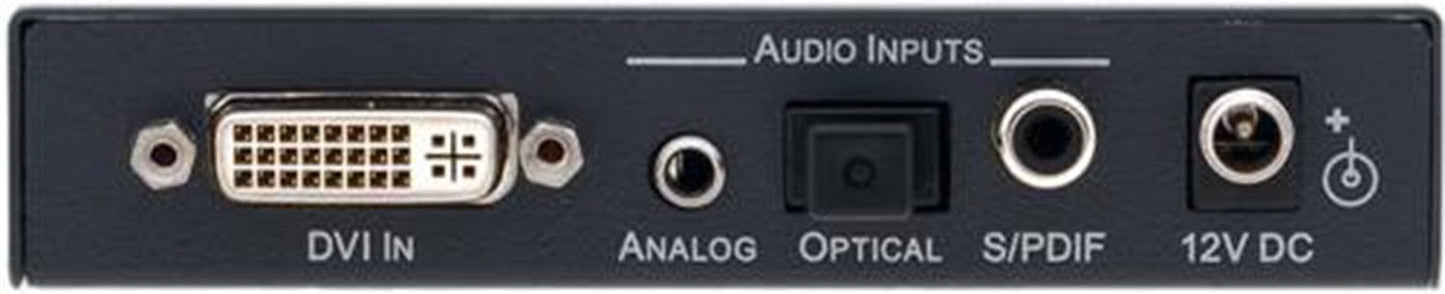

• Inputs: 1 DVI-D on a DVI I connector, 1.2Vpp on a Molex 24-pin female connector; DDC signal 5Vpp (TTL); 1 S/PDIF on an RCA connector (stereo audio and not 5.1 channel audio); 1 unbalanced stereo audio on a 3.5mm mini jack, 1.5Vpp max.; 1 TOSLINK® optical connector.
• Output: HDMI connector.
• Compliance with HDMI Standards: Supports DVI 1.0, HDMI, and HDCP.
• Max.Data Rate: 4.95Gbps (1.65Gbps per graphic channel), UXGA, 1080p.
• TOSLINK Sample Rate: 44.1kHz and 48kHz.
• Controls: EDID button.
• Indicator LEDS: ON, IN, OUT.
• Power Consumption: 12V DC, 400mA.
• Operating Temperature: 0° to +40°C (32° to 104°F).
• Storage Temperature: -40° to +70°C (-40° to 158°F).
• Humidity: 10% to 90%, RHL non-condensing.
• Included Accessories: Power supply, bracket installation kit.
• Options: RK-3T 19" rack mount.
• Product Dimensions: 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
• Product Weight: 0.0kg (0.0lbs) approx.
• Shipping Dimensions: 15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
• Shipping Weight: 0.6kg (1.2lbs) approx.
