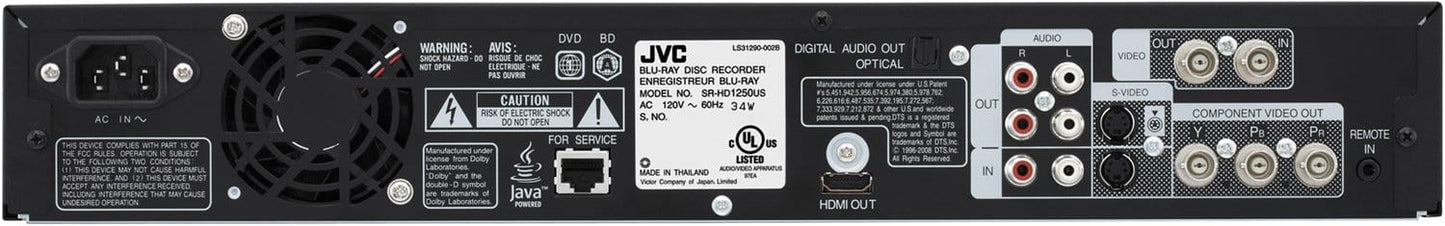

JVC SRHD1250US Blu-Ray and Hard Drive 250GB Recorder
Record and author compliant, professional Blu-ray™ discs without a PC with this all-in-one HD combo deck. Recordings from a camcorder can be easily transferred to a high definition disc, or down-converted and recorded onto a standard DVD. Copying unprotected DVD and Blu-ray™ discs is a simple process with a built-in duplication function. USB 2.0 and i.Link connectors, combined with an SD/SDHC memory card slot provide an interface to most SD and HD digital camcorders.
Features:
- Built-in professional Blu-ray™ Recorder
- Internal 250GB hard disk for editing, duplicating
- Create professional BDMV (with menu) or BDAV format discs
- Stores up to 24 hours of HD (AE mode using dual-layer 50GB disc)
- Supports BD-R or BD-RE (erasable) Blu-ray™ discs.
- Authors discs with auto-start or repeat playback
- Digital and analog inputs for wide compatibility
- USB — (connect to camcorder)
- SDHC card — (AVCHD camcorder)
- i.Link — (HDV, DV camcorder)
- Composite/S-Video input — (Analog SD device, camcorder, etc.)
- Flexible monitoring via HDMI, component output
Specifications:
- General:
- Power requirement: AC 120 V, 60 Hz
- Power consumption on/off: 34 W/3.0 W
- Temperature:
- Operating: 41°F to 95°F (5°C to 35°C)
- Storage: -4°F to 140°F (-20°C to 60°C)
- Operating position: Horizontal only
- Dimensions (W x H x D): 17-1/10" x 2-6/8" x 13-13/16" (435 mm x 70 mm x 351 mm)
- Weight: 11.0 lbs. (5.0 kg)
- Input and Output:
- Video input/output: 1 Vp-p, 75 (BNC)
- Audio input/output: 2Vrms (pin jack)
- S-video input/output: Y: 1.0 Vp-p, 75 , C: 0.286 Vp-p, 75
- DV input: 4-pin for DV, HDV IN
- Remote input: 3.5 mm diameter jack
- Component video output:
- Y: 1.0 Vp-p, 75
- CB/CR, PB/PR: 0.7 Vp-p, 75
- HDMI output: 19-pin type A (Deep Color, x.v.Color, Ver.1.3a)
- USB terminal: USB2.0
- Digital Audio Output: EIAJ Optical (Toslink)
- SD Memory Card:
- Compatible SD memory card: SD, SDHC
- HDD Deck:
- Storage capacity: 250GB
- Video recording compression system: MPEG-2 (VBR), H.264/AVC
- Audio recording system: Dolby Digital (2ch), Linear PCM (2ch, XP mode only)
- BD/DVD Deck:
- Video recording compression system: MPEG-2 (CBR/VBR), H.264/AVC
- Audio recording system: Dolby Digital (2ch), Linear PCM (2ch, XP mode only)
- Region code:
- BD: Region A
- DVD: #1
- USB — (connect to camcorder)
- SDHC card — (AVCHD camcorder)
- i.Link — (HDV, DV camcorder)
- Composite/S-Video input — (Analog SD device, camcorder, etc.)
- General:
- Power requirement: AC 120 V, 60 Hz
- Power consumption on/off: 34 W/3.0 W
- Temperature:
- Operating: 41°F to 95°F (5°C to 35°C)
- Storage: -4°F to 140°F (-20°C to 60°C)
- Operating position: Horizontal only
- Dimensions (W x H x D): 17-1/10" x 2-6/8" x 13-13/16" (435 mm x 70 mm x 351 mm)
- Weight: 11.0 lbs. (5.0 kg)
- Input and Output:
- Video input/output: 1 Vp-p, 75 (BNC)
- Audio input/output: 2Vrms (pin jack)
- S-video input/output: Y: 1.0 Vp-p, 75 , C: 0.286 Vp-p, 75
- DV input: 4-pin for DV, HDV IN
- Remote input: 3.5 mm diameter jack
- Component video output:
- Y: 1.0 Vp-p, 75
- CB/CR, PB/PR: 0.7 Vp-p, 75
- HDMI output: 19-pin type A (Deep Color, x.v.Color, Ver.1.3a)
- USB terminal: USB2.0
- Digital Audio Output: EIAJ Optical (Toslink)
- SD Memory Card:
- Compatible SD memory card: SD, SDHC
- HDD Deck:
- Storage capacity: 250GB
- Video recording compression system: MPEG-2 (VBR), H.264/AVC
- Audio recording system: Dolby Digital (2ch), Linear PCM (2ch, XP mode only)
- BD/DVD Deck:
- Video recording compression system: MPEG-2 (CBR/VBR), H.264/AVC
- Audio recording system: Dolby Digital (2ch), Linear PCM (2ch, XP mode only)
- Region code:
- BD: Region A
- DVD: #1
