JBL VTX-B28-SB Suspension Bar for VTX B28 Speakers

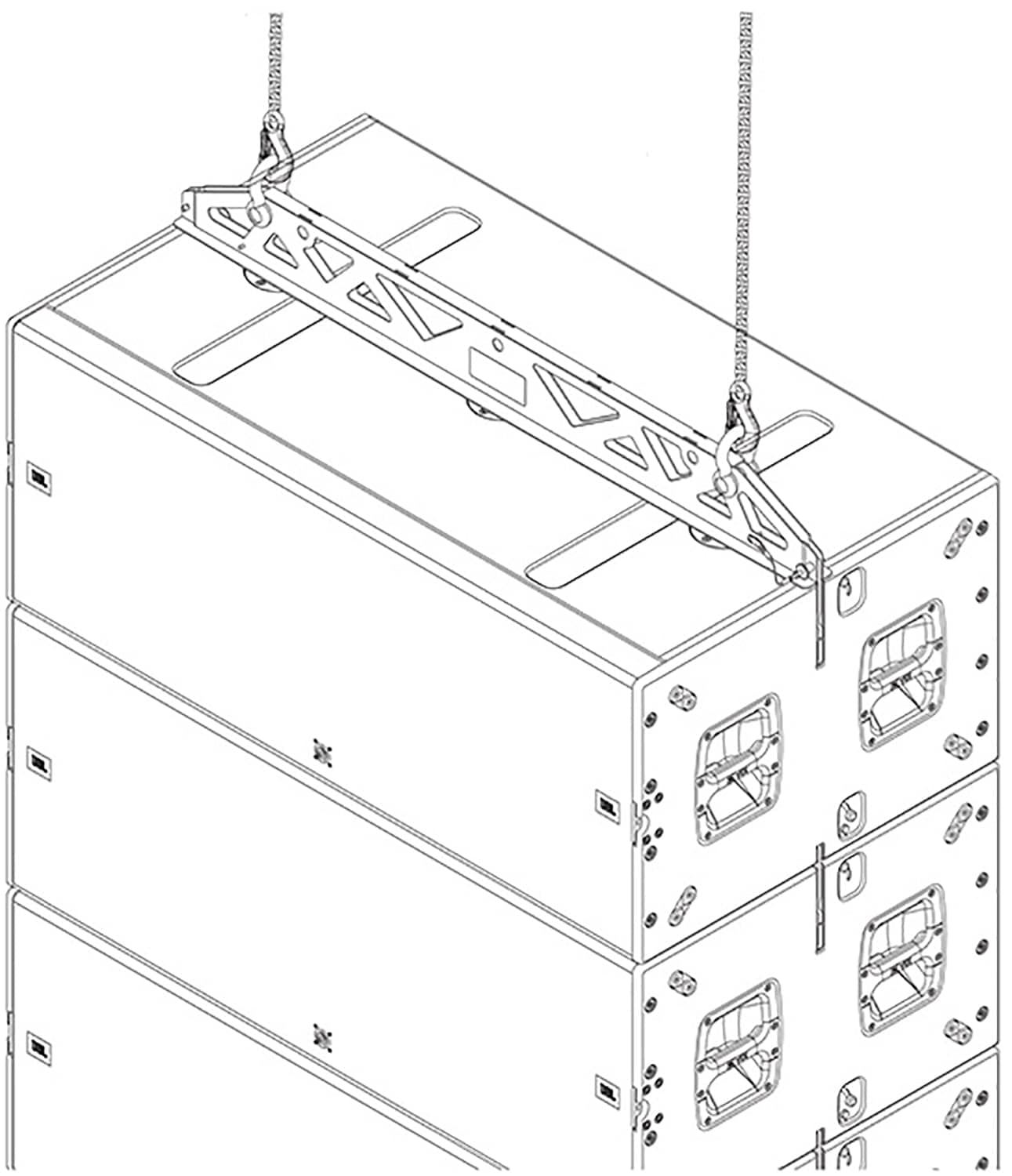

The VTX B28 SB is a lightweight suspension bar for use as an array frame when hanging VTX B28 subwoofer arrays. The suspension bar connects directly to the B28 left and right rigging bars and includes support for both single-point and dual-point configurations. Up to (16) VTX B28 cabinets can be suspended, and two 5/8-inch shackles are included. Several additional shackle point positions for secondary safety attachment cables are provided. The design is perfectly symmetrical and requires no specific orientation.
Features:
- Versatile suspension bar accessory for B28 subwoofer
- Single-point and dual-point support
- Secondary safety attachment points included
- Support for (16) B28 enclosures
- Lightweight, fully symmetric design
- Shackle Size: 5/8 inch
Specifications:
- Construction: High-grade steel with anti-corrosion coating
- Finish: Black Powder Coat
- Compatible Shackle Size: 5/8 inch
- Mechanical Limits:
- Maximum: (16) VTX B28
- Safe Limit: (16) VTX B28
- Dimensions (H x W x D): 133 mm x 1318 mm x 75 mm (5.2 in x 51.9 in x 3 in)
- Net Weight: 8.2 kg (18.2 lbs)
- Construction: High-grade steel with anti-corrosion coating
- Finish: Black Powder Coat
- Compatible Shackle Size: 5/8 inch
- Mechanical Limits:
- Maximum: (16) VTX B28
- Safe Limit: (16) VTX B28
- Dimensions (H x W x D): 133 mm x 1318 mm x 75 mm (5.2 in x 51.9 in x 3 in)
- Net Weight: 8.2 kg (18.2 lbs)
