JBL VTX-A8-AF-EB Extension Bar for A8 Array Frame

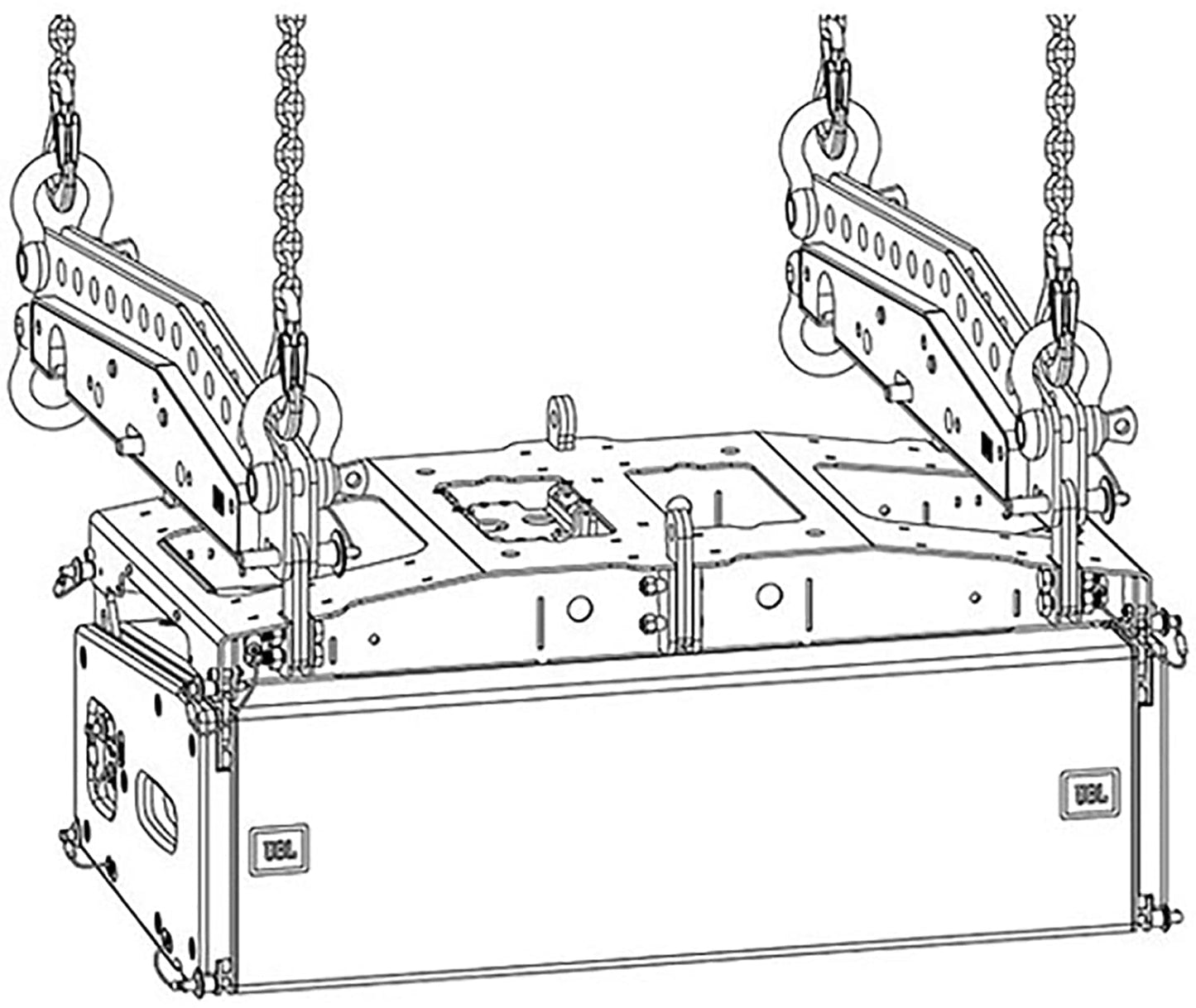

The VTX A8 AF EB extension bar was designed to operate in conjunction with the VTX A8 AF array frame to facilitate either single-point, two-point front-to-back or side-by-side suspension methods. The extension bar is compatible with 5/8-inch shackles and can be stored above the array frame during transportation. The extension bar can extend to the front or the rear of the frame to accommodate both up-tilt and down-tilt aiming options. Three connection points are available for attaching the extension bar to the array frame, allowing for precise control of shackle positioning for single-point applications. One VTX A8 AF EB extension bar is included with the purchase of an array frame and additional extension bars can be purchased to facilitate side-by-side suspension. Configurations and load conditions for using the VTX A8 AF EB can be obtained using the LAC-III software application.
Features:
- Extension Bar for use with VTX A8 AF
- Single, front-to-back or side-by-side pick point options
- Includes (3) shackles and mounting brackets
- Compatible shackle size: 5/8 in
Specifications:
- Construction: High-grade steel with anti-corrosion coating
- Finish: Black powder coat
- Compatible Shackle Size: 5/8 inch
- Mechanical Limits:
- Maximum: 24 x VTX A8 | 13 x VTX B18
- Safe Limit: 22 x VTX A8 | 10 x VTX B18
- Dimensions (H x W x D): 138 mm x 734 mm x 26 mm (5.4 in x 28.9 in x 1.0 in)
- Net Weight: 7.5 kg (16.5 lbs)
