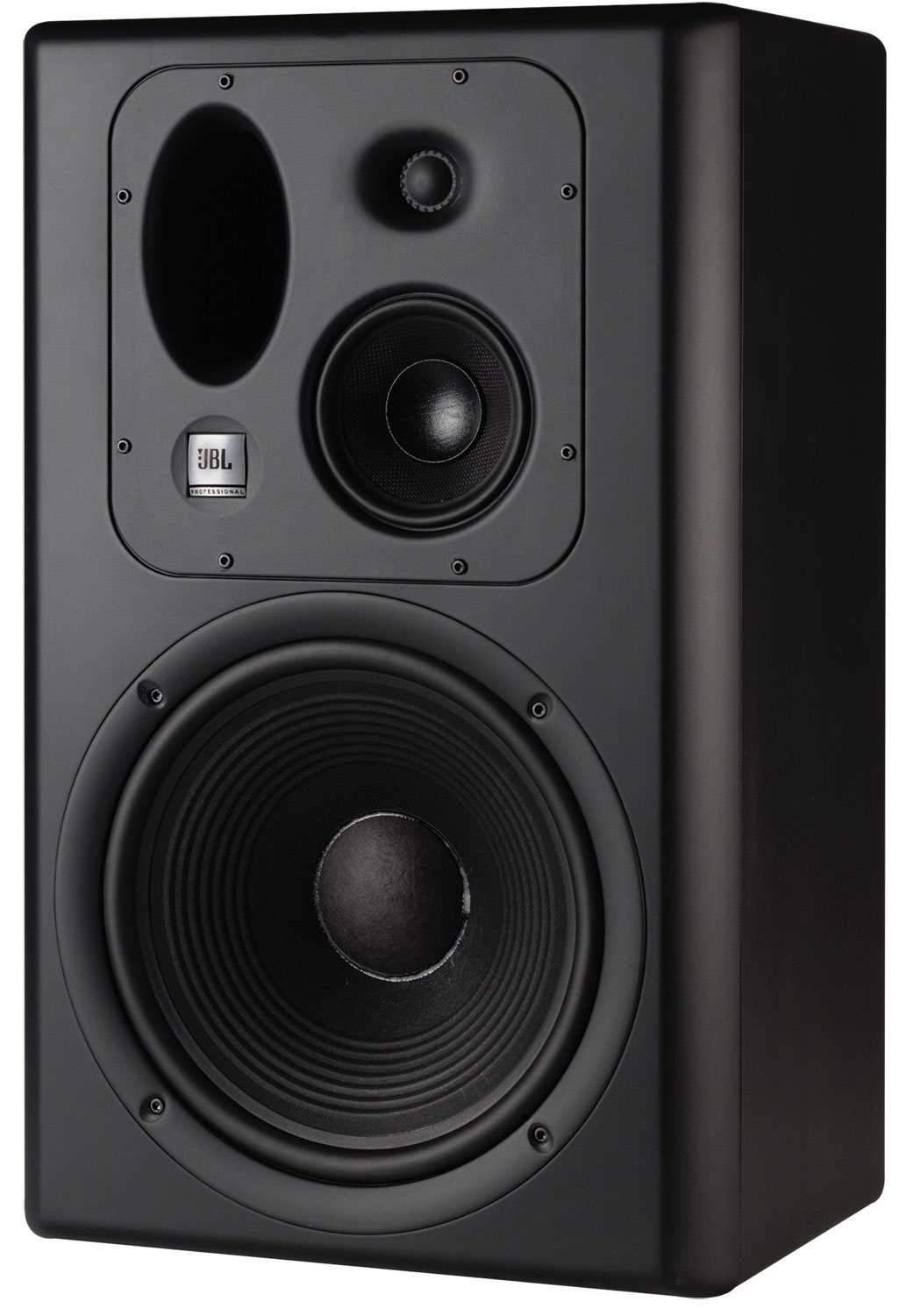

LSR6332 Linear Spatial Reference Studio Monitor System - Right
The LSR6332 incorporates a 12" Differential Drive dual coil woofer, 5" Kevlar midrange speaker and 1" titanium composite tweeter. THX pm3 Approved.
Features:
- Advanced Linear Spatial Reference design ensures flatter response at the mix position.
- Differential Drive technology with dynamic braking for extended low frequency response and low power compression.
- Neodymium midrange with 2" voice coil and Kevlar cone material for extended frequency response and low distortion.
- Titanium composite high frequency transducer with elliptical oblate spheroidal waveguide and damped polepiece.
- High-Density baffle for low enclosure resonance and stable inertial ground
- Linear Dynamics Aperture port design eliminates port turbulence and reduces port compression.
- Magnetically shielded for use near video monitors.
- Reinforced enclosure and convenient mounting points allow mounted installation.
- Midrange/high frequency sub-baffle may be rotated by user for horizontal or vertical orientation.
- Available as mirror image left and right models.
Specifications:
- Input Impedance: 4 ohm (Nominal)
- Anechoic Sensitivity: 93 dB/2.83 V/1 m (90 dB/ 1 W/ 1 m)
- Frequency Response: +1. -1.5 dB (60 Hz – 22 kHz)
- Low Frequency Extension: -3 dB: 54 Hz -10 dB: 35 Hz
- Enclosure Resonance Frequency: 33 Hz
- Long Term Maximum Power (IEC265-5): 200 W continuous average; 800 W peak
- Recommended Amplifier Power: 150 W - 1000 W (rating into 4-ohm load)
- High Frequency Control: 0 dB, -1 dB (2.5 to 20 kHz)
- Distortion, 96 dB SPL, 1 m:
- 2nd Harmonic (below 120 Hz): <1.5%
- 3rd Harmonic (below 120 Hz): <1%
- 2nd Harmonic (120 Hz to 20 kHz): <0.5%
- 3rd Harmonic (120 Hz to 20 kHz): <0.4%
- Distortion, 102 dB SPL, 1 m:
- 2nd Harmonic (below 120 Hz): <1.5%
- 3rd Harmonic (below 120 Hz): <1%
- 2nd Harmonic (80 Hz to 20kHz): <1%
- 3rd Harmonic (80 Hz to 20kHz): <1%
- (<0.4%, 250 Hz - 20 kHz)
- Power Nonlinearity:
- 30 W (20 Hz to 20 kHz): <0.4 dB
- 100 W (20 Hz to 20 kHz): <1.0 dB
- Low-Mid Frequency Crossover: 4th Order Acoustic Linkwitz-Riley: 250 Hz
- Mid-High Frequency Crossover: 4th Order Acoustic Linkwitz-Riley: 2.2 kHz
