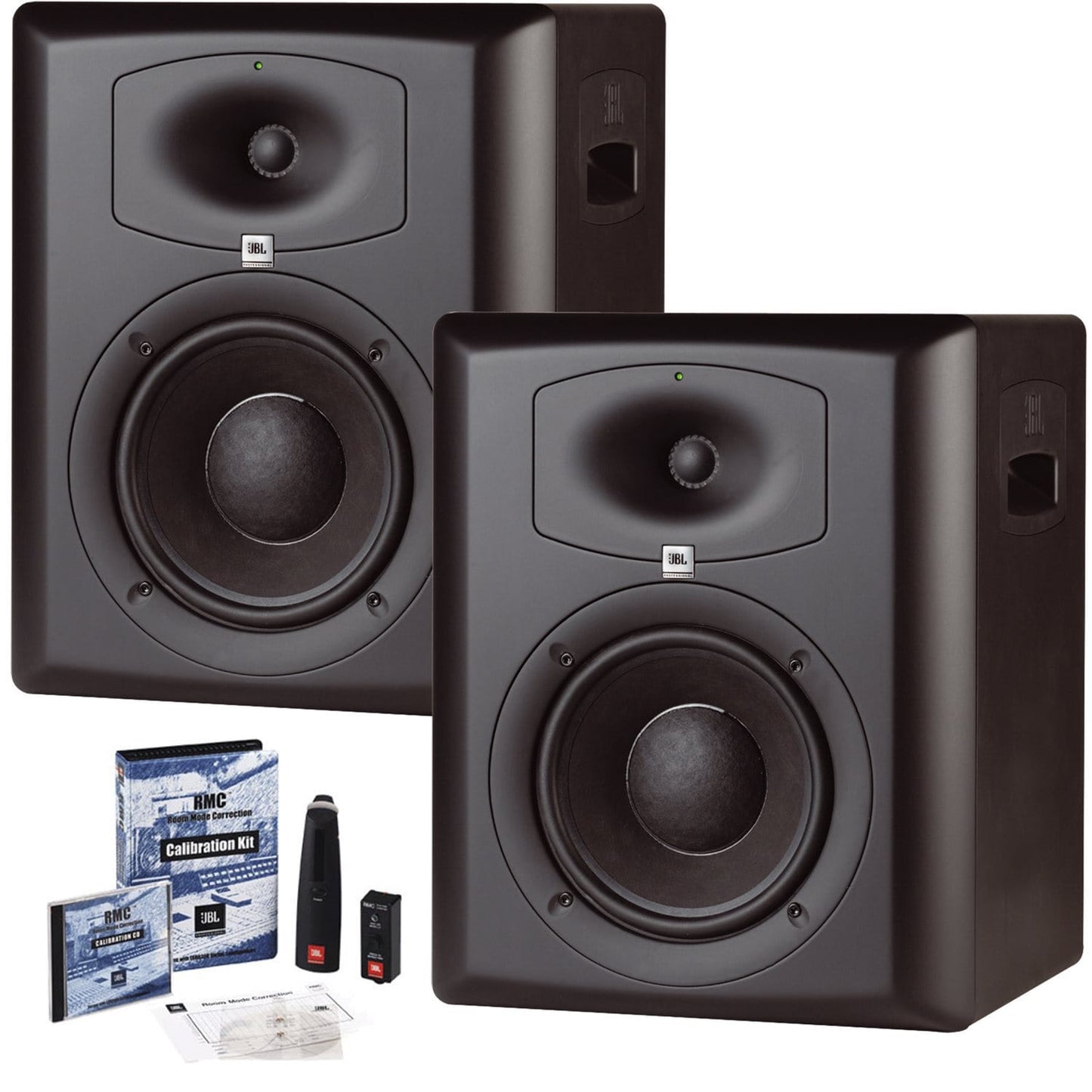

JBL LSR6328P-PAK 2xLSR6328P-PAK & Calibration Kit
This package includes (2) LSR6328P Studio Monitor and (1) Calibration Kit
The LSR6328P is the choice for stereo and multi-channel music and post audio applications where accuracy and high SPL are required. THX pm3 Approved. METAlliance Certified.
Features:- Advanced Linear Spatial Reference design ensures flatter-off-axis response for greater clarity at the mix position.
- RMC Room Mode Correction provides electronic control of room modes. User measurement and calibration kit available.
- Differential Drive technology with dynamic braking for extended low frequency response and minimal power compression.
- Integrated bi-amplification with factory calibrated sensitivities.
- Titanium composite high frequency transducer with Elliptical Oblate Spheroidal waveguide for precise pattern control.
- Magnetically shielded high frequency transducer minimizes interference when used in close proximity to video monitors.
- High-density baffle for low enclosure resonance.
- Linear Dynamics Aperture port design eliminates port turbulence and reduces port compression.
- Reinforced enclosure and convenient mounting points for mounted installation.
- Integral handles facilitate ease of positioning.
- Frequency Response: 50 Hz - 20 kHz (+1, -1.5 dB)
- Enclosure Resonance Frequency: 38 Hz
- Low Frequency: User controls
- Extension: set to default
- -3 dB: 46 Hz
- 10 dB: 36 Hz
- Low-High Frequency Crossover: 1.7 kHz 6th-order acoustic Linkwitz-Riley
- Distortion, 96 dB SPL, 1m: N/A
- Mid-High Frequency (120 Hz - 20 kHz): N/A
- 2nd Harmonic: <0.6%
- 3rd Harmonic: <1%
- Maximum SPL (80 Hz - 20 kHz): >108 dB SPL/1m
- Maximum Peak SPL (80 Hz - 20 kHz): >111 dB SPL/1m
- Signal Input: Neutrik "Combi" XLR-1/4-in tip-ring-sleeve balanced or unbalanced positive voltage applied to XLR pin 2 (1/4" tip) produces outward woofer motion
- +4 dBu/+8 dBu: 96 dB SPL/1 m
- -10 dBV: 96 dB SPL/1 m
- AC Input Voltage: 100/240 VAC
- AC Input Connector: IEC
- Long-Term Maximum System Power: 220 W (IEC265-5)
- Self-Generated Noise Level:
A JBL first, the RMC Room Mode Correction system is included in the LSR6300 and LSR4300 Series models. The RMC system includes everything needed to analyze and compensate for low frequency problems providing exceptional accuracy at the mix position. Room modes or standing waves can mislead you give you a false impression of low frequency content in the mix. The LSR6300 RMC Calibration kit includes everything needed to identify room modes and set the LSR6300 series on-board parametric equalizer. This system dramatically improve low frequency performance at the mix position. JBL is first to supply a complete solution for identifying and overcoming the negative effect of room modes.
