JBL IVX-587480 Intellivox DSX280 HD Column Speaker with 16 Channel Class-D Amplifier (Amp at Bottom)
JBL IVX-587480 Intellivox DSX280 HD Column Speaker
The Intellivox-DSX280 HD is capable of providing a constant sound pressure level over a distance of up to 35 m, although a substantial extension of this range can be achieved in less demanding acoustical conditions. The twelve, custom designed, 4” loudspeakers and four discretely controlled, 1" dome tweeters are driven by a sixteen channel class-D amplifier, powered by a sophisticated switched mode power supply, all of which combine to ensure years of reliable operation.

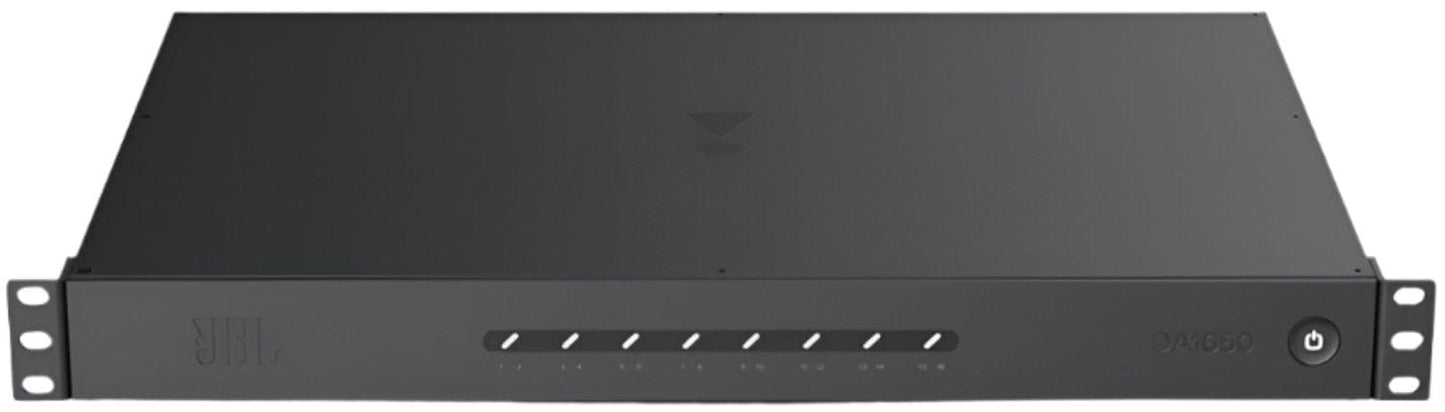

DA1650 16-channel distribution amplifier
Engineered to work with any JBL architectural loudspeaker to deliver a fantastic high-resolution audio experience throughout the home, the DA1650 provides 8 zones of audio in a compact 1U design, providing maximum performance while taking up minimal rack space. Further configurability is supported with bridging of its Class D stereo channels into even more powerful mono outputs when needed. Each zone can have an independent source or share an audio source across all zones using the global audio input. Expand zones sharing an audio source across multiple amplifiers using the global audio output.
Features:
- JBL IVX-587480 Intellivox DSX280 HD Column Speaker:
- Superb Speech Intelligibility
- Slim Unobtrusive Design
- Extended Frequency Response - up to 18kHz
- Higher Fidelity
- Wide Horizontal Dispersion
- Vertical Beam Shaping (DDS Technology)
- 32-bit floating point DSP
- Control of Vertical Beam Shaping
- Dual Line Inputs
- Volume Control
- Delay (up to 20 seconds)
- 8 band parametric EQ
- 8 user definable, password protected presets on board (recallable through third party control devices)
- AVC (Automatic Volume Control) via build-in ambient mic.
- Upgradeable firmware
- Network Ready
- Integral Surveillance
- Simulation via DDA, Catt-Acoustic, Odeon and EASE4.3
- DA1650 16-channel distribution amplifier:
- Compact form factor in a single rack space, flat-stackable design
- Bridgeable outputs for high-power requirements
- Over-current and thermal protection prevent potential speaker damage
- Three power mode control options include 12V trigger, audio sensing inputs, or always on
- Local and bus inputs, stereo/mono selection, and channel output level controls
Specifications:
- JBL IVX-587480 Intellivox DSX280 HD Column Speaker:
- Maximum SPL (30m):
- Continuous: 90 dB SPL
- Peak: 93 dB SPL
- Typical Maximum Throw: 20-35 m / 66-115 ft
- Drivers:
- 12 x 4” full range
- 4 x 10 mm ferrofluid cooled tweeter, coaxially mounted
- Dimensions:
- Height: 2800 mm
- Width: 134 mm
- Depth: 92 mm
- Weight: 25 kg / 55.1 lb
- Enclosure: Stainless steel (AISI 304) with epoxy coating
- Color:
- Enclosure and grill: RAL 9010 (white)
- Speaker baffle: RAL 9011 (black)
- Optional Accessories: Multiple optional accessories available. Please see spec sheet or your local dealer for more info.
- Coverage Angle: Vertical complex beam shaping (via software), wide horizontal dispersion (consult spec sheet for details)
- DA1650 16-channel distribution amplifier:
- Analog Audio Input: 16 x RCA (Single Ended)
- Stereo Analog Global Output (global input looped to global output): 2 x RCA (Single Ended)
- Speaker Output: Phoenix block connectors, accommodates up to 12 AWG wire
- 12V Trigger Control: 1 x 3.5mm (in), 1 x 3.5mm (out)
- Power: Standard IEC
- Global Input Select: 8 x 2-position dip switches
- Bridge/Mono Select: 8 x 2-position dip switches
- Power Mode Select: 1 x 3-position switch – always on, 12V, auto sense
- FTC Rated Output Power (20Hz–20kHz, 2 channels driven, 1% THD max, 8Ω): 50W
- Power:
- 1kHz, 20ms burst, 2 channels driven, 0.5% THD max
- Rated Power (8Ω): 50W
- Rated Power (4Ω): 110W
- Rated Power (8Ω Bridged, one zone driven): 185W
- Frequency Response: 20Hz-20kHz ±0.5dB, at 1/8th power, all loads
- THD+N (max), at rated power, 20-20kHz: <0.1%
- Signal to Noise Ratio (min), A-weight, 20-20kHz, analog input, 8 Ω mode: >100dB
- Crosstalk Between Any Zones, at 1/8th power: -80dB
- Minimum Output Impedance: 2.7Ω
- Analog Input Impedance: 20kΩ
- Signal Sense, Wake Up Level: 1.75 mVrms
- Max Undistorted Analog Input Signal: 4.6 Vrms
- Fan Noise, Maximum, 1/8 Power: 50 dBA SPL @ 1 meter
- Power Supply: Universal Mains 100–240VAC 50-60Hz
- Standby Power Consumption: Less than 0.5W
- Dimensions (H x W x D): 1.7” x 17.2” x 12.7” (43.7mm x 436.0mm x 323.0mm)
- Dimensions Including Feet (H x W x D): 1.75” x 17.2” x 12.7” (44.5mm x 436.0mm x 323.0mm)
- Net Weight: 4.5kg
- Superb Speech Intelligibility
- Slim Unobtrusive Design
- Extended Frequency Response - up to 18kHz
- Higher Fidelity
- Wide Horizontal Dispersion
- Vertical Beam Shaping (DDS Technology)
- 32-bit floating point DSP
- Control of Vertical Beam Shaping
- Dual Line Inputs
- Volume Control
- Delay (up to 20 seconds)
- 8 band parametric EQ
- 8 user definable, password protected presets on board (recallable through third party control devices)
- AVC (Automatic Volume Control) via build-in ambient mic.
- Upgradeable firmware
- Network Ready
- Integral Surveillance
- Simulation via DDA, Catt-Acoustic, Odeon and EASE4.3
- Compact form factor in a single rack space, flat-stackable design
- Bridgeable outputs for high-power requirements
- Over-current and thermal protection prevent potential speaker damage
- Three power mode control options include 12V trigger, audio sensing inputs, or always on
- Local and bus inputs, stereo/mono selection, and channel output level controls
- JBL IVX-587480 Intellivox DSX280 HD Column Speaker:
- Maximum SPL (30m):
- Continuous: 90 dB SPL
- Peak: 93 dB SPL
- Typical Maximum Throw: 20-35 m / 66-115 ft
- Drivers:
- 12 x 4” full range
- 4 x 10 mm ferrofluid cooled tweeter, coaxially mounted
- Dimensions:
- Height: 2800 mm
- Width: 134 mm
- Depth: 92 mm
- Weight: 25 kg / 55.1 lb
- Enclosure: Stainless steel (AISI 304) with epoxy coating
- Color:
- Enclosure and grill: RAL 9010 (white)
- Speaker baffle: RAL 9011 (black)
- Optional Accessories: Multiple optional accessories available. Please see spec sheet or your local dealer for more info.
- Coverage Angle: Vertical complex beam shaping (via software), wide horizontal dispersion (consult spec sheet for details)
- Maximum SPL (30m):
- DA1650 16-channel distribution amplifier:
- Analog Audio Input: 16 x RCA (Single Ended)
- Stereo Analog Global Output (global input looped to global output): 2 x RCA (Single Ended)
- Speaker Output: Phoenix block connectors, accommodates up to 12 AWG wire
- 12V Trigger Control: 1 x 3.5mm (in), 1 x 3.5mm (out)
- Power: Standard IEC
- Global Input Select: 8 x 2-position dip switches
- Bridge/Mono Select: 8 x 2-position dip switches
- Power Mode Select: 1 x 3-position switch – always on, 12V, auto sense
- FTC Rated Output Power (20Hz–20kHz, 2 channels driven, 1% THD max, 8Ω): 50W
- Power:
- 1kHz, 20ms burst, 2 channels driven, 0.5% THD max
- Rated Power (8Ω): 50W
- Rated Power (4Ω): 110W
- Rated Power (8Ω Bridged, one zone driven): 185W
- Frequency Response: 20Hz-20kHz ±0.5dB, at 1/8th power, all loads
- THD+N (max), at rated power, 20-20kHz: <0.1%
- Signal to Noise Ratio (min), A-weight, 20-20kHz, analog input, 8 Ω mode: >100dB
- Crosstalk Between Any Zones, at 1/8th power: -80dB
- Minimum Output Impedance: 2.7Ω
- Analog Input Impedance: 20kΩ
- Signal Sense, Wake Up Level: 1.75 mVrms
- Max Undistorted Analog Input Signal: 4.6 Vrms
- Fan Noise, Maximum, 1/8 Power: 50 dBA SPL @ 1 meter
- Power Supply: Universal Mains 100–240VAC 50-60Hz
- Standby Power Consumption: Less than 0.5W
- Dimensions (H x W x D): 1.7” x 17.2” x 12.7” (43.7mm x 436.0mm x 323.0mm)
- Dimensions Including Feet (H x W x D): 1.75” x 17.2” x 12.7” (44.5mm x 436.0mm x 323.0mm)
- Net Weight: 4.5kg
