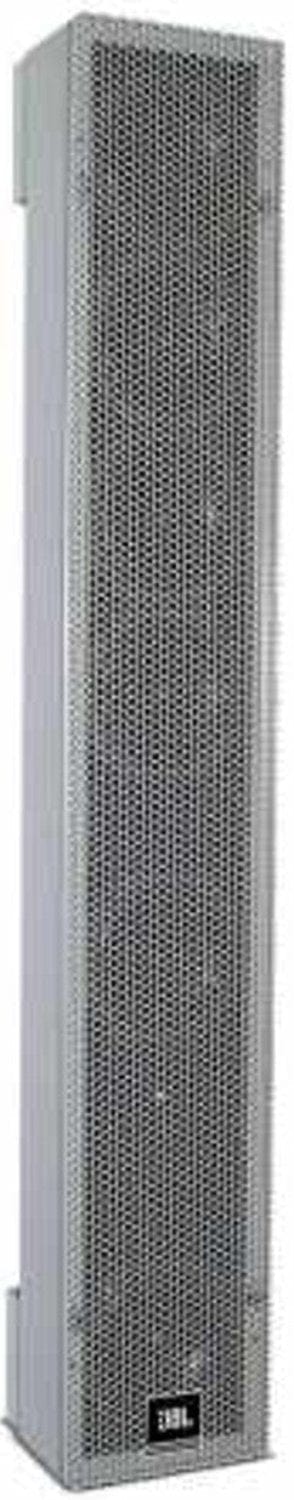

JBL IVX-587160 Intellivox DS500 Column Speaker with 16 Channel Class-D Amplifier (Amplifier at Bottom)
The JBL IVX-587160 Intellivox DS500, is the flagship of the slim line Intellivox DDS range and has been installed in high profile projects all around the world. It has proven to be a versatile and accurate solution for all venues requiring excellent speech intelligibility under highly reverberant conditions. With an acoustic length in excess of 4 m the IVX-587160 not only offers long throw capability but also greater control at lower frequencies. A single IVX-587160 is capable of covering an area up to 70 m while maintaining an even sound pressure level. The thirty-two, custom designed, 4” loudspeakers are driven by a sixteen-channel class-D amplifier, powered by a sophisticated switched mode power supply, all of which combine to ensure years of reliable operation. The loudspeakers themselves are arranged in accordance with our patented algorithm.
An extensive set of surveillance functions have also been implemented to meet the stringent demands of typical Voice Alarm (life safety) applications. The unit can be controlled using our proprietary Win Control software which offers user friendly control of the beam steering parameters, audio processing and surveillance features. The increased low-mid frequency control offered by the array makes the IVX-587160 suitable for easy and unobtrusive implementation in very large, highly reverberant and architecturally sensitive environments. The low frequency response of the system can be easily extended using a JBL sub-woofer system.
Features:
- Superb Speech Intelligibility
- Slim Unobtrusive Design
- Extended Frequency Response
- Wide Horizontal Dispersion
- Vertical Beam Shaping (DDS Technology)
- 32-bit floating point DSP
- Control of Vertical Beam Shaping
- Dual Line Inputs
- Volume Control
- Delay (up to 20 seconds)
Specifications:
- Maximum SPL (30m): Continuous: 97 dB SPL
- Peak: 100 dB SPL
- Typical Maximum Throw: 50-70 m / 164-230 ft
- Drivers: 32 x 4” full range
- Dimensions: Height- 4930mm x Width- 134mm x Depth- 92mm
- Weight : 44kg / 97lb
- Enclosure: Stainless steel (AISI 304) with epoxy coating
- Color: Enclosure and Grill: RAL 9010 (white)
- Speaker Baffle: RAL 9011 (black)
- Optional Accessories: Multiple optional accessories available.
- Coverage Angle: Vertical complex beam shaping, wide horizontal dispersion
- Maximum SPL (30m): Continuous: 97 dB SPL
- Peak: 100 dB SPL
- Typical Maximum Throw: 50-70 m / 164-230 ft
- Drivers: 32 x 4” full range
- Dimensions: Height- 4930mm x Width- 134mm x Depth- 92mm
- Weight : 44kg / 97lb
- Enclosure: Stainless steel (AISI 304) with epoxy coating
- Color: Enclosure and Grill: RAL 9010 (white)
- Speaker Baffle: RAL 9011 (black)
- Optional Accessories: Multiple optional accessories available.
- Coverage Angle: Vertical complex beam shaping, wide horizontal dispersion
