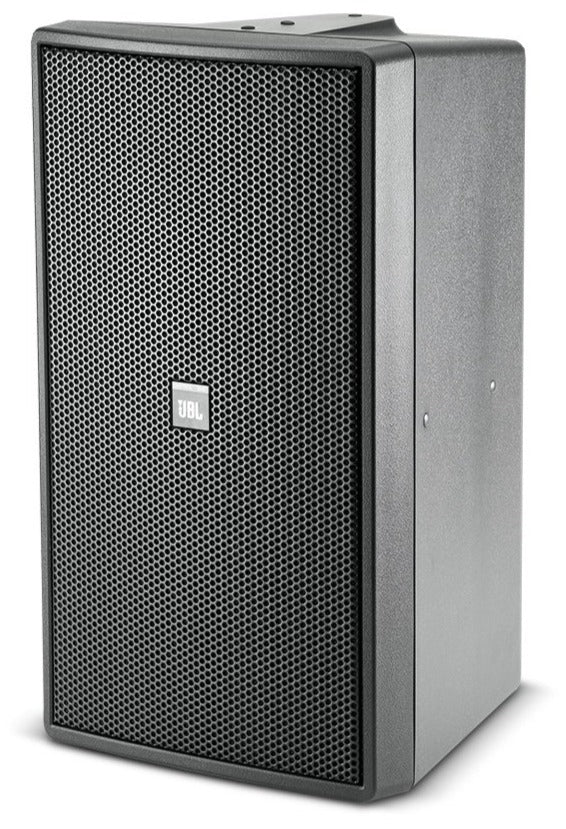

JBL CONTROL-29AV Passive Monitor Speaker
The Control® 29AV utilizes high power components, computer optimized horn and cabinet design and complex network to achieve smooth high fidelity performance, extended bandwidth and well-controlled defined coverage from a compact loudspeaker.
Features:
- Extended bandwidth, extremely smooth frequency response.
- 110° x 85° HF coverage, rotatable horn.
- 110 Watt transformer for 70V or 100V lines, with 8 ohm thru.
- SonicGuard overload protection.
- 200 mm (8") Kevlar cone woofer, 25 mm (1") titanium diaphragm compression driver.
- Includes InvisiBall mounting hardware, plus ten 6 mm attachment points for suspension and optional U-bracket.
- Sealed input panel cover and screw-down input terminals.
Specifications:
- Frequency Range (-10 dB): 40 Hz to 19 kHz
- Frequency Response (± 3 dB): 45 Hz to 18 kHz
- 100 Hr Power Capacity:
- 300 Watts Continuous Program Power
- 150 Watts Continuous Pink Noise
- Maximum SPL @ 1m: Short-Term: 120 dB; Long-Term: 114 dB
- Nominal Sensitivity: 91 dB, 1W @ 1 m (3.3 ft)
- Nominal Coverage Angle: 110° H x 85° V, rotatable
- Directivity Factor (Q): 7.2, averaged 500 Hz to 16 kHz
- Directivity Index (DI): 8.6 dB, averaged 500 Hz to 16 kHz
- Nominal Impedance: 8 ohms
- Minimum Impedance: 6.3 ohms @ 230 Hz
- Crossover Type: 3rd order High Pass, 2nd order Low Pass with impedance compensation, 2.5 kHz crossover frequency
- Transformer Taps:
- 70V: 110W, 55W, 28W & 14W
- 100V: 110W, 55W, & 28W
- Thru Position: 8 ohm nominal
- Transducers
- Low Frequency:200 (8 in) kevlar cone with pure butyl rubber surround, 50 mm (2 in) voicecoil on fiberglass former
- High Frequency:25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround
- Physical
- Enclosure Material: High impact polystyrene
- Grille: Thermoset composite coated steel
- Overload Protection: Full-Range power limiting to protect network and transducers. Servicable internal fuse to protect during exceptional overload conditions.
- Environmental: IEC 529 IP-X4 splashproof rating. Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray.
- Termination: Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5 mm2).
- Safety Agency Rating: Transformer is listed per UL1876.
- Colors: Black or white (-WH)
- Dimensions (H x W x D): 518 x 305 x 280 mm (20.3 x 12.0 x 11.0 in)
- Net Weight (ea): 12.2 kg (26.8 lbs)
- Shipping Weight (ea): 14.0 kg (30.8 lbs)
- Included Accessories: 1 pc MTC-PC2 input panel cover, InvisiBall mounting base, 6 mm x 260 mm InvisiBall Hex wrench.
