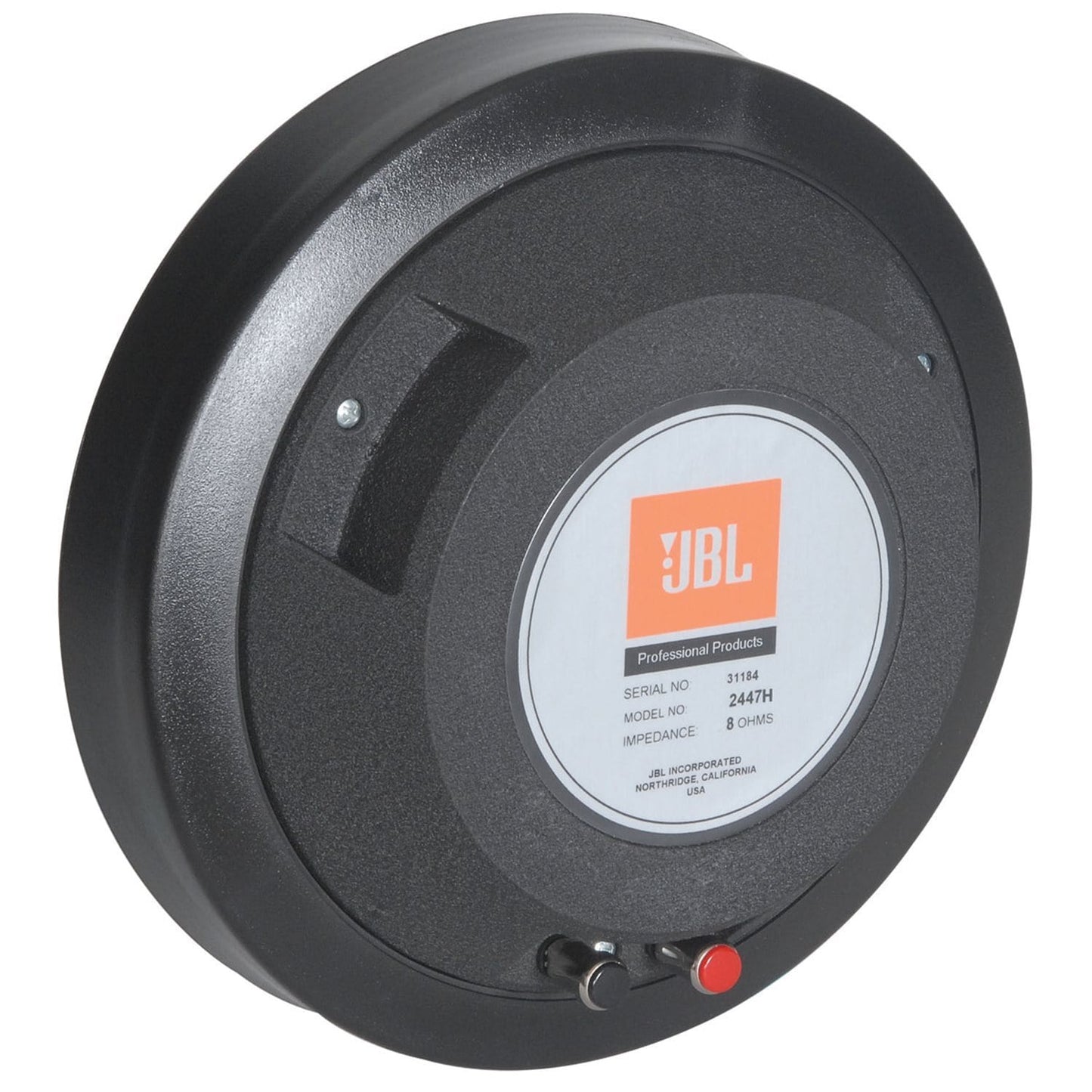

JBL 2447H 1 1/2In Compression Driver - 8 Ohms
The Model 2447H/J is a 38 mm(1.5) exit diameter addition toJBL's family of professional qualitycompression drivers. The 38 mm exitallows the Coherent Wave phasingplug to directly couple with OptimizedAperture Bi-Radial horns to provide lower distortion and bettercoverage control to 20 kHz than previous designs. In addition to improvingperformance the 38 mm design alsoreduces size and weight.
The Coherent Wave phasing plugstructure has four equal length passages to provide in-phase summationof diaphragm output at the 38 mmexit. This optimized configurationproduces coherent acoustical powerup to much higher frequencies thanmore conventional designs.
The diaphragm design includes JBL'sexclusive three-dimensional diamondpattern surround tuned to reducefatigue inducing stresses in the membrane and support structure. Thisprovides predictable normal resonance modes, and radial reinforcingribs increase diaphragm stiffness. Thisdiaphragm design combined with theCoherent Wave phasing plugincreases the 2447's output in the 5kHz to 20 kHz range.
High temperature voice coil former materials and adhesives enable the 2447H/J to handle high power levels overextended periods of time. The voice coils themselves areidentical to previous JBL models, so that impedance andnetwork matching will be the same. After manufacture, thefrequency response of each transducer is tested for conformity to JBL's rigid performance standards.
The model 2447H/J is ruggedly constructed to withstandthe rigors of both fixed installations and touring applications. All tolerances are held to the same high levels traditionally associated with JBL designs. The JBL manufacturingprocess permits the use of rim centered diaphragms forinstant interchangeability and ease of field service.
Features:
- 100 watts continuous program above 500 Hz
- 150 watts continuous program at 1 kHz and higher
- Coherent Wave phasing plug design for increased high frequency output
- 100 mm (4 in) pure titanium diaphragm with radial-rib topology
- 38 mm (1.5") throat exit diameter
- 100 mm (4 in) edgewound aluminum voice coil
Please see .pdf in the manual tab above more info.
