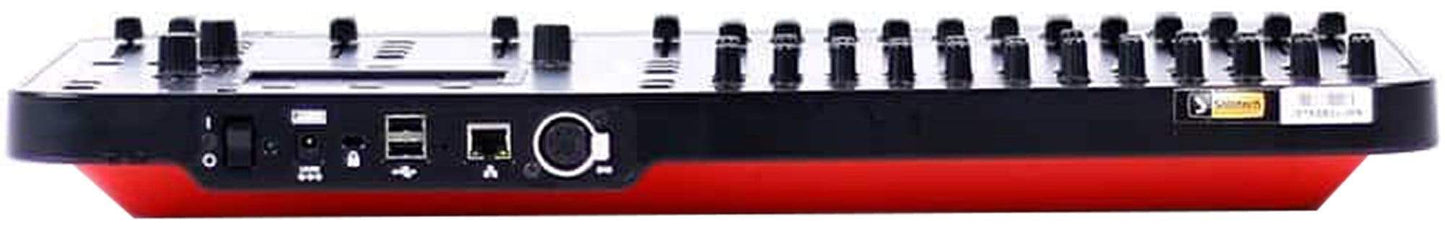

Jands Lighting Stage CL Lighting Console

Jands Lighting Stage CL Lighting Console

The Stage CL literally is made for LEDs. There were lots of people out there using LED lights that were only getting a fraction of the power and flexibility these lights offer. The Stage CL gives you all the manual controls and automation you need to get the most out of your LEDs. Best of all, it‘s so easy to use you don‘t need to know anything about lighting. It‘s simple really: if you use LED lights, the Stage CL is the console for you.

Features:

• 4.3” Touchscreen LCD (480 x 272px)
• Colour window with inbuilt patterns, chases and favorites
• Scene, Cuelist and Chase windows for editing & monitoring
• Extensive fixture library and inbuilt fixture editor
• Sound to light with built in microphone
• Auto-Pilot mode for unattended operation
• Save multiple show files and backup to USB flash drives

Specifications:

• Power supply : 12VDC +/-10% 2A
• Power consumption : 24W max
• Mains connector : 5.5/2.1mm coaxial DC power socket
• Flash Storage : 256MB
• Ambient temperature: 0°C – 40°C
• Touchscreen : 480×272 pixel TFT
• DMX512 : 5 pin AXR
• Ethernet : 100Mbit RJ45
• USB : Two Type A High Speed
• Dimensions : 520 x 290 x 80 mm
• Net / Shipping weight : 8 / 10 kg

Playback Controls:

• 12 Fixtures channel with fader, flash button, select button, colour output mimic, hue and saturation encoders
• 2 Fixtures channel pages
• Scene and Chase playback on Channel faders
• 6 Scene Pages
• Snapshot button to hold console output
• 4 Scene playback buttons with master level fader
• 4 Chase playback buttons with master level fader
• 1 Cuelist playback with Go, Pause, Back and Release buttons and master level fader
• Grand Master and Dead Black Out
• Fade time dial
• Chase tempo dial with tap sync button

Inputs and Outputs:

• 1 DMX output
• 1 Ethernet / Network port (compatible with sACN & Art-Net)
• 2 USB2 connectors
• 12v Power input
