Description

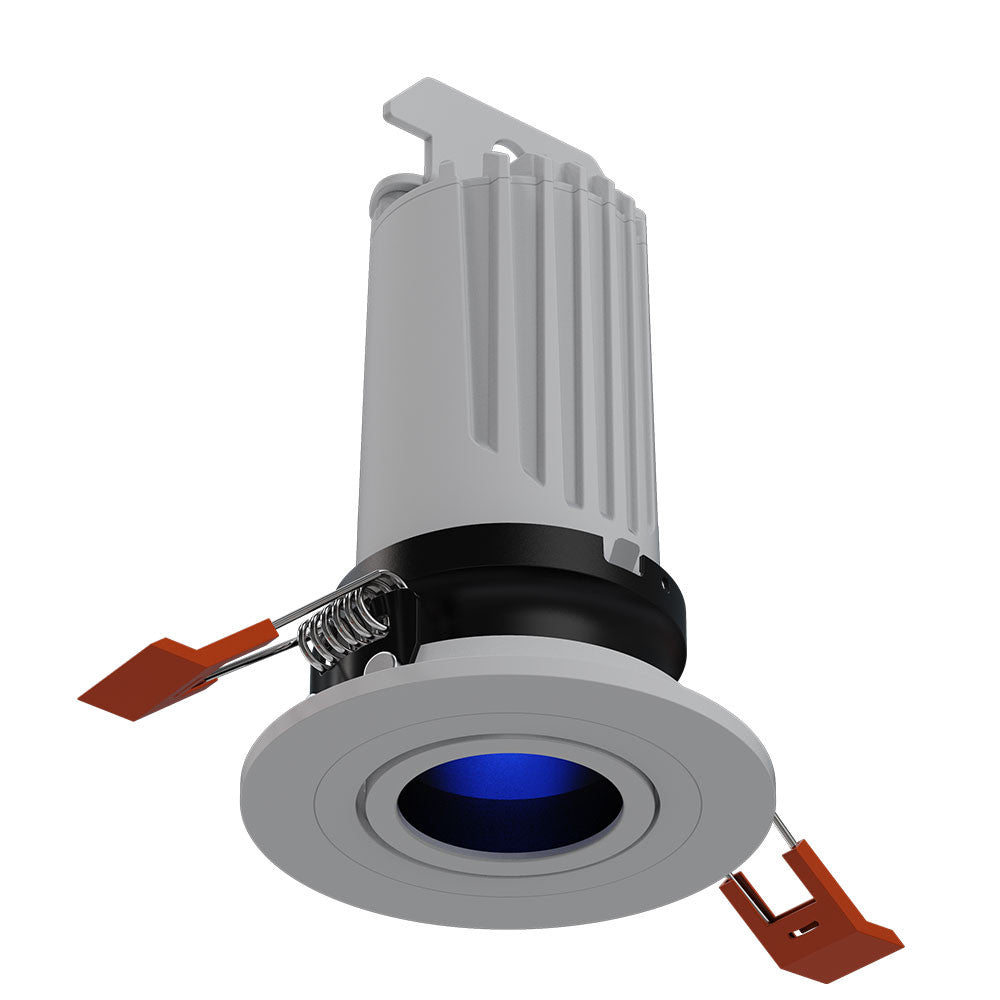

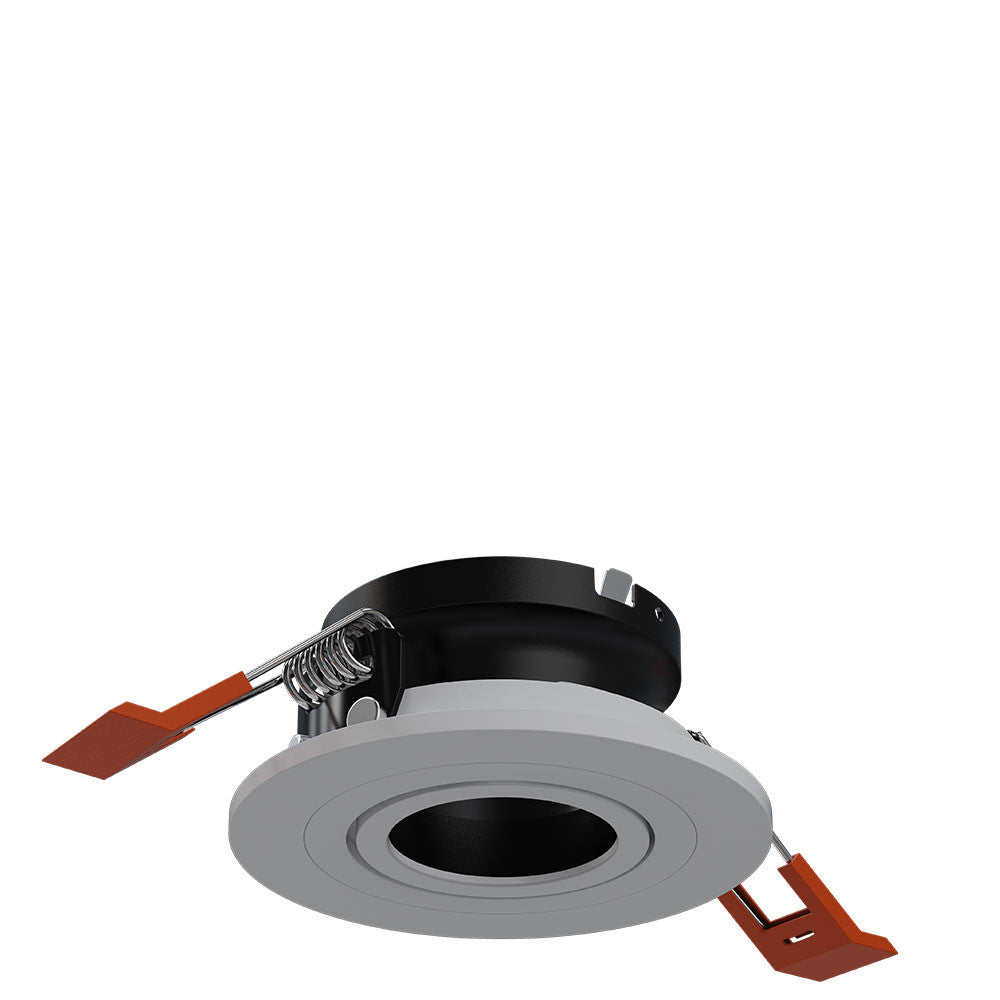

Iluminarc LOGICMR16TRIM LOGIC MR16 Trim Ring - White
The Logic MR16 Trim is trim ring mounting accessory for Logic MR16 downlights that includes an integrated anti-glare optic adapter. It features an adjustable gimbal tilt and is used to mount the Logic MR16 fixtures in recessed ceiling lighting applications, such as drywall and plywood surfaces up to 22 mm, or ¾ in.
Features
- The Logic MR16 Trim is trim ring mounting accessory for Logic MR16 downlights that includes an integrated anti-glare optic adapter. It features an adjustable gimbal tilt and is used to mount the Logic MR16 fixtures in recessed ceiling lighting applications, such as drywall and plywood surfaces up to 22 mm, or ¾ in
Specifications
Construction & Physical Specifications
- Cut Hole Diameter: 71.83 mm / 2.83 in
- Dimensions: 2.83 x 2.83 x 1.3 in (71.83 x 71.83 x 33 mm)
- Fixture Color: White
- Housing Material: Aluminum and steel
- Maximum Ceiling Thickness: 22 mm / 0.866 in
- Tilt Range: 40°
- Trim Diameter: 79 mm / 3.11 in
- Weight: 2.8 oz (79.38 g)
Thermal Specifications
Regulatory & Voluntary Qualification
- Certification Listings: CE/MET/FCC/RoHS
- Environment Details: All indoor permanent installations. Please refer to the User Manual for more detailed information on installation.
- Environment Locations: Dry
- Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
