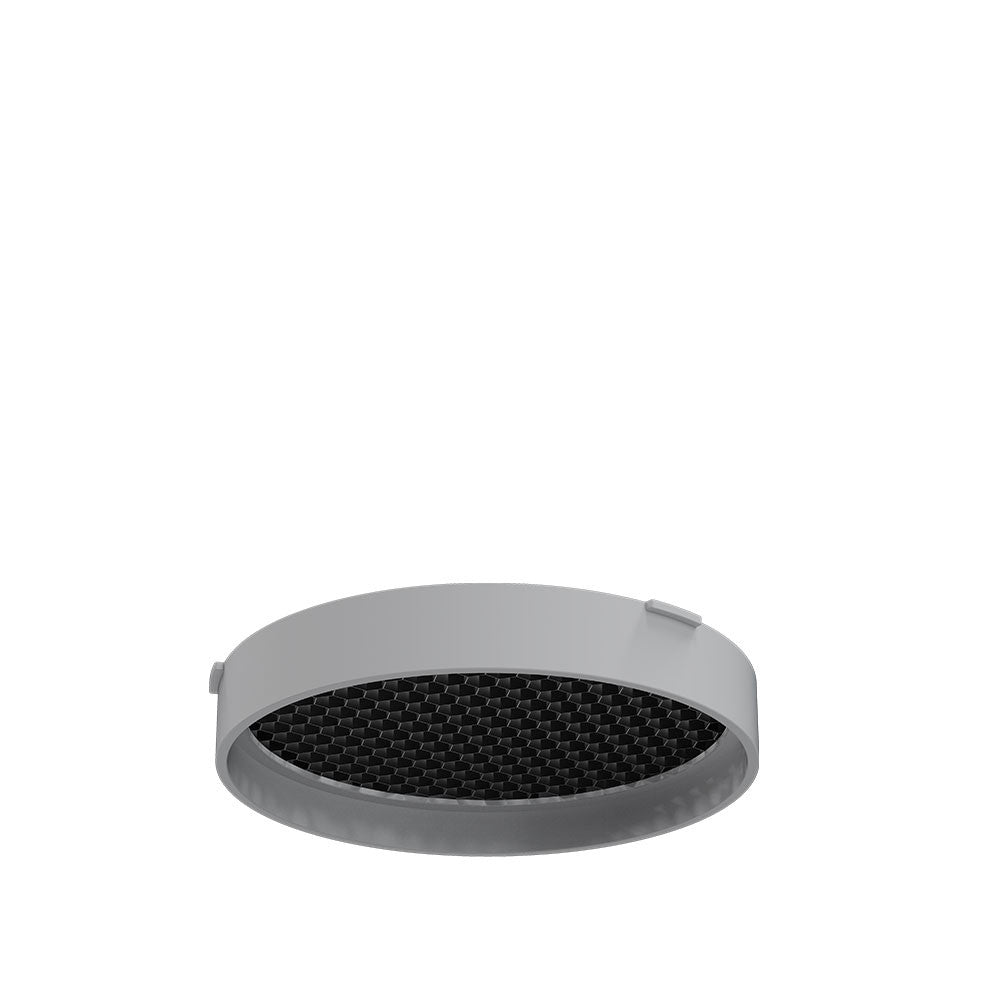

Iluminarc LOGICAR111HF LOGIC AR111 Honeycomb Filter

Iluminarc LOGICAR111HF LOGIC AR111 Honeycomb Filter

The Logic AR111 Honeycomb Filter (HF) is designed to work with Logic AR111 lighting fixtures. It attaches directly to the front of the lighting fixtures to reduce glare and is designed to work in combination with the Logic AR111 Trim.

Features

The Logic AR111 Honeycomb Filter (HF) is designed to work with Logic AR111 lighting fixtures. It attaches directly to the front of the lighting fixtures to reduce glare and is designed to work in combination with the Logic AR111 Trim.

Specifications

Construction & Physical Specifications

• Dimensions: 3.72 x 3.72 x 0.57 in (94.5 x 94.5 x 14.5 mm)
• Filter Inner Diameter: 82 mm / 3.228 in
• Filter Outer Diameter: 91.5 mm / 3.602 in
• Fixture Color: White
• Housing Material: Aluminum and steel
• Weight: 1.2 oz (34 g)

Thermal Specifications

• Cooling: Convection

Regulatory & Voluntary Qualification

• Certification Listings: CE/MET/FCC/RoHS
• Environment Details: All indoor permanent installations. Please refer to the User Manual for more detailed information on installation.
• Environment Locations: Dry
• Warranty: 36-month manufacturer’s limited warranty (for covered regions only)

Order Code

• LOGIC DOWN 4IN /AR111 HONEYCOMB FILTER: LOGICAR111HF
