- 4-in-1 RGBL Color Mixing
- 50,000 hour LED Lifespan
- Beam Angle: 6.7º, or change with optional Beam Filters
- Illuminance: 8,152 lux @ 5 m
- IP Rating: 67
- Integrated Yoke

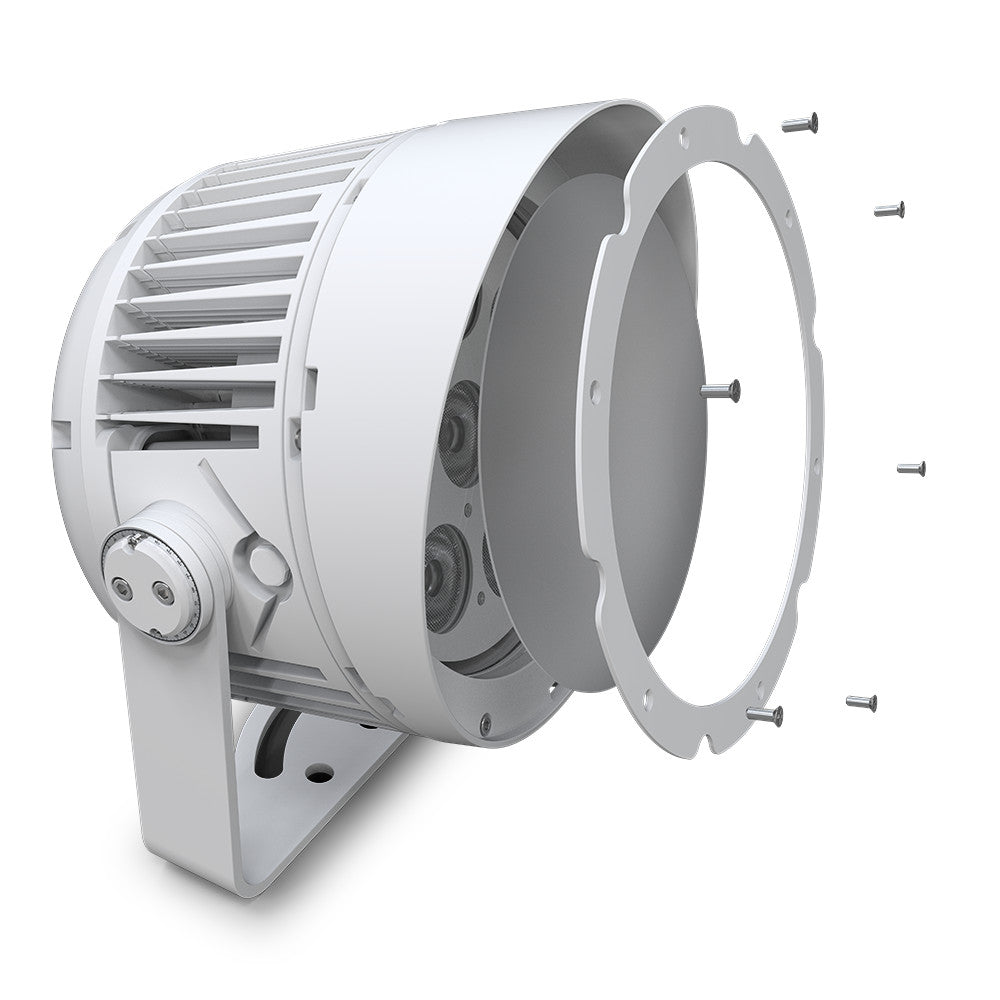

- Optional Beam Spread Filters can be applied without breaking IP Seal
Specifications
Light Source and Optical Specifications
- Light Source: 8 LED (quad-color RGBL) 20 W, (1 A)
- Light Source Life Expectancy: 50,000 hours based on LED manufacturer’s specifications
- Installed Optics: 6°
- Optional Optics: Medium Filter, Wide Filter, Very Wide, Asymmetrical Filter
- Beam Angle: Installed Optics: 6.7°, Medium Filter: 20°, Wide Filter: 31.9°, Very Wide Filter: 34.4°, Asymmetrical Filter: 35.2° x 12.1°
- Field Angle: Installed Optics: 11.9°, Medium Filter: 40.2°, Wide Filter: 64.4°, Very Wide Filter: 73.2°, Asymmetrical Filter: 65.7° x 29.5°
- Cutoff Angle: Installed Optics: 19.4°, Medium Filter: 60.9°, Wide Filter: 142.6°, Very Wide Filter: 153.8°, Asymmetrical Filter: 135.3° x 53.1°
- Lumens: Installed Optics: 4,228, Medium Filter: 3,751, Wide Filter: 3,144, Very Wide Filter: 2,983, Asymmetrical Filter: 3,525
- Iluminance: Installed Optics: 8,152 lux @ 5 m, Medium Filter: 812 lux @ 5 m, Wide Filter: 237 lux @ 5 m, Very Wide Filter: 171 lux @ 5 m, Asymmetrical Filter: 561 lux @ 5 m
- Efficacy At Full: 38 lm/W
- Color Temperature Presets: 1800K - 10000K
Construction & Physical Specifications
- Dimensions: 11.29 x 9.68 x 11.14 in (287 x 246 x 283 mm)
- Fixture Color: Off white, C5-M
- Housing Material: Cast aluminum
- Lens Cover: Impact resistant glass
- Mounting Options: Bracket, Hole Diameter 10M
- Weight: 18 lb (8.2 kg)
Control Specifications
- Control Protocol: USITT/DMX-512a/RDM
- Operating Modes: Selectable personalities
- Personalities:
- Solid (1-Channel)
- Arc 1 (3-Channel)
- Arc 1+D (4-Channel)
- Arc 2 (4-Channel)
- Arc 2+D (5-Channel)
- Arc Full (8-Channel)
- Special 2 (9-Channel)
- Data Connections:
- 6.25 ft (1.9 m) waterproof cable, bare wired to hardwired
- Fixture Setup: RDM Only
- Standalone Control: Yes
- Recommended Control Cable Specification: Gepco DLC224
Electrical System Specifications
- Electronic
- Input Voltage: 100 to 277 VAC, 50/60 Hz (auto-ranging)
- Power and Current:
- 81 W, 0.69 A @ 120 V, 60 Hz, PF: 0.98
- 76 W, 0.41 A @ 208 V, 60 Hz, PF: 0.92
- 76 W, 0.37 A @ 230 V, 50 Hz, PF: 0.90
- 77 W, 0.37 A @ 277 V, 60 Hz, PF: 0.84
- Power Supply: Electronic internal
- Recommended Power Cable: 14 AWG (3 x 2.08 mm2)
Thermal Specifications
- BTUs At Various Voltages:
- 276 BTUs/hr @ 120 V, 60 Hz
- 259 BTUs/hr @ 208 V, 60 Hz
- 259 BTUs/hr @ 230 V, 50 Hz
- 263 BTUs/hr @ 277 V, 50 Hz
- Cooling: Convection
- Maximum Surface Temperature: 167 °F (75 °C)
- Minimum Distance To Flammable Surface: .98 ft (0.3 m)
- Minimum Distance To Illuminated Surface: 3.28 ft (1 m)
- Operating Temperature Range: -40 °F to 113 °F (-40 °C to 45 °C)
- Startup Temperature Range: -4 °F to 113 °F (-20 °C to 45 °C)
Regulatory & Voluntary Qualification
- Environment Details: Outdoor/wet, with pressure equalizing M12 GORE valve. Please refer to the User Manual for more detailed information on installation.
- Environment Locations: Wet
- Impact Resistance Rating: IK10
- Installation Orientation: Any
- Vibration Rating: 3G
- Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
- Wind Load Rating: EPA: .512 ft²
Accessories
- Included: Filter Frame
- Optional: Medium filter, Wide filter, Very Wide, Asymmetrical Filter
- Required: RDM Device
