- 4-in-1 RGBL Color Mixing
- 50,000 hour LED Lifespan
- Beam angle: 6.4º, or change with optional Beam Filters
- Illuminance: 29,314 lux @ 5 m
- IP Rating: 67
- Integrated Yoke

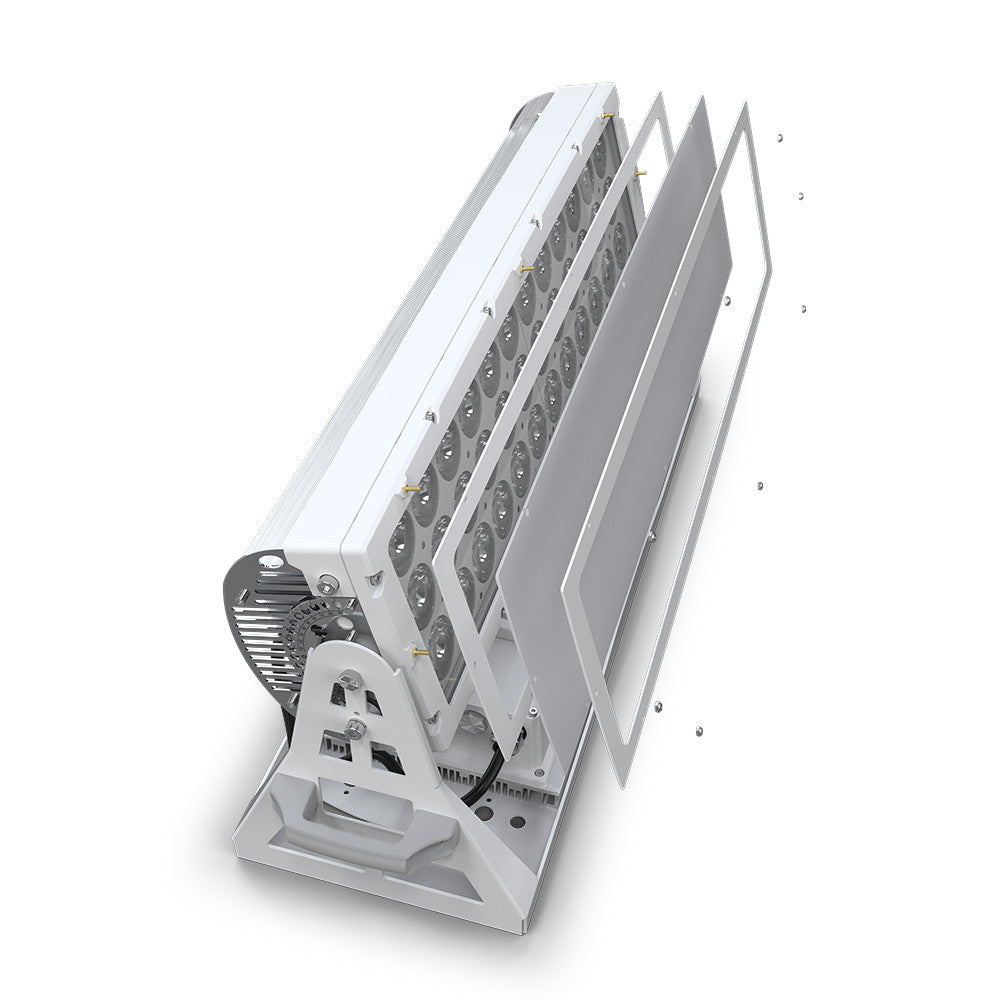

- Optional Beam Spread Filters can be applied without breaking IP Seal
Specifications
Light Source and Optical Specifications
- Light Source: 36 LED (quad-color RGBL) 20 W, (1 A)
- Light Source Life Expectancy: 50,000 hours based on LED manufacturer’s specifications
- Installed Optics: 6°
- Optional Optics: Medium Filter, Wide Filter, Very Wide, Asymmetrical Filter
- Beam Angle: Installed Optics: 6.4°, Medium Filter: 19.9°, Wide Filter: 32.6°, Very Wide Filter: 34.9°, Asymmetrical Filter: 37° x 12°
- Field Angle: Installed Optics: 11.7°, Medium Filter: 41.3°, Wide Filter: 65.3°, Very Wide Filter: 72.7°, Asymmetrical Filter: 68.1° x 29°
- Cutoff Angle: Installed Optics: 19.7°, Medium Filter: 61.5°, Wide Filter: 162.7°, Very Wide Filter: 168.4°, Asymmetrical Filter: 168.1° x 51.2°
- Lumens: Installed Optics: 18,228, Medium Filter: 16,623, Wide Filter: 14,211, Very Wide Filter: 13,612, Asymmetrical Filter: 16,970
- Iluminance: Installed Optics: 29,314 lux @ 5 m, Medium Filter: 3,316 lux @ 5 m, Wide Filter: 939 lux @ 5 m, Very Wide Filter: 699 lux @ 5 m, Asymmetrical Filter: 2,605 lux @ 5 m
- Efficacy At Full: 37 lm/W
- Color Temperature Presets: 1800K - 10000K
Construction & Physical Specifications
- Dimensions: 32.4 x 9.92 x 15 in (824 x 252 x 381 mm)
- Fixture Color: Off white, C5-M
- Housing Material: Cast aluminum
- Lens Cover: Impact resistant glass
- Mounting Options: Bracket, hole diameter: 13M
- Weight: 69 lb (31.3 kg)
Control Specifications
- Control Protocol: USITT/DMX-512a/RDM
- Operating Modes: Selectable personalities
- Personalities:
- Solid (1-Channel)
- Arc 1 (3-Channel)
- Arc 1+D (4-Channel)
- Arc 2 (4-Channel)
- Arc 2+D (5-Channel)
- Arc Full (8-Channel)
- Special 1 (19-Channel)
- Special 2 (9-Channel)
- Data Connections:
- 6.25 ft (1.9 m) waterproof cable, bare wired to hardwired
- Fixture Setup: RDM Only
- Standalone Control: Yes
- Recommended Control Cable Specification: Gepco DLC224
Electrical System Specifications
- Electronic
- Input Voltage: 100 to 277 VAC, 50/60 Hz (auto-ranging)
- Power and Current:
- 463 W, 3.89 A @ 120 V, 60 Hz PF: 0.99
- 451 W, 2.22 A @ 208 V, 60 Hz PF: 0.97
- 447 W, 2.00 A @ 230 V, 50 Hz PF: 0.97
- 450 W, 1.73 A @ 277 V, 60 Hz PF: 0.95
- Power Supply: Electronic internal
- Recommended Power Cable: 14 AWG (3x 2.08 mm2)
Thermal Specifications
- BTUs At Various Voltages:
- 1,579 BTUs/hr @ 120 V, 60 Hz
- 1,538 BTUs/hr @ 208 V, 60 Hz
- 1,525 BTUs/hr @ 230 V, 50 Hz
- 1,535 BTUs/hr @ 277 V, 50 Hz
- Cooling: Convection
- Maximum Surface Temperature: 167 °F (75 °C)
- Minimum Distance To Flammable Surface: .98 ft (0.3 m)
- Minimum Distance To Illuminated Surface: 3.28 ft (1 m)
- Operating Temperature Range: -40 °F to 113 °F (-40 °C to 45 °C)
- Startup Temperature Range: -4 °F to 113 °F (-20 °C to 45 °C)
Regulatory & Voluntary Qualification
- Environment Details: Outdoor/wet, with pressure equalizing M12 GORE valve. Please refer to the User Manual for more detailed information on installation.
- Environment Locations: Wet
- Impact Resistance Rating: IK10
- Installation Orientation: Any
- Vibration Rating: 3G
- Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
- Wind Load Rating: EPA: 1.819 ft²
Accessories
- Included: Filter Frame
- Optional: Medium filter, Wide filter, Very Wide, Asymmetrical Filter
- Required: RDM Device
